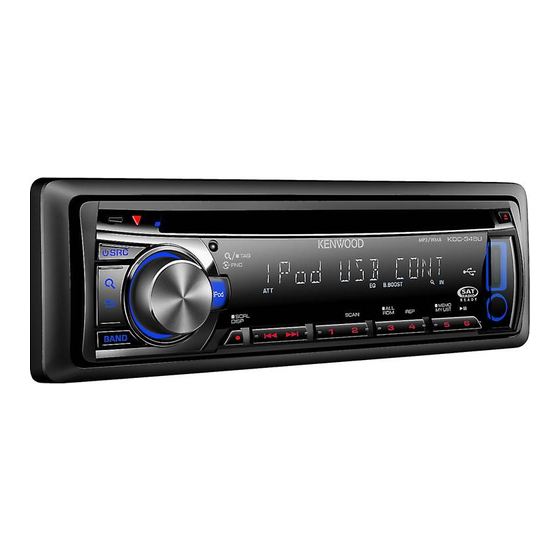

Kenwood KDC-4751SD Service Manual

CD RECEIVER
KDC-348U/4751SD
KDC-BT41U/BT648U
KDC-U4549/U4549SD/U549BT
KDC-X395/X695
SERVICE MANUAL
Tuner setting adjustment after replacing E2PROM
After replacing E2PROM (IC203 on X34), tuner setting adjustment is needed.
The adjustment is that to perform the "TUNER Setting Adjustment Mode" (Page 13).
KDC-4751SD : Panel assy (A64-5245-02)
KDC-BT648U : Panel assy (A64-5240-02)
KDC-U549BT : Panel assy (A64-5244-12)
KDC-X695 : Panel assy (A64-5241-12)
Mounting hardware assy
(J22-2049-03)
* Tap screw (2x8) * Screw set
(N80-2008-48) (N99-1757-15)
* Depends on the model. Refer to the parts list.
* DC cord
* DC cord
(E30-6934-05)
(E30-6933-05)
Lever
(D10-7139-04) x2
© 2011-4 PRINTED IN JA PAN
B53-0844-00 ( N ) 303
KDC-BT41U : Panel assy (A64-5242-12)
KDC-U4549SD : Panel assy (A64-5246-12)
TDF SPARE-PANEL
MAIN UNIT NAME TDF PARTS No.
KDC-348U Y33-3490-11
KDC-4751SD Y33-3482-73
KDC-BT41U
Y33-3482-71
KDC-BT648U Y33-3480-10
KDC-U4549 Y33-3490-21
KDC-U4549SD Y33-3480-22
KDC-U549BT Y33-3480-21
KDC-X395 Y33-3490-10
KDC-X695 Y33-3480-11
* Carrying case
(W01-xxxx-xx)
* Plastic cabinet assy
* Trim plate
(A02-2757-13)
(xxx-xxxx-xx)
This product uses Lead Free solder.
This product complies with the
TDF NAME
TDF-113D
TDF-4751SD
TDF-BT41U
TDF-BT116D
TDF-U4549
TDF-U4549SD
TDF-U549BT
TDF-113DX
TDF-116DX
* Remote controller assy (RC-405)
(A70-2104-05)
* Microphone (3m)
(W01-1768-15)
RoHS
directive for the European market.
PbF
