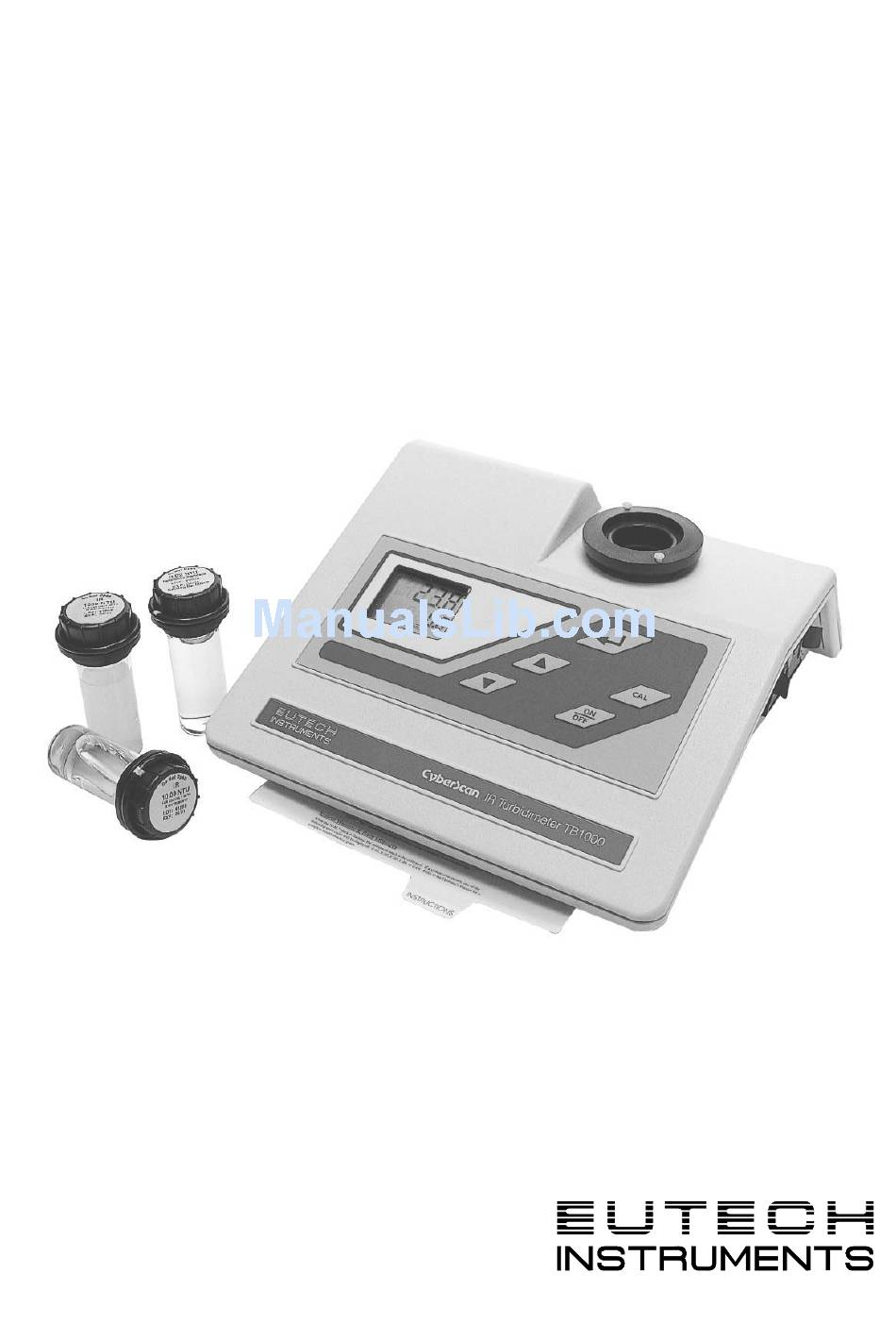

- Page 1 INSTRUCTION MANUAL CYBERSCAN TURBIDIMETER TB1000 BENCH TURBIDITY METER Technology Made Easy …...
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION UNPACKING THE INSTRUMENT Packing List of Contents Unpacking and Inspection of the Instrument and Accessories BECOMING FAMILIAR WITH THE INSTRUMENT ROUTINE OPERATION Grab Sample Measurement (Routine Measurement) Pour Through Sample Measurement (Optional Accessory) CALIBRATION PROCEDURES Indexing the Calibration Standard(s) Calibration Procedure USER SELECTABLE PARAMETERS Setting the Year... -
Page 4: Introduction
CyberScan TB1000 Introduction Thank you for purchasing Eutech Instruments’ CyberScan Turbidimeter TB1000 series White Light or Infrared turbidity meter (CyberScan TB1000 hereafter). These turbidity meters have been designed for simple and easy measurement of turbidity. This manual contains simple steps to follow to ensure that your instrument is operating properly. This material assumes that the user knows how to obtain representative samples of their process and has some familiarity with measuring the turbidity of samples. -
Page 5: Becoming Familiar With The Instrument
CyberScan TB1000 Becoming Familiar with The Instrument Figure 1 is a depiction of the front of the CyberScan Turbidity Series TB1000. Not shown in this picture is the RS- 232 serial printer port and 12V DC power plug connector, which are located on the back panel of the instrument. Figure 1: Front view of CyberScan Turbidity Meter TB1000 user interface... -
Page 6: Routine Operation
CyberScan TB1000 The ON/OFF key is used to turn the instrument on and off. The CAL key is used to enter, or exit, calibration mode. Both the keys are used to set numerical values and to scroll through lists. The ENTER key stores value on the screen and/or causes the turbidity data to be output to the printer port when pressed. -
Page 7: Pour Through Sample Measurement (Optional Accessory)
CyberScan TB1000. The Eutech Instruments calibration standards are more stable than Formazin and have a shelf life of 1 year. If you use the stable Eutech Instruments calibration standards to calibrate the instrument, review the expiration date to ensure that the standards have not expired. -
Page 8: Calibration Procedure
CyberScan TB1000 To index a calibration standard perform the following steps: Slowly rotate the calibration standard one complete revolution (360°). While rotating the standard, observe the CyberScan TB1000 and locate the cuvette position with the lowest turbidity reading. With the calibration standard positioned at the location having the lowest turbidity reading, install the Indexing Ring over the black light shield on the standard so that the pointer of the Ring aligns with the Indexing Pin. -
Page 9: User Selectable Parameters
CyberScan TB1000 User Selectable Parameters The CyberScan TB1000 provides you the ability to customize your instrument according to your needs at any time during normal operation. This section describes how you can customize your instrument. NOTE: You cannot access any of the user selectable parameters during calibration. Enter the customer selectable parameter section of CyberScan TB1000 by simultaneously pressing key while holding down the... -
Page 10: Setting The Printing Function
When these messages are observed and if you do not understand the instructions shown below, contact the Eutech Instruments Customer Services department to determine a resolution to the problem. An error message is indicated by the instrument when an "E-0X" is displayed on the lower row of the display. The CyberScan TB1000 has five error codes, each assessing a different component or system of components in the instrument. -
Page 11: Factory Default Parameters
If errors 1-4 are noted, turn the instrument off and then back on. Once the instrument is back on, re-calibrate the instrument. If the error persists, please contact the Eutech Instruments Customer Services Department to rectify the error. (See Section 9.0) If error 5 is noted, replace the lamp module with a spare lamp module. -
Page 12: Battery Replacement
CyberScan TB1000 Before replacing the lamp module ensure that the instrument is turned off. Once you have turned off the instrument, proceed with the following instructions: Remove the lamp module from the instrument by squeezing the two side tabs on the module inward while pulling the module out of the instrument. -
Page 13: Specifications
CyberScan TB1000 Specifications CyberScan TB1000 WL Conforms to specifications set forth in EPA method 180.1 (Nephelometric Method) § CyberScan TB1000 IR Conforms to specifications set forth in ISO 7027: Water Quality - Determination of Turbidity. Measurement Range 0-1000 NTU Accuracy ±2% of reading or ±0.01 NTU whichever is greater Repeatability <... -
Page 14: Accessories And Replacement Parts List
CyberScan TB1000 10 Accessories and Replacement Parts List Accessory or Replacement Part Order Code Number CyberScan TB1000 W Calibration Set with EC-TBDWCALKT EC-TBDW1000 CyberScan TB1000 IR Calibration Set with EC-TBDIRCALKT EC-TBDIR1000 Calibration kit set for EC-TBDW1000 (0.02 NTU, 10.0 NTU, 1000 NTU) EC-TBDWCALKT Calibration kit set for EC-TBDIR1000 (0.02 NTU, 10.0 NTU, 1000 NTU) EC-TBDIRCALKT... - Page 15 CyberScan TB1000 NOTES...
- Page 16 CyberScan TB1000 Eutech Instruments Pte Ltd. Blk 55 Ayer Rajah Crescent #04-16 Singapore 139949 Tel: (65) 778 6876 Fax: (65) 773 0836 E-mail: marketing@eutechinst.com Web-site: http://www.eutechinst.com...
