Read this quick-start manual first, and familiarize yourself with the basic
operation of the unit.
* The initial setup can be changed later. (See the user manual.)
This manual describes the following procedures:
1
Parts Installation

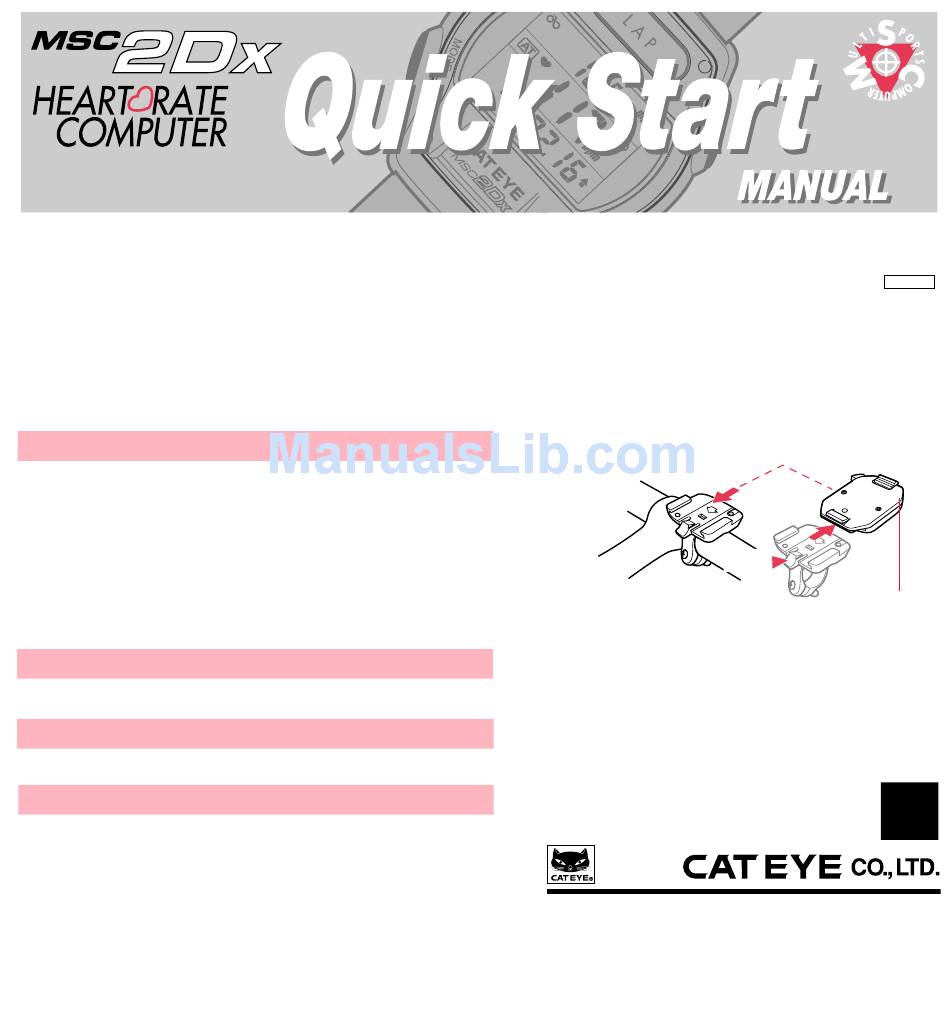

* If you already have CAT EYE Cyclocomputer (Model CC-
MT300, ED200, ST300 and AT100), you can use the
same bracket and sensor; so you do not need parts
installation. Just attach the 2Dx attachment on your
bracket.
2
Attaching Main Unit and Chest Belt
3
Setting up Main Unit
4
Other Important Features
For more detailed setup and operations, please read
the user manual.
