GENUINE PARTS

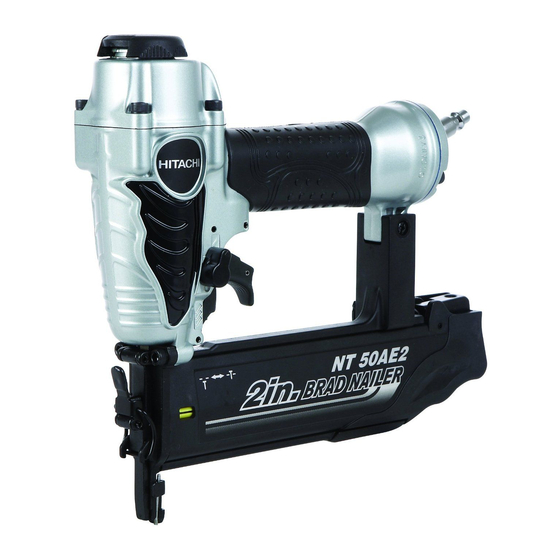

BRAD NAILER
MODEL NT 50AE2
O-Ring Shown Actual Size
BRAD NAILER
MODEL NT 32AE2
1
2
Kit-
FOR USE BY ONLY SERVICE PERSONNEL TRAINED
BY HITACHI, DISTRIBUTOR OR EMPLOYER.
For air leakage or sluggish operation.
STAPLER
MODEL N 3804AB3
Cap
Head Valve Spring
Head Valve (A)
3
4
5
6
Body
※ Development uses NT50AE2
Item
Code No. Part Name
No.
1
885-868 Gasket
2
878-600 Head Valve O-Ring
3
886-068 O-Ring
4
885-871 O-Ring
5
301-684 O-Ring
6
986-374 O-Ring
Piston Ass'y
Cyliner Plate
Cylinder
