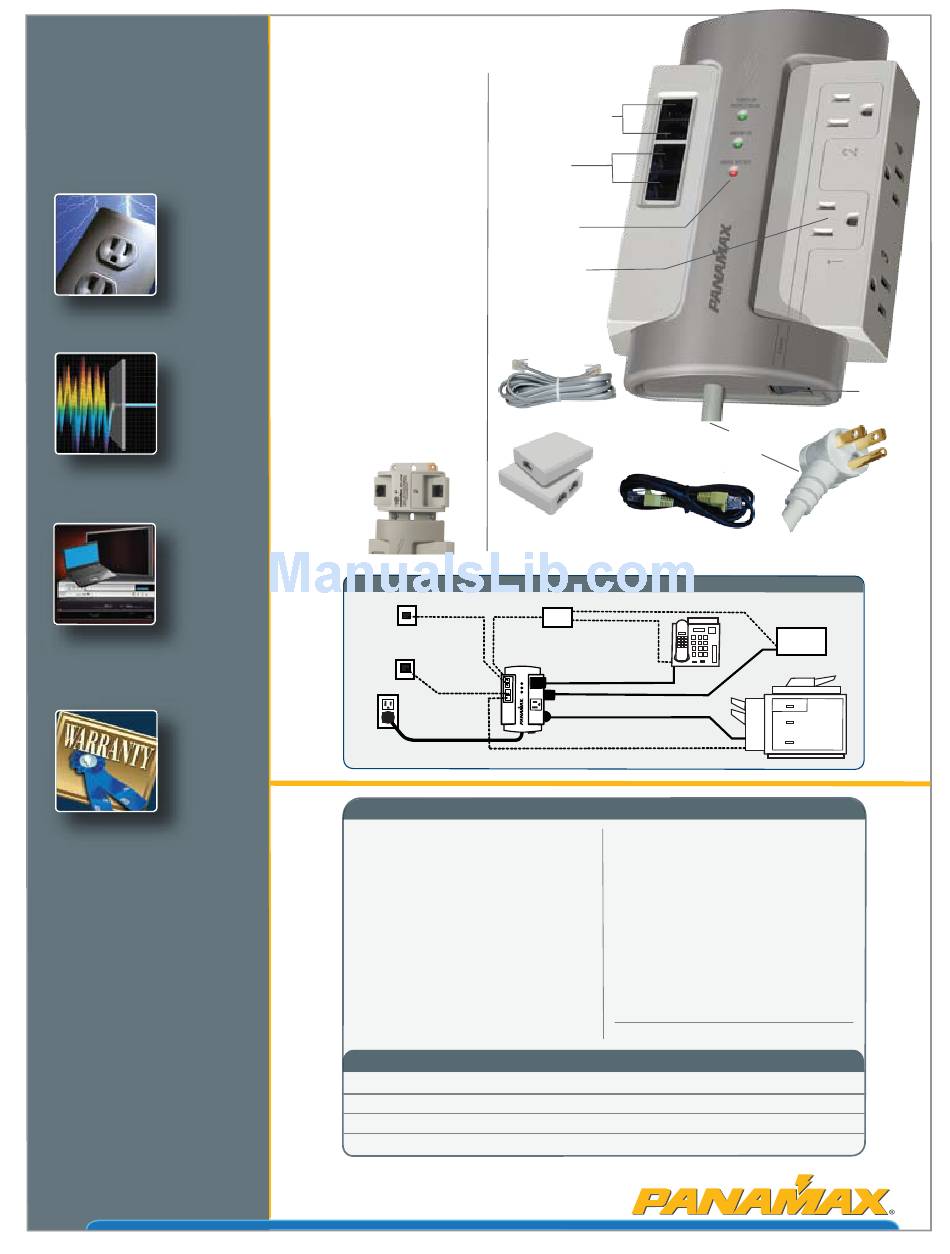

Panamax M4LT-EX Datasheet

Panamax
Surge
Protect
Noise
Filter
Connected
Equipment
Longevity
Lifetme
Warranty
Applications for
Home/Office
Equipment
• Copiers
• Modems
• Telephones
• Computers
• Printers
• Fax Machines

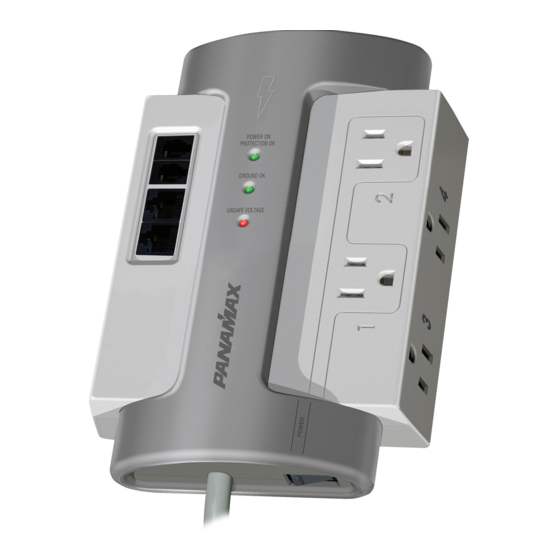

M4LT-EX
AC & Tel/LAN
Protection
Patented Technology
•
35 Years Engineering
•
Experience
Automatic Voltage
•
Monitoring
Protect-or-Disconnect
•
Circuitry
Exceeds UL Safety
•
Standards
Compact in Size
•
Accepts Add-on
•
Modules
(modules sold
separately)
visit www.panamax.com
TEL
TEL LINE
WALL
OUTLET
LAN
WALL
OUTLET
LAN LINE
AC LINE
PROPERLY
GROUNDED
AC OUTLET
AC POWER
Protect or Disconnect™ Circuitry______________ Yes
Patented Power Management Circuit ___________Yes
Overvoltage Shutoff__________________144V V8±
Undervoltage Shutoff_________________ 90V V6±
Thermal Fusing____________________________Yes
Line Voltage____________________120VAC, 50/60Hz
Initial Clamping Level_____________ 200V Peak, 141V
Voltage Protection Rating
(UL 1449 3rd Edition, 3,000A)___ 500V
Protection Modes______________________L-N, L-G, N-G
Maximum Current Rating___________15A (1800W)
EMI/RFI Noise Filtration________50dB (100kHz – 1 MHz)
Response Time_________________________ < 1ns
Single Pulse Energy Dissipation_________1650 Joules
Peak Impulse Current__________________ 52,000 A
MEASUREMENTS, WEIGHTS, QTYS & UPC FOR ORDERING & SHIPPING
Measurements
Product: 1.75" x 4.75" x 8"
Individual Box: 1.875" x 10.5" x 9.75"
Master Pack: 13" x 11" x 10.5"
800-472-5555 • www.panamax.com

FEATURES

RJ-11 Phone line
IN/OUT connectors.
RJ-45 CAT5e
IN/OUT LAN
connectors.
Power indicator
LEDs.
4 protected AC
receptacles with
tranformer
spacing.

ACCESSORIES

4 ft. RJ-11 Phone line.
DSL Phone
4 ft. CAT5e
line splitter. RJ-45 cable.

TYPICAL INSTALLATION

TEL LINE
TEL LINE
TEL LINE
SPLITTER
FAX/PHONE
AC LINE
AC LINE
AC LINE
LAN LINE

LAN Specifications:

Compatibility____10/100/100BASE-T (CAT 5e) Ethernet
Clamping Level___________________________62V
Suppression Modes__Differential & Common Ground
Wires Protected_______________________ Pins 1-8
Connectors____________________________ RJ-45

Telco Specifications:

Fuseless/Auto-Resettable ____________________ Yes
Clamping Level_________________________ 260V
Capacitance ______________________ 30 pf (approx.)
Suppression Modes___________Metallic & Longitudinal
Wires Protected_________________2 wire, 1 pair (3,4)
Connectors_____________________________RJ-11
Design and specifications subject to change without notice
Weights Qty.
2.4 lb.
2.5 lb.
16 lbs.
8 ft. AC cord
45/90 degree
plug.
TYPICAL INSTALLATION
DSL
ROUTER
MULTI
FUNCTIONAL
COPIER
due to product improvement.
UPC
1 -
1 050616008709
6 50050616008704
Part# L638 REV. A
Power
ON/OFF
switch
