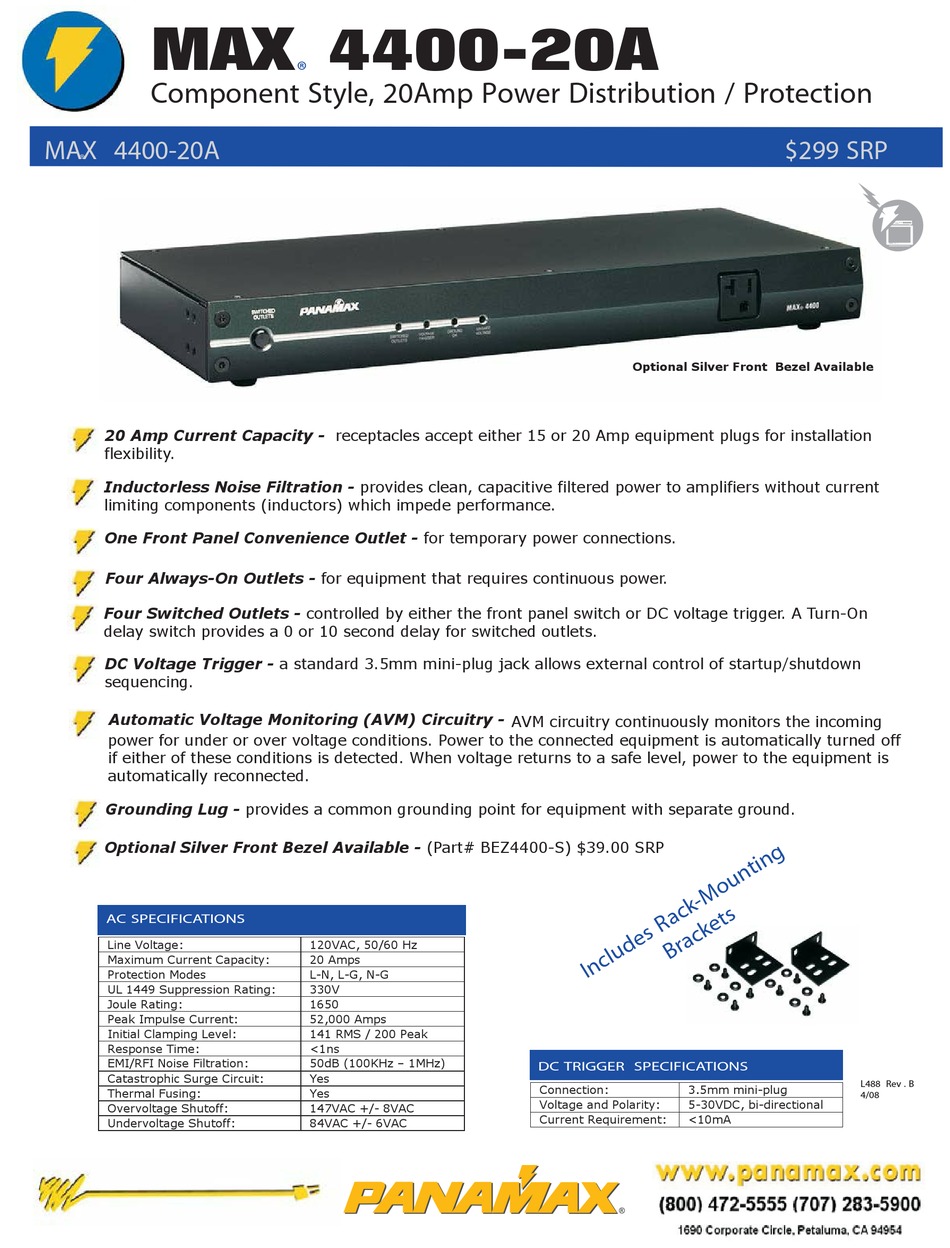

Panamax M4400-20A Specifications

MAX 4400-20A
Component Style, 20Amp Power Distribution / Protection
MAX 4400-20A
®
20 Amp Current Capacity -
flexibility.
Inductorless Noise Filtration - provides clean, capacitive filtered power to amplifiers without current
limiting components (inductors) which impede performance.
One Front Panel Convenience Outlet - for temporary power connections.
Four Always-On Outlets - for equipment that requires continuous power.
Four Switched Outlets - controlled by either the front panel switch or DC voltage trigger. A Turn-On
delay switch provides a 0 or 10 second delay for switched outlets.
DC Voltage Trigger - a standard 3.5mm mini-plug jack allows external control of startup/shutdown
sequencing.
Automatic Voltage Monitoring (AVM) Circuitry - AVM circuitry continuously monitors the incoming
power for under or over voltage conditions. Power to the connected equipment is automatically turned off
if either of these conditions is detected. When voltage returns to a safe level, power to the equipment is
automatically reconnected.
Grounding Lug - provides a common grounding point for equipment with separate ground.
Optional Silver Front Bezel Available - (Part# BEZ4400-S) $39.00 SRP
AC SPECIFICATIONS
L n i e V l o a t g e :
Maximum Current Capacity:
Protection Modes
UL 1449 Suppression Rating:
J o u e l R t a n i g :
Peak Impulse Current:
Initial Clamping Level:
Response Time:
EMI/RFI Noise Filtration:
Catastrophic Surge Circuit:
Thermal Fusing:
Overvoltage Shutoff:
Undervoltage Shutoff:
®
receptacles accept either 15 or 20 Amp equipment plugs for
1 2 0 V A C , 5 0 / 6 0 H z
20 Amps
L-N, L-G, N-G
330V
1 6 5 0
52,000 Amps
141 RMS / 200 Peak
<1ns
50dB (100KHz – 1MHz)
Yes
Yes
147VAC +/- 8VAC
84VAC +/- 6VAC
Optional Silver Front Bezel Available
DC TRIGGER SPECIFICATIONS
Connection: 3.5mm mini-plug
Voltage and Polarity: 5-30VDC, bi-directional
Current Requirement: <10mA
$299 SRP
installation
L488 Rev . B
4/08
