Summary of Contents for Panamax BlueBOLT C3-IP

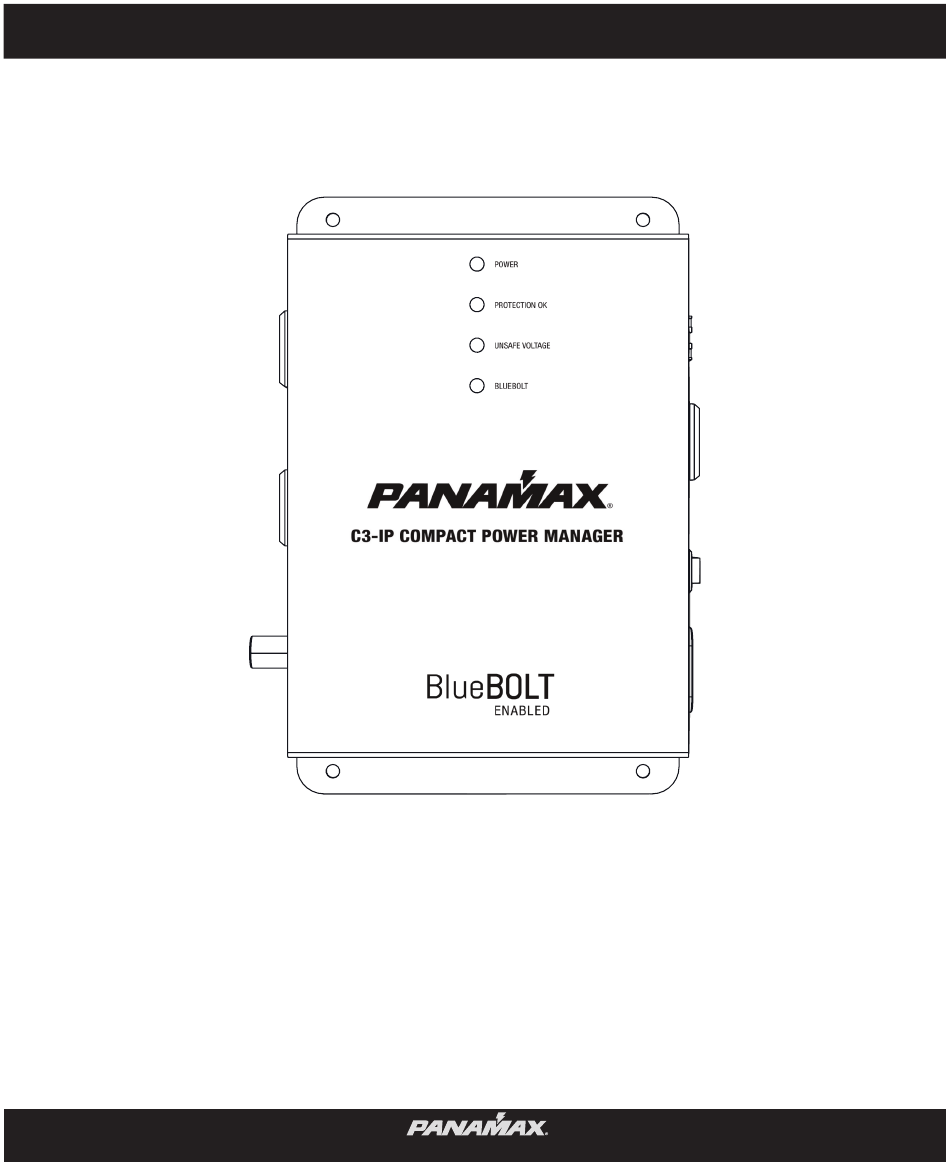

- Page 1 C3-IP Compact IP Power Management Quick Start Guide C3-IP A BlueBOLT ® Enabled Compact Power Manager with 3 Outlets www.panamax.com...
-
Page 2: Table Of Contents
Tech Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 www.panamax.com... -
Page 3: Custom Install Power Management
IP Monitor & Control - BlueBOLT™ enabled for IP control and monitoring • 3 individually controlled outlets • Ground lug to attach Panamax signal-line protection modules • Compact design with integrated brackets for wall mounting • 0 .5m IEC power cord •... -
Page 4: Mounting
C. Once you input the MAC address and included Challenge Key, if BlueBOLT cannot detect your device (please allow up to 20 seconds), please follow the on-screen troubleshooting guide . Also confirm the C3-IP is properly connected to your networking equipment . 0 .5m IEC power cord www.panamax.com... -
Page 5: Product Features
Mounting Bracket Holes (2) Mounting Bracket Holes (2) Outlet 2 Ground Lug Outlet 3 Connect Panamax signal-line protection modules grounds to this terminal . Protect data lines as well as AC lines from surges is required for the connected equipment warranty . www.panamax.com... -
Page 6: Advanced Operations
Voltage Monitor = okay – voltage is within a safe range Voltage Monitor = fault Either the over/under voltage load disconnect has engaged and all outlets are off . The breaker was tripped turning all outlets off The power switch was turned off, turning all outlets off . www.panamax.com... -
Page 7: Password Protection
Once you have enabled the password protection, your browser will prompt you to sign in using the new admin and password . Depending on your browser, you may need to refresh the page if the log in screen flashes . www.panamax.com... -
Page 8: Troubleshooting
. Ask you connected equipment. dealer about additional Panamax products that may be required . Ensure that the TV set is plugged into a powered AC outlet . There is no picture or sound on my TV. -
Page 9: C3-Ip Specifications
Environmental Specifications Temperature 0° C -+40° C (+32°F - +104°F) Operating Humidity 0 – 90% non-condensing External Pollution Degree Pollution Degree 2 Product Weights and Dimensions Length 7 .35” Width 5 .5” Height 1 .58” Weight 2 .6lbs 050616010351 www.panamax.com... -
Page 10: Technologies
The C3-IP can be monitored and controlled via an internal web page for LAN applications, or you can use the BlueBOLT cloud to monitor, control and program your device from anywhere in the world via your computer or mobile device . www.panamax.com... -
Page 11: Warranty Information
Panamax products purchased through the Internet do not carry a valid Product Warranty or Connected Equipment Protection Policy unless purchased from an Authorized Panamax Internet Dealer and the original factory serial numbers are intact (they must not have been removed, defaced or replaced in any way) . Purchasing from an Authorized Panamax Internet Dealer insures that the product was intended for consumer use, has passed all quality inspections and is safe . -
Page 12: Tech Support
.com All equipment being returned for repair must have a Return Authorization (RA) number . To get an RA number, please call Panamax Tech Support . Before returning any equipment for repair, please be sure that it is adequately packed and cushioned against damage in shipment, and that it is insured .
