Thermador ME301JS Design Manual
Professional & masterpiece series built-in ovens
Hide thumbs
Also See for ME301JS:
- Installation instructions manual (56 pages) ,
- User manual (112 pages) ,
- Use and care manual (108 pages)
Related Manuals for Thermador ME301JS
Summary of Contents for Thermador ME301JS

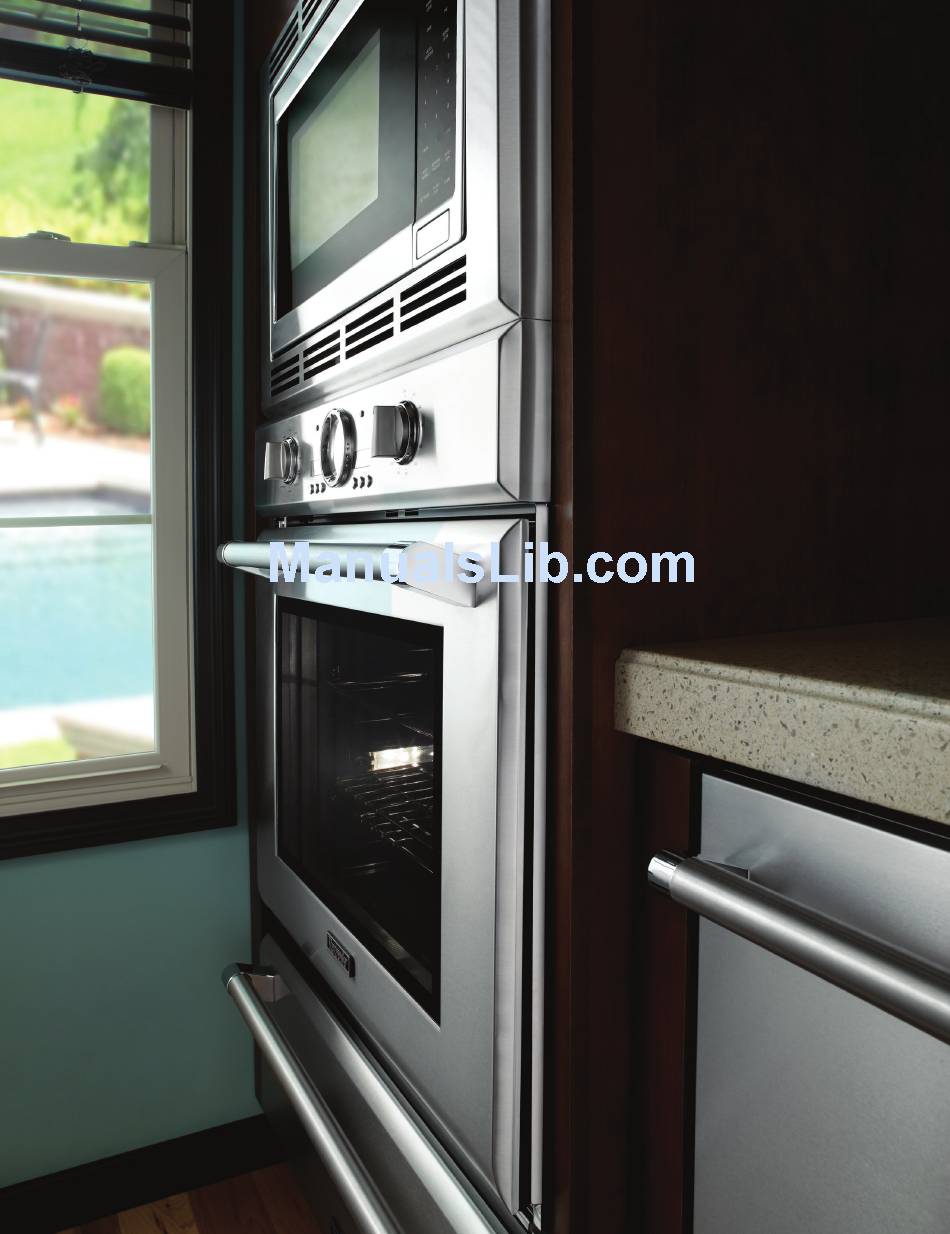

- Page 1 MODELS SHOWN: PODMW301J TRIPLE COMBINATION BUILT-IN OVEN AND DWHD651JFP DISHWASHER...
-
Page 2: Built-In Ovens
No true cook’s kitchen is truly complete without the power of steam. And no steam oven is complete without the power of convection. You’ll fi nd both in Thermador’s Steam & Convection Oven. Defrost, steam, proof, bake, slow cook and reheat — the oven’s performance and fl exibility are unmatched. More importantly, the Steam & Convection Oven provides unrivaled taste, texture and quality. - Page 3 MAXBROIL SOFTCLOSE DOOR ® Thermador‘s exclusive 5,000 Watt, 12-pass broil element is the most New SoftClose hinges prevent powerful on the market, allowing you to broil even the largest dishes slamming and ensure ultra more evenly for perfect results every time.
-
Page 4: Features And Benefits
— the Steam & Convection Oven makes foods that BEYOND CONVENTION are good for you even better. The Steam & Convection Oven features Thermador’s True BETTER-THE-NEXT-DAY REHEATING Convection baffl e system that When properly reheated, some leftovers taste better than when directs heat to cook foods faster they were originally served. - Page 5 MASSIVE CAPACITY 3 TELESCOPIC RACKS With 4.7 cubic feet of cooking space, the 30-inch Thermador Up to 3 Full Access telescopic ® Professional and Masterpiece Series Ovens are the largest on racks glide smoothly on ball the market*, capable of handling even the largest dinner parties.
-
Page 6: Planning Information
An electric or non-professional MED301JS 30 Amp 30 Amp Thermador Gas Cooktop can be installed above a Thermador Single Built-in Oven as long as there is no MED301JP 30 Amp 30 Amp contact between the bottom of the cooktop and the... -
Page 7: Specifications
- Professional Handle on model MES301HP Trim Depth** 24-Inch – " 27-Inch – 1 " 30-Inch – 1 " THERMADOR EXCLUSIVE Electrical Supply 240/208V AC, 60Hz Required Circuit Breaker 15 Amp Conduit 71" Flexible 3-Wire Electrical Rating 1.9 kW @ 240V 1.9 kW @ 208V... -
Page 8: Installation Options
Thermador Built-in Ovens are designed and approved for installation with Thermador cooktops. Refer to the cooktop Trim Depth –... - Page 9 - Premium glass touch control Min. Cabinet Depth 24" - Striking blue full text display Cutout Width " Cutout Height " THERMADOR EXCLUSIVE Min. Base Support (lbs.) Trim Overlaps " – " – " (top - bottom - sides) Electrical Supply...
- Page 10 Thermador Single Built-in Oven as long as there is no contact between the bottom of the cooktop and the top of the oven. Thermador Built-in Ovens are designed and approved for installation with Thermador cooktops. Refer to the cooktop section for additional specifi cations.
- Page 11 - Premium glass touch control Dimensions (W x H x D) - Striking blue full text display Min. Cabinet Width 27" Min. Cabinet Depth 24" THERMADOR EXCLUSIVE Cutout Width " Cutout Height " Min. Base Support (lbs.) Trim Overlaps " –...
- Page 12 24" deep and 27" wide. The cabinet base must be fl at and capable of supporting a weight of at least 361 lbs. (164 kg). Thermador 27-inch Double Ovens may also be installed above a Thermador Warming Drawer to create a convenient cooking center. Refer to the warming drawer section for additional "...
- Page 13 - See MCES for Microwave feature Warming Interior Capacity (cu. ft.) - See WD27JS for Warming Drawer feature Min. Cabinet Width 27" Min. Cabinet Depth 24" THERMADOR EXCLUSIVE " Cutout Width Cutout Height " Min. Base Support (lbs.) Trim Overlaps " – 0" –...
- Page 14 369 lbs. (167 kg). IMPORTANT When a Thermador Oven is installed at the end of a cabinet run, adjacent to a perpendicular wall or cabinet door, it is good practice to allow MEDMCW_71JS_27”...
- Page 15 24" - Bold chiseled professional design - Blue electronic graphic display controls all timer functions Cutout Width " Cutout Height " THERMADOR EXCLUSIVE Min. Base Support (lbs.) Trim Overlaps " – " – " (top - bottom - sides) Electrical Supply...
- Page 16 Thermador Single Built-in Oven as long as there is no contact between the bottom of the cooktop and the top of the oven. Thermador Built-in Ovens are designed and approved for installation with Thermador cooktops. Refer to the cooktop section for additional specifi cations.
- Page 17 BUILT-IN OVENS 30-INCH SINGLE ME301JS / ME301JP / MED301JS / MED301JP ME301JS / ME301JP / MED301JS / MED301JP INNOVATION - NEW SoftClose door ensures ultra smooth closing of the oven door ® - Massive Capacity – Largest oven cavity at 4.7 cu. ft. (overall AHAM) - Fastest preheat in the luxury segment (around 7 minutes) - Superfast 2-hour self clean mode –...
- Page 18 BUILT-IN OVENS 30-INCH SINGLE ME301JS / ME301JP / MED301JS / MED301JP INSTALLATION OPTIONS 30-INCH SINGLE OVEN — WALL-MOUNTED WALL-MOUNTED INSTALLATION Thermador 30-inch Single Ovens may be installed in a wall cabinet that is a minimum of 24" deep and 30" wide. The cabinet base must be fl at and capable of supporting a weight of at least 212 lbs.
- Page 19 - Bold chiseled professional design Min. Cabinet Width 30" - Blue electronic graphic display controls all timer functions Min. Cabinet Depth 24" Cutout Width " THERMADOR EXCLUSIVE Cutout Height " Min. Base Support (lbs.) Trim Overlaps " – " – "...
- Page 20 24" deep and 30" wide. The cabinet base must be fl at and capable of supporting a weight of at least 390 lbs. (177 kg). Thermador 30-inch Double Ovens may also be installed above a Thermador Warming Drawer to create a convenient cooking center. Refer to the warming drawer section for additional specifi cations.
- Page 21 Handle on model ME302JS and MED302JS ® Cutout Width " - Professional Handle on model ME302JP and MED302JP Cutout Height " Min. Base Support (lbs.) THERMADOR EXCLUSIVE Trim Overlaps " – " – " (top - bottom - sides) Electrical Supply 240/208V AC, 60Hz...
- Page 22 24" deep and 30" wide. The cabinet base must be fl at and capable of supporting a weight of at least 390 lbs. (177 kg). Thermador 30-inch Double Ovens may also be installed above a Thermador Warming Drawer to create a convenient cooking center. Refer...
- Page 23 - Blue electronic graphic display - Modern angular design controls all timer functions - Premium glass touch control - See MCES for Microwave feature ACCESSORIES - Striking blue full text display TLSCPRCK30 - See MCES for Microwave THERMADOR EXCLUSIVE 30-Inch Oven Telescopic Rack feature...
- Page 24 310 lbs. (141 kg). IMPORTANT When a Thermador Oven is installed at the end of a cabinet run, adjacent to a perpendicular wall or cabinet door, it is good practice to allow at least "...
- Page 25 10.5 kW @ 240V - See MCES for Microwave features 10.5 kW @ 208V - See MCES for Microwave features - See WD30JP for Warming Shipping Weight (lbs.) - See WD30J for Warming Drawer features Drawer features *According to AHAM Standards THERMADOR EXCLUSIVE...
- Page 26 429 lbs. (195 kg). IMPORTANT When a Thermador Oven is installed at the end of a cabinet run, adjacent to a perpendicular wall or cabinet door, it is good practice to allow MEDMCW_31JS_ 30”...
