SLV-D940P AZ/D940P EA/D940P ME
SERVICE MANUAL
RMT-V503D
System
Laser
Semiconductor laser
Signal format system
PAL/(NTSC), MESECAM
Channel coverage
SLV-D940P AZ
B/G:VHF E2 to E12/UHF E21 to E69/
CATV S01 to S05, S1 to S41
B/B: VHF R1 to R12/UHF R21 to R69
SLV-D940P ME/EA
B/G:VHF E2 to E12/UHF E21 to E69/
CATV S01 to S05, S1 to S41
D/K: VHF R1 to R12/UHF R21 to R69
I: VHF SA4 to SA13/UHF B21 to B69/
CATV S01 to S05, S1 to S41
RF output signal
UHF channels 21 to 69 (B/G, D/K, I)
UHF channels 28 to 69 (B/B)
Aerial out
75-ohm asymmetrical aerial socket
SLV-D940P AZ
SPECIFICATIONS
Tape speed
SP: PAL
23.39 mm/s (recording/playback)
NTSC 33.35 mm/s (recording*(line input
only)/playback)
LP: PAL
11.70 mm/s (recording/playback)
NTSC 16.67 mm/s (playback only)
EP: NTSC 11.12 mm/s (recording*(line input
only)/playback)
* SLV-D940P ME/EA only
Maximum recording/playback time
10 hrs. in LP mode (with E300 tape)
Rewind time
Approx. 1 min. (with E180 tape)
Inputs and outputs
LINE IN 1/LINE-2 IN
VIDEO IN, phono jack (1)
Input signal: 1 Vp-p, 75 ohms, unbalanced, sync
negative
AUDIO IN, phono jacks (2)
Input level: 327 mVrms
Input impedance: more than 47 kilohms
PAL NTSC
Australian Model
New Zealand Model
Middle East Model
SLV-D940P EA/D940P ME
Refer to the SERVICE MANUAL of VHS MECHANI-
CAL ADJUSTMENT MANUAL VII for MECHANICAL
ADJUSTMENTS. (9-921-790-11)
LINE OUT
VIDEO OUT, phono jack (1)
Output signal: 1 Vp-p, 75 ohms, unbalanced,
sync negative
AUDIO OUT, phono jacks (2)
Standard output: 327 mVrms
Load impedance: 47 kilohms
Output impedance: less than 10 kilohms
Additional AUDIO OUT, phono jacks (2)
Standard output: 327 mVrms
Load impedance: 47 kilohms
Output impedance: less than 10 kilohoms
DIGITAL OUT (OPTICAL)
Optical output jack/−18 dBm
(wave length 660 nm)
DIGITAL OUT (COAXIAL)
Phono jack/0.5 Vp-p/75 ohms
— Continued on next page —

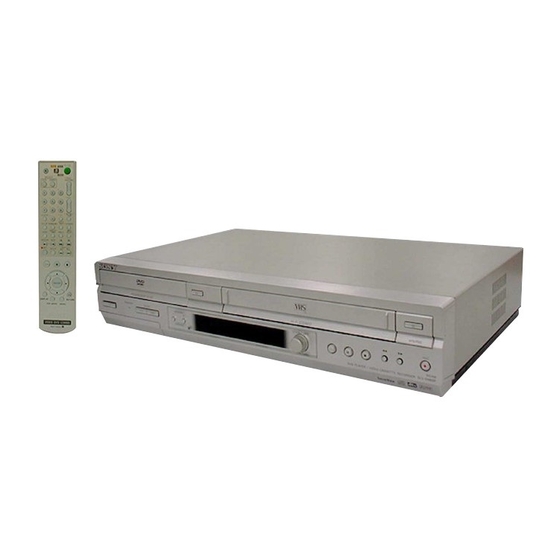

VIDEO CASSETTE RECORDER
RMT-V503D
SLV-D940P AZ
TS-10 MECHANISM
DVD PLAYER/
