Summarization of Contents
General Information and Safety
Receipt of Goods
Inspect stove for transport damage and report to carrier within seven days.
Cool Hands
Use the provided glove for opening the hot door to avoid burns.
Installation Inspection
Installation must be inspected by a chimney sweep before the stove is used.
Chimney Requirements
Minimum flue diameter 150mm, height 3.5m. Ensure good order and proper connection.
Wall Clearance Distances
Maintain minimum distances from combustible walls and furnishings for fire safety.
Fireplace Base
Stove must be placed on a suitable base of specified materials and dimensions.
Assembly Instructions
Selecting the Right Location
Choose a central location for even heat distribution and consider chimney exit.
Top Connection Assembly
Follow steps for connecting the stove to the NVI chimney kit.
Plummet Stop Installation
Fit the plummet stop inside the stove insert to protect the flue baffle.
Masonry Chimney Connection
Procedure for cutting a hole and connecting the stove to a masonry chimney.
Design and Safety Requirements
Ensure fire safety and proper flue installation for chimney sweeping.
Technical Specifications and Operation
Combustion Air Supply
Explanation of primary and secondary air feeds for combustion.
Outdoor Air Connection
Details on connecting an external air supply for the stove.
Heat Output Control
Guide to adjusting the stove's heat output using the controls.
Ash Disposal Procedure
Instructions for safely emptying the ash tray and storing ashes.
Model Dimensions
Camina Art Suprême Dimensions
Specifications including dimensions, features, and finish for the Art Suprême model.
Camina Art Grace Dimensions
Specifications including dimensions, features, and finish for the Art Grace model.

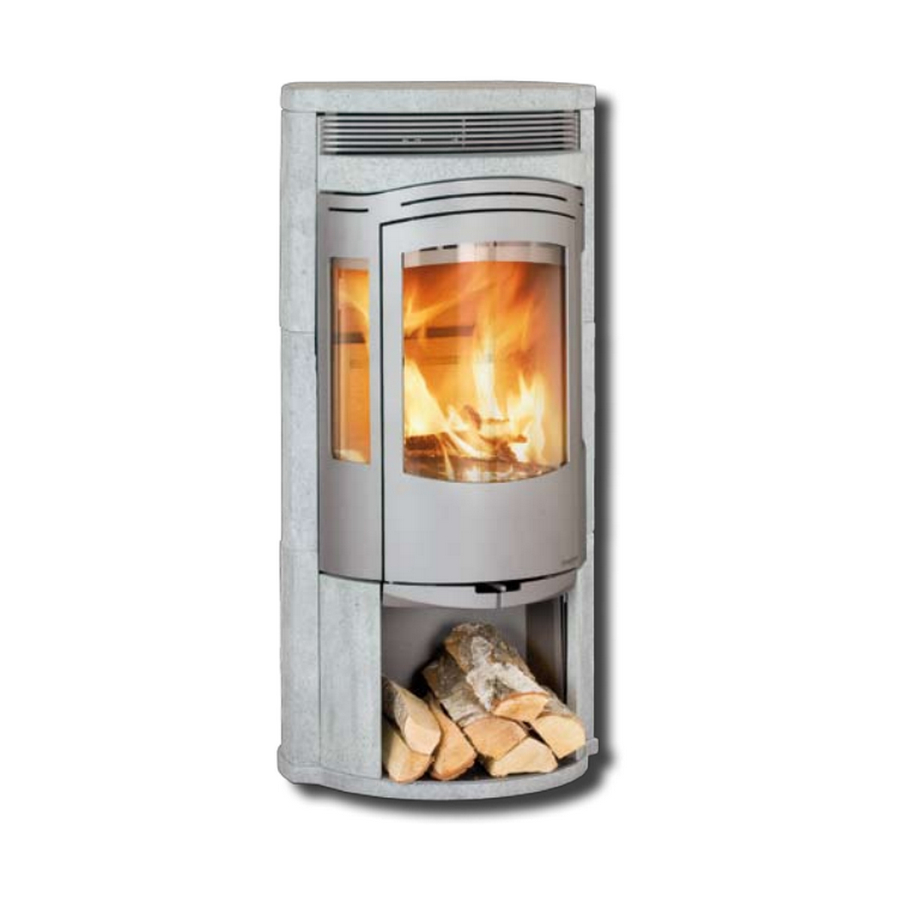

Camina Art Étage Dimensions
Specifications including dimensions, features, and finish for the Art Étage model.
Camina Art Pierre Dimensions
Specifications including dimensions, features, and finish for the Art Pierre model.
Camina Art Moderne Dimensions
Specifications including dimensions, features, and finish for the Art Moderne model.
User Guide and Maintenance
Fuel Guidelines
Information on suitable fuels, moisture content, and prohibited materials.
Starting a Fire
Step-by-step instructions for safely lighting a fire in the stove.
Refueling the Stove
Proper method for adding logs to a burning fire to ensure safe ignition.
Everyday Stove Use
Tips for adjusting air feed to achieve the desired heat output.
Important Usage Tips
Advice on initial use, seal checks, glass cleaning, and chimney cleaning.
