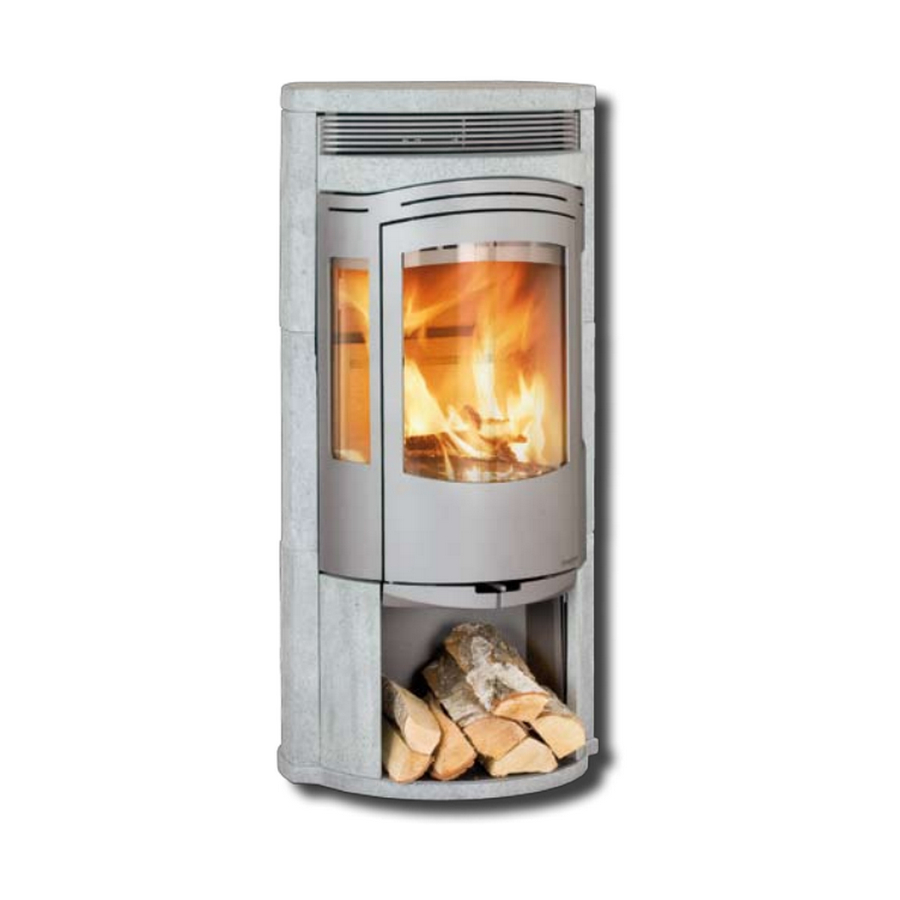

- Page 1 Utgåva 1.2006 w w w. c a m i n a . s e I n s t r u c t i o n s f o r a s s e m b l y a n d u s e Art Suprême Art Grace Art Moderne...
-
Page 2: Table Of Contents
-Outdoor air connection -Output control -Controls -Distance from wall surfaces -Ash disposal Dimensions and connection heights ... pages 9-11 -Camina Art Suprême -Camina Art grace -Camina Art Etage -Camina Art Moderne -Camina Art Pierre Instructions for use and maintenance ... page 12... -
Page 3: General
General Receipt of goods The product may have been damaged in transport, although this may not be apparent from the external packaging. It is important that you inspect the stove carefully and report any damage to the transport company within seven days. You should note visible damage immediately on the delivery note, in connection with receipt of the goods. -
Page 4: Manufacturer's Assurance
40 mm (see illustrations for the various models). What is included? Available for Camina Art Grace and The delivery includes the stove and inserts for a top or rear connection. Options include a Camina Art Etage. -
Page 5: Assembly
The plummet stop prevents damage to the flue baffle during chimney-sweeping operations. Top connection to the Camina NVI 2000 chimney kit Start by fitting the adapter pipe, using stove sealant (see photo). The next stage... -
Page 6: Cutting Hole In Masonry Chimney
Nominal output 5.5 kW Efficiency (SS-EN 13240) length, and with ready Weights: access to cleaning doors. Camina Art Suprême 122 kg Camina Art Grace 124 kg Camina Art Étage 124 kg Camina Art Moderne 210 kg... -
Page 7: Technical Information
Combustion air The air consumed in the combustion process has Secondary air feed (unregulated) supply to be replaced, particularly in well-insulated buil- dings. The air feed to the hearth may be direct, via an outdoor air connection, or indirect, via a vent in an external wall. -
Page 8: Distance From Wall Surfaces
Distances from Fire barrier wall surfaces Combustible wall, corner and straight-wall locations Ash disposal To access the ash tray, open the stove door by pulling the handle on the right towards you. Open the grate by holding the front edge of the grate and pulling it towards you by about 1-2 cm. When the grate is open you can rake the ash down into the ash tray. -
Page 9: Dimensions And Connection Heights
Camina Art Suprême The Art Suprême model has two side glass panels to ensure a very broad angle to allow firelight in the room. This is a small, efficient stove which calls for minimum floor space. It is finis- hed in an elegant graphite-grey. A top stone unit is supplied as standard. -
Page 10: Camina Art Etage
Camina Art Etage The Art Étage model has soapstone panels on two levels, and a decorative front grill. This is a small, efficient stove which calls for minimum floor space. It is finished in an elegant graphite-grey. A top stone unit is supplied as standard. A base stone unit or the cast-iron base unit are available as optional extras. - Page 11 Camina Art Moderne The Art Modern model has a heat- storage soapstone casing. This is a small, efficient stove which calls for minimum floor space. It is finished in an elegant graphite-grey. Soapstone casing components Assemble sidepieces Start by fitting the base Applicate silico- shown order.
-
Page 12: Instructions For Use And Maintenance
• If a chimney-fire occurs, or if there is a risk of a chimney-fire, close the air-feed control and the Box 225 · 591 23 Motala door. If necessary, contact the fire brigade to have the fire extinguished. The chimney must always www.camina.se be inspected by a chimney sweep after a chimney-fire has occurred.
