system control Panel

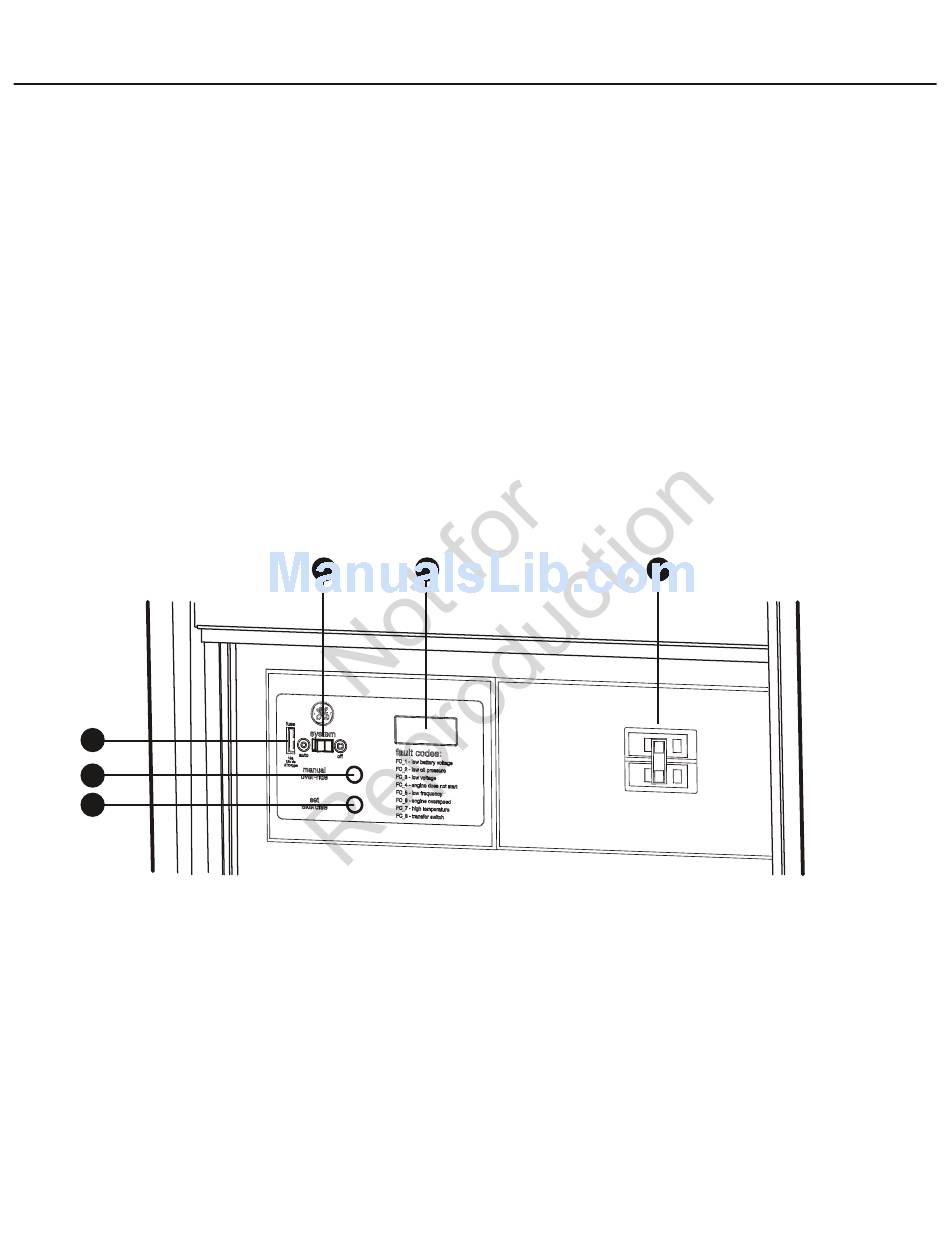

The home generator control panel, located inside the control
panel door, is shown below. Brief descriptions of the controls
used during installation are:
a - set eXercise — Used to set the exercise cycle start time.
B – ManuaL oVer-riDe — Used to manually start and stop
the generator.
c - 15 amp fuse — Protects the generator DC control
circuits. If the fuse has 'blown' (melted open) or was
removed, the engine cannot crank or start. Replace the
fuse using only an identical ATO 15A fuse. One spare fuse
is supplied with the unit. If fuse was blown or removed,
you will need to reset the exercise timer (see Setting
Exercise Timer).
C
B
A
18
D - system switch — Switches modes to off or auto.
e - Digital Display — Displays running time in hours or
f - circuit Breaker — Must be on to supply power to the
More information may be found in Controls in the
operator's manual.
D E
• "auto" position is the normal operating position. If a
utility power outage is sensed, the system will start
the generator. When utility power is restored, lets the
engine stabilize internal temperatures, shuts off the
generator, and waits for the next utility power outage.
• "off" position turns off running generator, prevents
unit from starting and resets any detected faults.
fault codes.
transfer switch.
F
