Installation Instructions
for use by heating contractor
Vitocrossal 200
CM2 Series 400, 500 and 620

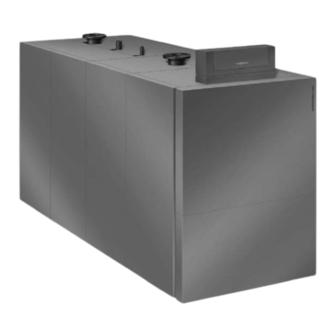

Gas condensing boiler with cylinder burner
Heating input:
1445 to 2245 MBH
(423 to 658 kW)
VITOCROSSAL 200
H
5773 597 - 04 09/2014
Product may not be exactly as shown
IMPORTANT
Read and save these instructions
for future reference.
Please file in Service Binder
