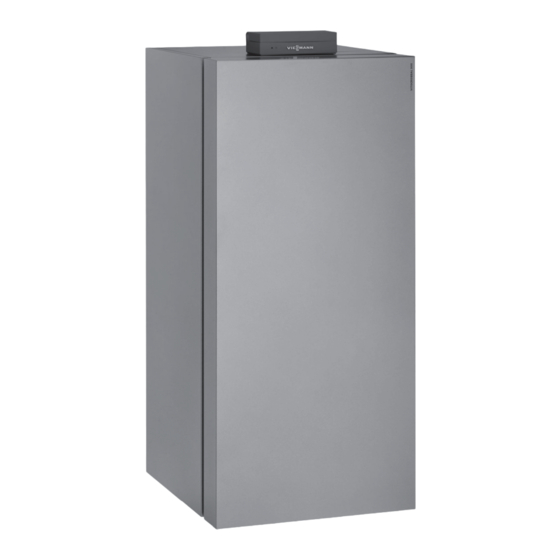

Floor mounted, gas-fired condensing boiler with matrix gas burner and lambda pro control
Hide thumbs Also See for Vitocrossal 300 CU3A 26:
Table of Contents

Advertisement

Quick Links

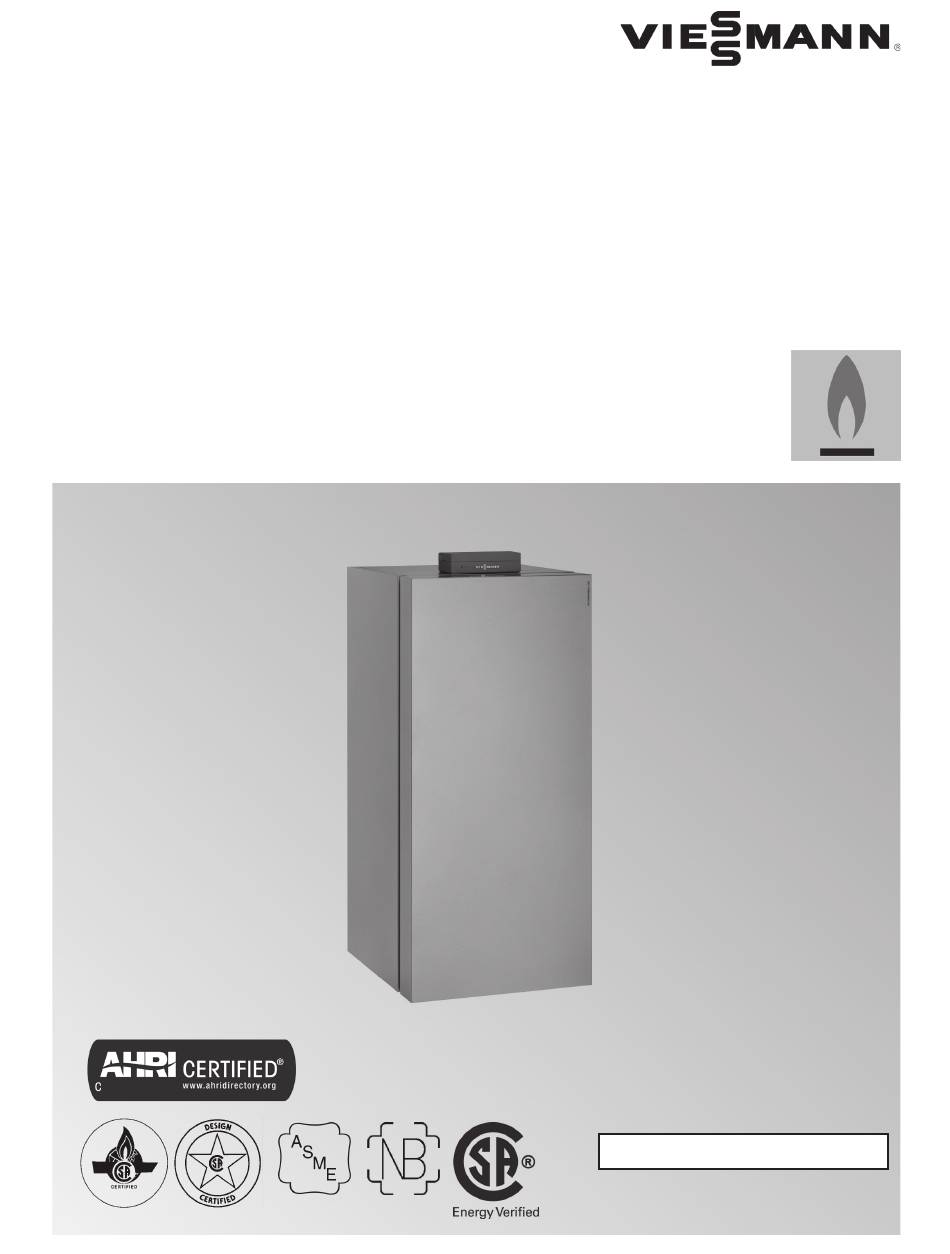

Installation Instructions
for use by heating contractor
Vitocrossal 300 CU3A
Models 26, 35, 45, 57, 94, 125, 160, 199
Floor mounted, gas-fired condensing boiler with MatriX gas burner and Lambda Pro control
For operation with natural gas and liquid propane gas
Heating input
19 to 199 MBH
5.6 to 58 kW
VITOCROSSAL 300
5673 648 - 15
02/2023
H
Product may not be exactly as shown
IMPORTANT
Read and save these instructions
for future reference.
Please file in Service Binder
