Basic Operation

FRONT PANEL OVERVIEW

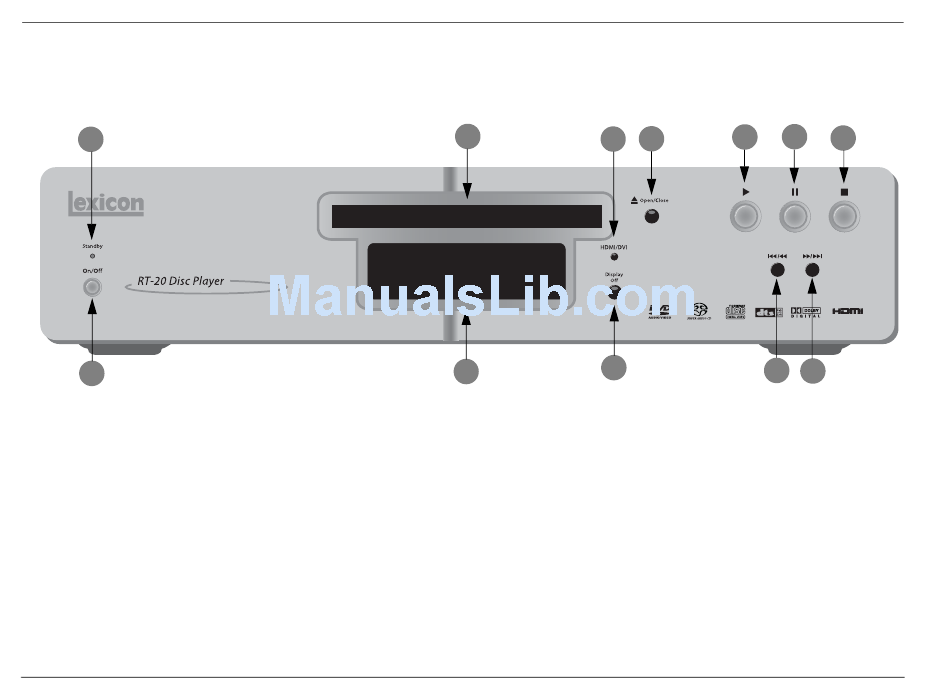

The numbers in the front panel illustration correspond with the numbered items below.
1
1
2
7
1. Standby LED
2. Disc Drawer & Open/Close Button
3. HDMI/DVI Indicator
4. Play Button
5. Pause Button
6. Stop Button
7. On/Off Button
8. Front Panel Display
9. Display Off Button
10. Reverse Skip/Scan Button
11. Forward Skip/Scan Button
2-2
5
2
2
4
9
8 9
8
1 STANDBY LED
Lights to indicate that standby mode is activated. Standby mode
can be activated and deactivated with the remote control POWER
button or with an associated component connected to the RT-20
trigger input connector. Standby mode is automatically activated
after 30 minutes of non-use when the Auto Power Off parameter is
set to ON_30MIN. See "Auto Power Off" on page 3-29.
When the RT-20 is not configured for trigger control, the remote
control POWER button can be used to activate and deactivate
standby mode. When the RT-20 is configured for trigger control,
the associated component connected to the RT-20 trigger input
connector can be used to activate and deactivate standby mode.
4
3 2
9
10
