Trainings- und Bedienungsanleitung
Training and Operating Instructions
Mode d'emploi et instructions d'entraînement
Trainings- en bedieningshandleiding
Instrucciones de entrenamiento y manejo
Istruzioni per l'allenamento e per l'uso
Instrukcja treningowa i instrukcja obsługi
Návod na trénink a obsluhu
Trænings – og brugervejledning
Instruções de treino e utilização
GOLF P
LOTUS R
GOLF R
SM3635-68
deutsch
english
française
nederlands
español
italiano
polski
čeština
dansk
português
Advertisement
Table of Contents
Related Manuals for Kettler GOLF R
Summary of Contents for Kettler GOLF R

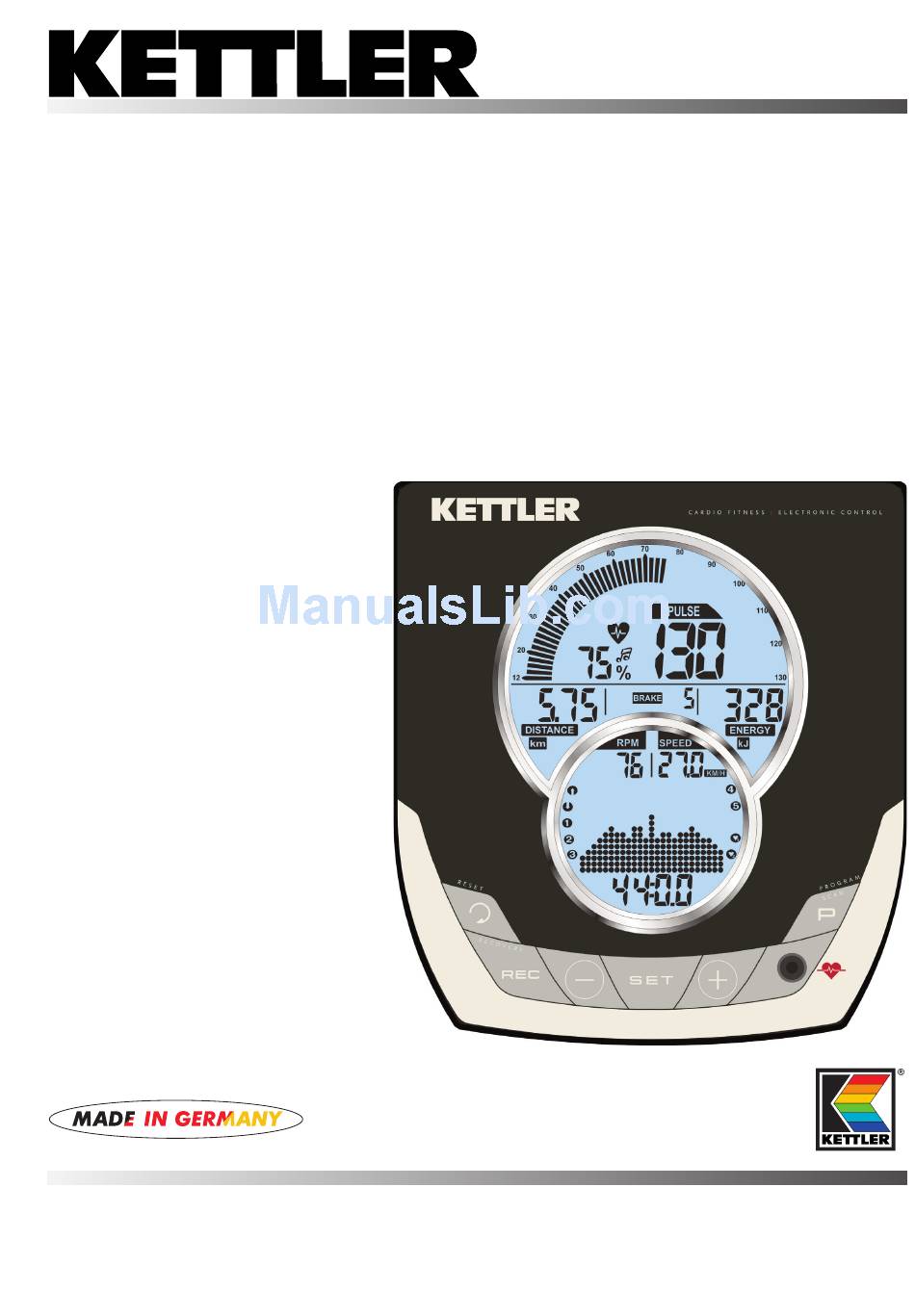

- Page 1 Instrucciones de entrenamiento y manejo italiano Istruzioni per l'allenamento e per l’uso polski Instrukcja treningowa i instrukcja obsługi čeština Návod na trénink a obsluhu dansk Trænings – og brugervejledning português Instruções de treino e utilização GOLF P LOTUS R GOLF R...
-
Page 2: Table Of Contents
• The safety controls must be carried out by the user regularly and properly. • Defect or damaged components must be replaced immediate- ly. Use only original spare parts of KETTLER. • The device must not be used until the repair has been carried out. -
Page 3: Short Description
SM3635-68 Short description The electronics consists of a function range with buttons and an indicating range (display) with variable symbols and graphics. Indicating range Display Function range Buttons... - Page 4 Training and Operating Instructions Short description Function range The six buttons are briefly explained in the following. The precise use is explained in the individual chapters. In these descriptions, the names of the functional buttons are used in the same way. SET (press briefly) This functional button is for displaying input data.
-
Page 5: Indicating Range / Display
SM3635-68 Indicating range / Display The indicating range informs on the various functions and respectively selected setting modes. Programmes: Count Up / Count Down The programmes differ in their mode of counting. Programms Strains beyond the time or distance Default profiles 1-6 Pulse-controlled programmes: HRC1/HRC2 Target pulse beyond the time Two programmes that control the strain by a preset pulse... - Page 6 Training and Operating Instructions Pedalling frequency Scale Pedal revolutions Average value Value 0 – 199 Speed Average value Value 0 – 99,9 Dimension adjustable Puls Maximum pulse Average value RECOVERY Warning (flashes) Max. pulse + 1 Target pulse exceeded + 11 Target pulse run below –...
-
Page 7: Display Values
SM3635-68 Energy consumption Value 0 – 9999 Dimension adjustable Points Display of text and values 1 column corresponds to 1 minute or in case of home trai- Strain profile ners: 400 m or 0.2 miles and 1 point (height) = 1 Level in case of cross trainers: 200 m 1. -
Page 8: Training By Defaults Of Strain
Training and Operating Instructions Training The computer is equipped with 10 training programmes. They clearly differ in strain intensity and duration. 1. Training by defaults of strain a) Manual strain input • (PROGRAM) “Count Up” • (PROGRAM) “Count Down” b) Strain profiles •... -
Page 9: Readiness For Training
SM3635-68 Age input The input of the age serves to determine and control the maximum pulse (Symbol HI, warning sound, if activated). • Enter values by means of “Plus” or “Minus” (such as 34). Based on it, the maximum pulse of 186 is calcula- ted according to the formula (220 –... -
Page 10: Switching Over Time/Distance
Training and Operating Instructions b) strain profiles (PROGRAM) “1” – “6” All profiles are selected by pressing “PROGRAM”. Display: e.g. “1” Fitness beginners I; strain level 1-4, 27 min. Press “SET”: default range, Start of training • Press “PROGRAM” until: display “2”... -
Page 11: Hrc1 – Count-Up
Start of training by pedalling. Default possibilities: see table page 12 Note: • KETTLER recommends the pulse measurement by means of the chest belt for HRC programmes • A strain adjustment is realised for HRC programmes in case of deviations of +/- 6 heartbeats. -
Page 12: Interruption/End Of Training
Training and Operating Instructions Adjustment of the strain profile If the strain is adjusted during the programme flow, the change appears from the flashing column to the right. The columns left of it show the realised strain levels and remain unchanged. Interruption/end of training The electronics detects an interruption of the training in case of less than 10 pedal revolutions/min or pressing... -
Page 13: Input And Functions
SM3635-68 Input and functions Training Stillstand ✔ ✔ Strain Strain ✔ ✔ ✔ ✔ ✔ ✔ Profile Profile ✔ ✔ Distance ✔ ✔ Time ✔ ✔ Energy ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ Max. Pulse Fat burning ✔... -
Page 14: Individual Settings
Training and Operating Instructions Individual settings Proceed according to the figure on the left: Press “RESET” Display: all segments Now press “SET” for a longer period of time: menu: indi- vidual settings Display: Scale 1. Display of the unit in kilometres / miles Press “Plus”... -
Page 15: System Sounds
SM3635-68 General Instructions Average Calculation The average value is calculated per training unit. Exercise bike Instructions for Pulse Measurement Speed calculation The pulse calculation starts when the heart flashes in the display 60 pedal rotations per minute result in a speed of 21.3 km/h. in rhythm with your pulse rate. -
Page 16: Training Instructions
Training and Operating Instructions Training Instructions Training frequency Extent of training session Sports medicine and training science use ergometry, among 1st week other things, for the examination of the functional capability of 3 times a week 2 minutes of training heart, circulation and respiratory system. - Page 17 SM3635-68 MaxPulse(s) Calculated value from 220 minus years of age Here an entry for calculation of the maximum pulse. Target pulse HI symbol Manual or program-determined pulse value, which is to be cal- With “HI” displayed, a target pulse is too high by 11 beats. culated.
- Page 18 Leistungstabelle – GB – Performance table – F – Tableau de performances – NL – Prestatientabel – E – Table de rendimiento Belastungs- Zeit Entfernung Energie- Fitness- – D – Datum Ruhepuls Belastungspuls Erholungspuls stufe (min.) (km) verbrauch note – GB – Date Restpulse Stress pulse Recovery pulse...
- Page 19 Leistungstabelle – I – Tabella delle prestazione – PL – Tabela wyników – CZ – Výkonová tabulka – P – Tabela de desempenho – DK – Trænings skema Tempo Percorso Consumo energetico Voto – I – Data Polso riposo Polso affaticamento Polso ripresa Fase dicarico (min.)
- Page 20 HEINZ KETTLER GmbH & Co. KG Postfach 1020 • D-59463 Ense-Parsit www.kettler.net docu 2509b/05.10...
