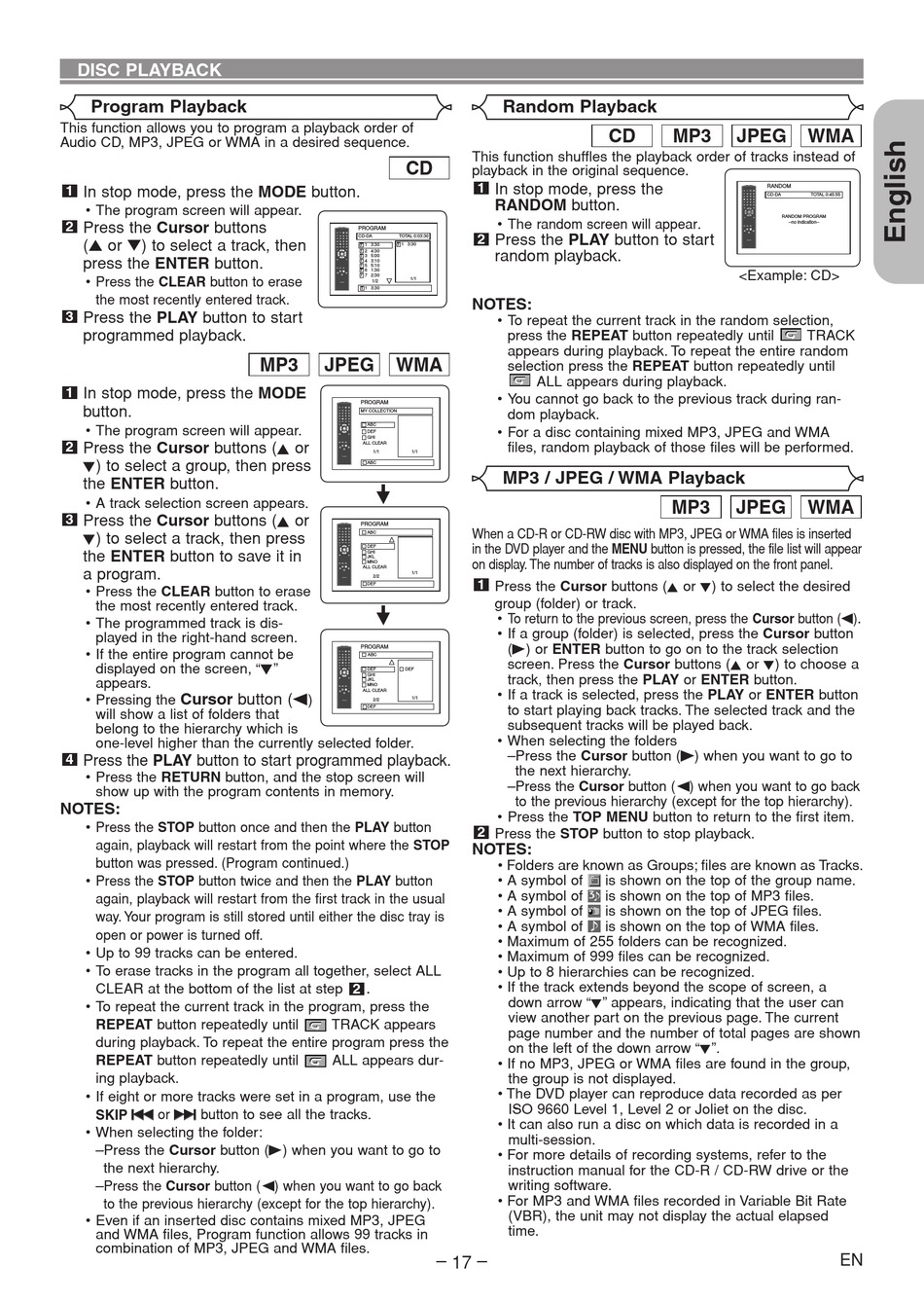

DISC PLAYBACK
Program Playback
This function allows you to program a playback order of
Audio CD, MP3, JPEG or WMA in a desired sequence.
1
In stop mode, press the MODE button.
• The program screen will appear.
2
Press the Cursor buttons
(L or M) to select a track, then
press the ENTER button.
• Press the CLEAR button to erase
the most recently entered track.
3
Press the PLAY button to start
programmed playback.
1
In stop mode, press the MODE
button.
• The program screen will appear.
2
Press the Cursor buttons (K or
L) to select a group, then press
the ENTER button.
• A track selection screen appears.
3
Press the Cursor buttons (K or
L) to select a track, then press
the ENTER button to save it in
a program.
• Press the CLEAR button to erase
the most recently entered track.
• The programmed track is dis-
played in the right-hand screen.
• If the entire program cannot be
displayed on the screen, "
appears.
Cursor button (s
• Pressing the
will show a list of folders that
belong to the hierarchy which is
one-level higher than the currently selected folder.
4
Press the PLAY button to start programmed playback.
• Press the RETURN button, and the stop screen will
show up with the program contents in memory.
NOTES:
• Press the STOP button once and then the PLAY button
again, playback will restart from the point where the STOP
button was pressed. (Program continued.)
• Press the STOP button twice and then the PLAY button
again, playback will restart from the first track in the usual
way. Your program is still stored until either the disc tray is
open or power is turned off.
• Up to 99 tracks can be entered.
• To erase tracks in the program all together, select ALL
CLEAR at the bottom of the list at step
• To repeat the current track in the program, press the
REPEAT button repeatedly until
during playback. To repeat the entire program press the
REPEAT button repeatedly until
ing playback.
• If eight or more tracks were set in a program, use the
H or G
G button to see all the tracks.
SKIP H
• When selecting the folder:
–Press the Cursor button (B) when you want to go to
the next hierarchy.
–Press the Cursor button ({) when you want to go back
to the previous hierarchy (except for the top hierarchy).
• Even if an inserted disc contains mixed MP3, JPEG
and WMA files, Program function allows 99 tracks in
combination of MP3, JPEG and WMA files.
CD
PROGRAM
CD-DA
TOTAL 0:03:30
T
1 3:30
T
1 3:30
T
2 4:30
T
3 5:00
T
4 3:10
T
5 5:10
T
6 1:30
T
7 2:30
1/1
1/2
T
1 3:30
MP3
JPEG
WMA
PROGRAM
MY COLLECTION
ABC
DEF
GHI
ALL CLEAR
1/1
1/1
ABC
PROGRAM
ABC
DEF
GHI
JKL
MNO
ALL CLEAR
1/1
2/2
DEF
PROGRAM
ABC
"
L
DEF
DEF
GHI
JKL
MNO
ALL CLEAR
)
1/1
2/2
DEF
.
2
TRACK appears
ALL appears dur-
Random Playback
CD
This function shuffles the playback order of tracks instead of
playback in the original sequence.
1
In stop mode, press the
RANDOM button.
• The random screen will appear.
2
Press the PLAY button to start
random playback.
NOTES:
• To repeat the current track in the random selection,
press the REPEAT button repeatedly until
appears during playback. To repeat the entire random
selection press the REPEAT button repeatedly until
ALL appears during playback.
• You cannot go back to the previous track during ran-
dom playback.
• For a disc containing mixed MP3, JPEG and WMA
files, random playback of those files will be performed.
MP3 / JPEG / WMA Playback
When a CD-R or CD-RW disc with MP3, JPEG or WMA files is inserted
in the DVD player and the MENU button is pressed, the file list will appear
on display. The number of tracks is also displayed on the front panel.
1
Press the Cursor buttons (K or L) to select the desired
group (folder) or track.
• To return to the previous screen, press the Cursor button (s)
• If a group (folder) is selected, press the Cursor button
(B) or ENTER button to go on to the track selection
screen. Press the Cursor buttons (K or L) to choose a
track, then press the PLAY or ENTER button.
• If a track is selected, press the PLAY or ENTER button
to start playing back tracks. The selected track and the
subsequent tracks will be played back.
• When selecting the folders
–Press the Cursor button (B B ) when you want to go to
the next hierarchy.
–Press the Cursor button ({) when you want to go back
to the previous hierarchy (except for the top hierarchy).
• Press the TOP MENU button to return to the first item.
2
Press the STOP button to stop playback.
NOTES:
• Folders are known as Groups; files are known as Tracks.
• A symbol of
is shown on the top of the group name.
• A symbol of
is shown on the top of MP3 files.
• A symbol of
is shown on the top of JPEG files.
• A symbol of
is shown on the top of WMA files.
• Maximum of 255 folders can be recognized.
• Maximum of 999 files can be recognized.
• Up to 8 hierarchies can be recognized.
• If the track extends beyond the scope of screen, a
down arrow "L" appears, indicating that the user can
view another part on the previous page. The current
page number and the number of total pages are shown
on the left of the down arrow "L".
• If no MP3, JPEG or WMA files are found in the group,
the group is not displayed.
• The DVD player can reproduce data recorded as per
ISO 9660 Level 1, Level 2 or Joliet on the disc.
• It can also run a disc on which data is recorded in a
multi-session.
• For more details of recording systems, refer to the
instruction manual for the CD-R / CD-RW drive or the
writing software.
• For MP3 and WMA files recorded in Variable Bit Rate
(VBR), the unit may not display the actual elapsed
time.
– 17 –
MP3
JPEG
WMA
RANDOM
CD-DA
TOTAL 0:45:55
RANDOM PROGRAM
--no indication--
<Example: CD>
TRACK
MP3
JPEG
WMA
EN
.
