Be sure to read this manual before servicing. To assure safety from fire, electric shock, injury, harmful radiation
and materials, various measures are provided in this Hitachi liquid crystal television/monitor.
Be sure to read the cautionary items described in the manual to maintain safety before servicing.
1. The LCD Panel Module is made of glass. When handling broken LCD Panel Module, take special care not to
be injured.
2. Replacement work should only start after the LCD Panel Module and the AC/DC Power Supply has become
sufficiently cool.
3. Take special care of the LCD display panel and do not damage its surface.
4. Do not touch the LCD Panel Module with your bare hands and protect its surface from stains.
5. It is recommended to use clean soft gloves during servicing in order to protect the LCD display panel and the
service personnel himself.
*
SAFETY NOTICE...................................................2
*
DISPLAY MODES..................................................2
*
SPECIFICATIONS...................................................3
*
LOCATION OF CONTROLS......................................4
*
CONNECTIONS......................................................7
*
FACTORY SETTTINGS...........................................10
*
TROUBLESHOOTING..............................................11
*
SCHEMATIC DIAGRAMS.............................................12
SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT
July 2005
(15" model)
Service Warning

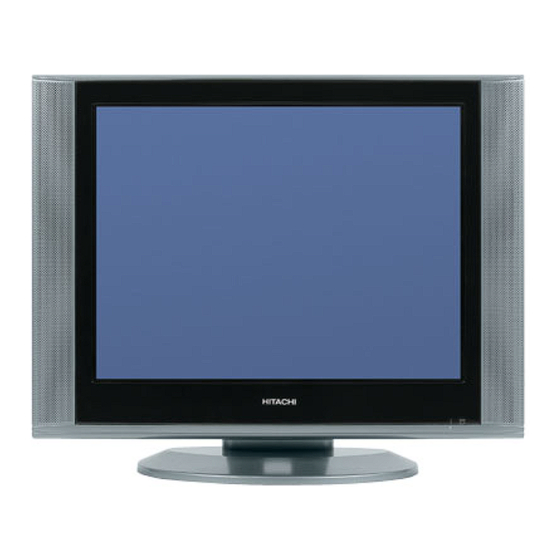

Liquid Crystal Display Television/Monitor
Digital Media Systems Group, Hitachi Asia Ltd.
(20" model)
Caution
Contents
*
PRINTED CIRCUIT BOARD........................................21
*
BLOCK DIAGRAM...............................................27
*
WIRING DIAGRAM.............................................28
*
EXPLODED VIEW & MECHANICAL PARTS LIST..........29
*
INFORMATION OF ICS...............................................31

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C20-LC880SNT and is the answer not in the manual?

Questions and answers

Summarization of Contents

Location of Controls
Remote Control
Identifies buttons and functions on the remote control.
Front and Side Panels
Identifies controls and indicators on the unit's front and side panels.
Connections
Connecting The Antenna
Instructions for connecting an external antenna to the unit.
Connecting The PC
Steps for connecting a personal computer to the monitor.
Connecting AV Equipment
Guide for connecting external video and audio devices to AV inputs.
Schematic Diagrams
Main Diagram-1
Circuit diagram for the main board, focusing on input connectors.
Main Diagram-2
Circuit diagram for the main board, detailing IC connections and power.
Control Keys Diagram
Schematic for the control buttons and associated circuitry.
Power Diagram
Circuit diagram of the power supply section and voltage regulators.
Tuner Diagram
Schematic for the tuner board and its connections.
Teletext Diagram
Circuit diagram for the teletext function.
Video Decoder Diagram
Schematic for the video decoder IC and related components.
Audio And CONN Diagram
Circuit diagram for audio processing and connector interfaces.
Lvds_ttl-out Diagram
Schematic for LVDS and TTL output signals to the panel.
Printed Circuit Board
Tuner Board (Top Side)
Top view layout of the tuner circuit board with component placement.
Information of ICs
IC MC78M05 D-PAK
Pin details for the MC78M05 voltage regulator.
IC LM1117DTX-3.3 TO-252
Pin details for the LM1117DTX-3.3 voltage regulator.
IC LM1084ISX-3.3 TO263
Pin details for the LM1084ISX-3.3 voltage regulator.
IC LM2596S-5.0 TO-263
Pin details for the LM2596S-5.0 DC/DC converter.
IC SN74CBT3253CDBQR SSOP16
Pin details for the SN74CBT3253 multiplexer/demultiplexer.
IC 24LC16BT SOIC08
Pin details for the 24LC16BT serial EEPROM.
IC FDS9933A SO-8
Pin details for the FDS9933A MOSFET.
IC 24AA02 SOIC08
Pin details for the 24AA02 serial EEPROM.
IC FSAV330 QS0P16
Pin details for the FSAV330 analog switch.
IC 74LCX14 S0IC14
Pin details for the 74LCX14 hex inverter.
IC SST39SF020A PLCC32
Pin details for the SST39SF020A flash memory.
IC GM5221 PQFP-208 (DVI Input Port)
DVI input port pin details for the GM5221 chip.
IC GM5221 PQFP-208 (RCLK PLL Pins)
RCLK PLL pin details for the GM5221 chip.
IC GM5221 PQFP-208 (Input Video Port)
Input video port pin details for the GM5221 chip.
IC GM5221 PQFP-208 (Analog Input Port)
Analog input port pin details for the GM5221 chip.
IC GM5221 PQFP-208 (System Interface)
System interface pin details for the GM5221 chip.
IC GM5221 PQFP-208 (LVDS Display Interface)
LVDS display interface pin details for the GM5221 chip.
IC GM5221 PQFP-208 (TTL Display Interface)
TTL display interface pin details for the GM5221 chip.
IC GM5221 PQFP-208 (Miscellaneous)
Miscellaneous pin details for the GM5221 chip.
IC SAA5264PS/M3/0104 SDIP52
Pin details for the SAA5264PS/M3/0104 IC.
IC TPA1517NE DIP20
Pin details for the TPA1517NE audio amplifier IC.
IC TVP5146PFP S-PQFP-G80 (Clock Signals)
Clock signal pin details for the TVP5146PFP IC.
IC TVP5146PFP S-PQFP-G80 (Analog Video)
Analog video input pin details for the TVP5146PFP IC.
IC TVP5146PFP S-PQFP-G80 (Digital Video)
Digital video output/input pin details for the TVP5146PFP IC.
IC TVP5146PFP S-PQFP-G80 (Miscellaneous Signals)
Miscellaneous signal pin details for the TVP5146PFP IC.
IC TVP5146PFP S-PQFP-G80 (Host Interface)
Host interface pin details for the TVP5146PFP IC.
IC TVP5146PFP S-PQFP-G80 (Power Supply)
Power supply pin details for the TVP5146PFP IC.
IC TVP5146PFP S-PQFP-G80 (Sync Signals)
Sync signal pin details for the TVP5146PFP IC.

Table of Contents
