Summary of Contents for Simrad PI CATCH

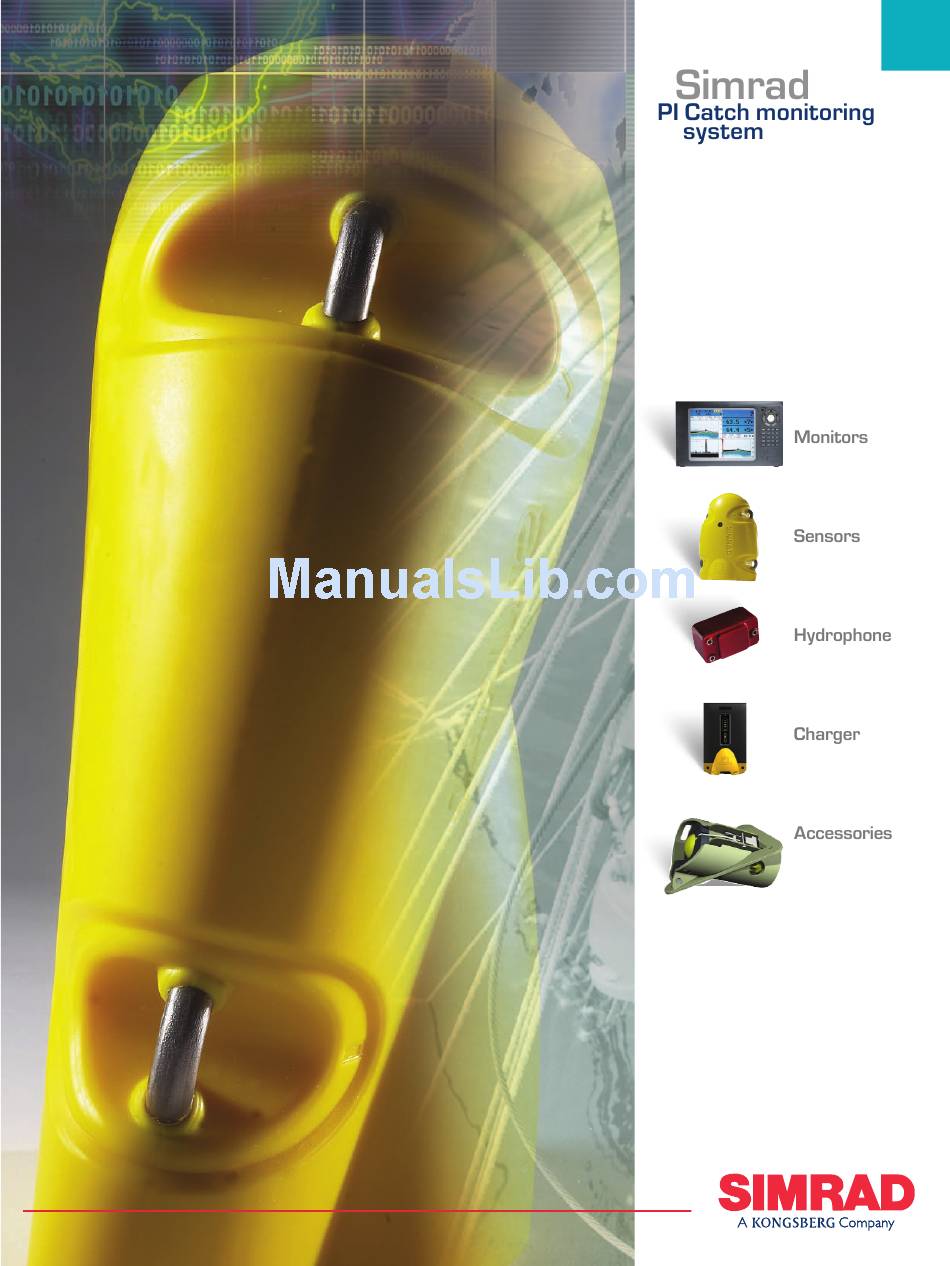

- Page 1 M A X I M I Z I N G Y O U R P E R F O R M A N C E S E A...
- Page 2 PI54 (15”) where the PI32 can receive data from 3 sensors and the PI44/54 can receive data from 6 sensors at the same time. The quality of Simrad echosounders is recognized all over the world and now it is integrated in the PI system.
- Page 3 The spread sensors are measuring the distance between the trawl doors or wings. Spread sensors are vital to ensure correct rigging of the Trawl or Twin Trawl. The stability of the doors is constantly and accurately monitored with the PI spread sensors. Spread sensors monitor the spread and stability between the doors on a single trawl while the Twin Spread sensor is capable of monitoring the spread...
- Page 4 Here is information from be shown graphically on the lower the blue area. The ground line is 3 depth sensors displayed in relation part of the display. passing through a thermo cline. to the fish school on a Simrad SP90 sonar.
- Page 5 This will ensure constant communication during turning and if the trawl Installing the highly acclaimed Simrad transducers is off centre line. A portable hydrophone is also will give you maximum performance from the echo- available for trials and as sounder.
- Page 6 Alarms: Fish, max and min depth *Bottom Back Scattering Strength: -20dB Cable strength: 150 kg *Simrad transducer C38/200 or C50/200 Zoom mode: Bottom and VRM expansion Split screen: Depth and A – scope. Depth and bottom expansion, depth and VRM expansion Input voltage: 12 –...
