Summarization of Contents
LCD DISPLAY
LOW BATTERY ICON
Indicates the battery level is low on the LCD screen.
TRANSMIT (TX) ICON
Shows when the radio is actively transmitting a signal.
eVOX
Indicates when the eVOX hands-free mode is active.
CHANNEL NUMBER
Displays the current radio channel selected.
RECEIVE (RX) ICON
Indicates when the radio is receiving a transmission.
KEY LOCK ICON
Shows that the keypad lock feature is currently enabled.
WX BAND ICON
Indicates when the radio is tuned to a Weather Band channel.
VIBRATE-ALERT ICON
Shows when the Vibrate-Alert feature is activated.
PRIVACY CODE
Displays the selected privacy code for communication.
TRANSMIT POWER LEVEL ICON
Indicates the current transmit power setting (High or Low).

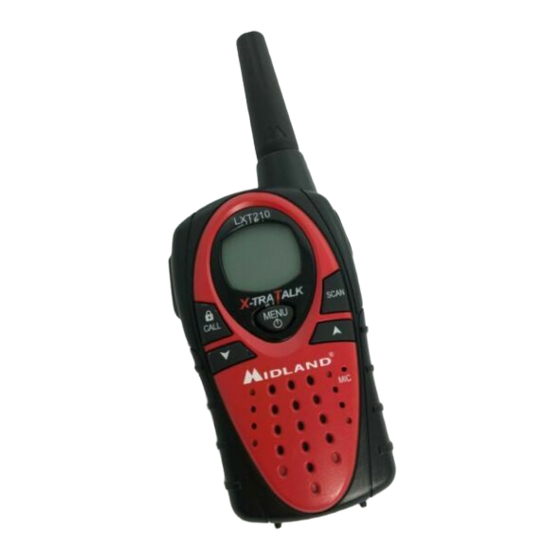

CONTROLS
PTT Button
Press and hold to transmit voice communication.
CALL/LOCK Button
Sends a call tone or toggles the keypad lock function.
MIC
The built-in microphone for voice input.
SPEAKER
The built-in speaker for audio output.
ANTENNA
The radio's external antenna for signal transmission/reception.
EXTERNAL SPEAKER/MIC/CHG. JACK
Port for connecting external audio accessories or charging.
POWER / MENU Button
Turns the radio on/off and accesses menu settings.
MONITOR /SCAN Button
Initiates channel scanning or monitor mode.
UP and DOWN Button
Used to adjust settings within the menu.
OPERATING YOUR RADIO
POWER ON/OFF AND VOLUME
How to turn the radio on/off and adjust the volume level.
TRANSMITTING AND RECEIVING A CALL
Procedures for communicating with other radios.
ABOUT RANGE
Factors influencing the radio's effective transmission range.
TROUBLESHOOTING GUIDE
No Power
Check battery installation and/or replace batteries.
Cannot Receive Messages
Verify channel/privacy codes, range, and obstructions.
Radio is not responding to button presses
Check key lock, reset radio, or ensure mic is set properly.
Display is dim
Recharge or replace batteries.
Charger not functioning
Check contacts, outlet, and battery pack installation.
