11597SD
BL115B92
BL11T92
FL12597
FLL12597
H115B97
H11T92
HURRICANE 12.5SD
LZ1297
LZ1397AK
LZ13597AK
M115T92
M11597
M135B92
MBA13597K
MBA14597K
MBA16107K
MC11T92
MJ135B92
MJ15B97
Instruction manual
Please read these instructions care-
ful ly and make sure you understand
them before using this machine.
Anleitungshandbuch
Bitte lesen Sie diese Anleitungen sorg-
fältig durch und vergewissern Sie sich,
daß Sie diese verstehen, bevor Sie die
Maschine in Betrieb nehmen.
Manuel d'instructions
Merci de lire trés attentivement le man-
uel d'instructions. Assurez-vous d'avoir
tout compris avant d'utiliser ce tracteur.
Manual de las instrucciones
Por favor lea cuidadosamente y com-
prenda estas intrucciones antes de
usar esta maquina.
P1197
P11597
P12107
P12592
P12597
P12597K
P135107
PF135B92
RE115B97
RE125T92
RE135B92
RE135B97
REB12597K
REN11597
REN12597
UN16097SBK
UN115B97
UN135B92
UN145B97
UN15597SBK

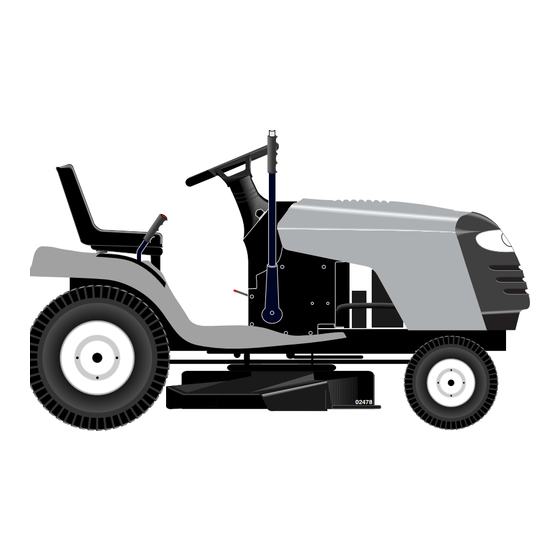

02478
Manuale di istruzioni
Prima di utilizzare la macchina leggete
queste istruzioni con attenzione ed ac-
certatevi di averle comprese bene.
Instructieboekje
Lees deze instructies aandachtig en
zorg dat u ze begrijpt voordat u deze
ma chine gebruikt.
Advertisement
Table of Contents
Related Manuals for McCulloch M115T92
Summarization of Contents
Safety Rules
Training
Read instructions carefully, be familiar with controls and proper use of equipment.
Preparation
Reduce fire risk by inspecting and removing debris before use, during refueling, and after mowing.
Operation
Safe operation practices: engine use in confined spaces, daylight mowing, disengaging attachments.
Maintenance and Storage
Keep equipment tight, never store with petrol indoors, allow engine to cool before storage.
Slope Safety Warning
Do not drive on slopes over 5°. Avoid stopping/starting on slopes. Risk of tipping/rolling over.
Ignition Key Safety
Do not leave ignition key in machine when not in use to prevent unauthorized starting.
Maintenance Safety Warning
Disconnect spark plug wire before any repair, inspection, or maintenance.
Cleaning Safety Warning
Never use gasoline for cleaning. Use degreasing detergent and warm water instead.
Assembly
Steering Wheel Installation
Mount extension shaft, cover, steering wheel, and secure with bolt and washers.
Seat Installation
Remove hardware, pivot seat, place on pan, push to engage bolt, adjust position, tighten bolt.
Gauge Wheel Adjustment
Adjust gauge wheels on flat surface to desired cutting height.
Mulcher Plate Installation
Install mulcher plate over opening, hook latches. Convert to bagging or discharging by removing plate.
Functional Description
Control Panel Overview
Identifies controls: Light switch, throttle, brake/clutch pedal, gear lever, cutting unit control, lift lever, ignition, parking brake.
Light Switch Operation
Controls the operation of the headlights, if equipped.
Throttle Control
Regulates engine revs and blade rotation speed. Sets engine speed to full or idling.
Brake and Clutch Pedal
When pressed, applies brake and disengages motor transmission.
Gear Shift Lever
Controls forward, neutral, and reverse gears. Must be used with clutch pedal.
Cutting Unit Controls
Lever connects/disconnects cutting unit. Lever adjusts cutting unit height.
Ignition Lock
Key positions: OFF, ROS ON, ON, START. Controls engine operation and safety systems.
Parking Brake
Engage by pressing brake pedal and lifting lever. Release by pressing brake pedal.
Choke Control
Pull out for cold engine start. Push in when engine runs smoothly.
Operator Presence and ROS Systems
Check systems are working. Engine stops if operator leaves seat or shifts to reverse with attachment engaged.
Before Starting
Filling Up with Fuel
Use unleaded petrol. Do not overfill. Check cap. Store petrol safely.
Checking Oil Level
Check engine oil level before each run. Ensure tractor is horizontal.
Tire Air Pressure Check
Check tire pressure regularly. Front tires 1 bar, rear tires 0.8 bar.
Driving
Starting the Motor
Ensure cutting unit is in transport position and disconnected. Press clutch/brake pedal, set gear lever to neutral.
Choke Control Operation
Pull out for cold engine start. Push in when engine runs smoothly.
Gas Control Operation
Adjust for warm engine. Half-way to full gas position for cutting.
Ignition Key Operation
Turn key to START. Do not crank starter motor more than 5 seconds. Return key to ON after engine starts.
Driving the Tractor
Lower cutting unit, connect unit, choose speed, release brake/clutch pedal slowly.
Cutting Tips
Clear lawn of stones. Start with high cutting height, reduce as needed. Avoid wet grass.
Cutting Techniques
Cut close to trees/bushes on left. Turn right to throw grass away from beds.
Switching Off the Engine
Disengage attachment clutch, set throttle, lift unit, turn key to STOP.
Maintenance, Adjustment
Pre-Service Safety
Disconnect spark plug wire before any repair, inspection, or maintenance.
Cleaning Procedures
Do not use high pressure washer. Water can enter engine and transmission.
Engine Hood Maintenance
Raise hood, unsnap connector, grasp sides, tilt forward, lift off.
Service Record
Log dates for regular service tasks: oil change, lubrication, checks, cleaning, replacements.
Blade Maintenance
Keep blades sharp. Replace bent/damaged blades. Sharpen equally to avoid imbalance.
Brake Check
Check stopping distance. Verify neutral transaxle and rear wheel lock.
Cutting Unit Dismantling
Work from right side. Remove belt, springs, guide, axle taps.
Cutting Unit Assembly
Push unit under machine, open to right. Assemble in reverse order.
Drive Belt Replacement
Remove belt from pulleys. Dismantle unit. Mount new belt in reverse order. Check guides.
Cutting Unit Adjustment
Adjust side-to-side. Measure distances A & B. Ensure front edge is 10mm lower than back edge.
Transaxle Gear Shift Lever Neutral Adjustment
Adjust gear shift lever to neutral if needed. Loosen bolt, position lever, tighten bolt.
Troubleshooting
Engine Will Not Start
Check fuel, plug, connections, carburetor, fuel pipe for issues.
Start Motor Will Not Turn Engine
Check battery, contacts, lever position, fuse, ignition lock, safety contact, pedal.
Engine Runs Unevenly
Check gear, plug, carburetor, air filter, fuel vent, ignition setting, fuel pipe.
Engine Overheats
Check overload, air inlet/cooling fins, fan, oil level, ignition, plug.
Battery Does Not Charge
Check fuse, cells, battery/cable contacts.
Uneven Cutting Results
Check blades, cutting unit skew, grass condition, tire pressure, gear, drive belt.
Storage
End of Season Procedures
Clean machine, touch up paint, change oil, drain fuel tank, remove spark plug, remove battery, store indoors.
Cleaning Safety
Never use gasoline for cleaning. Use degreasing detergent and warm water instead.
Service Information
Provide purchase date, model, type, serial number. Use original parts. Contact dealer.
