OTC SPX 7180 Parts List & Operating Instructions

SPX Corporation
655 Eisenhower Drive
Owatonna, MN 55060-0995 USA
Phone: (507) 455-7000
Tech. Serv.: (800) 533-6127
Fax: (800) 955-8329
Order Entry: (800) 533-6127
Fax: (800) 283-8665
International Sales: (507) 455-7290
Fax: (507) 455-7063

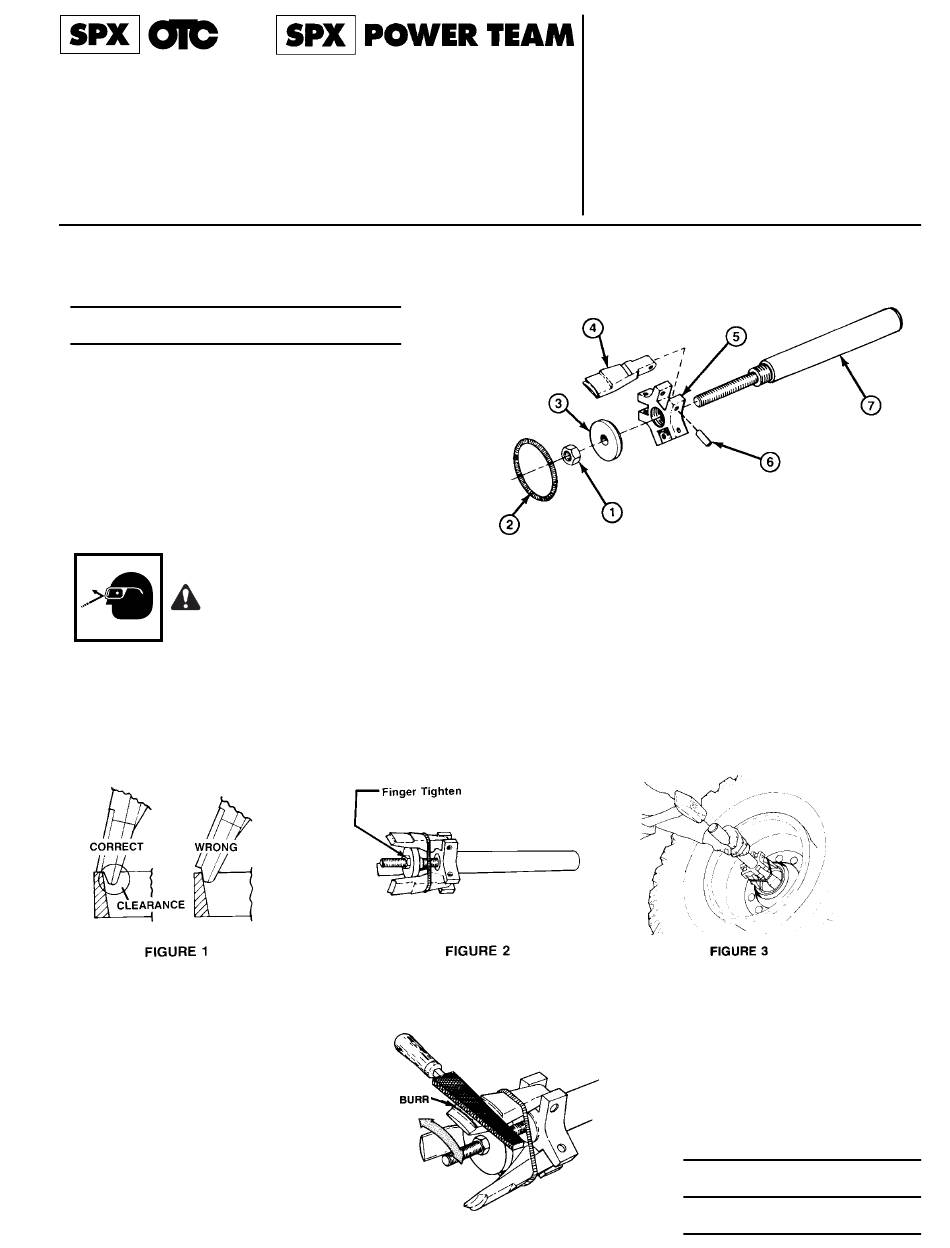

Universal Bearing Cup Installer
Item Part No.
No. No. Req'd
1 10213 1
2 207561 1
3 210583 1
4 52038 3
5 305130 1
6 209624 3
7 305129 1
8 209963 1
WARNING: Wear eye protection that meets the requirements of ANSI Z87.1 and OSHA.
1. Turn the expander to the left or right to adjust the installer jaw diameter to the approximate same size
as the bearing cup inside diameter. See Figure 1 and 2.
2. Finger tighten the nut to prevent the expander from moving once the jaw diameter has been set.
3. Install the bearing cup. See Figure 3.
Deburr the edges of the installer jaws as needed by drawing a file across the shoulders as shown.
Litho in USA
SPX Corporation- Fluid Power
5885 11th Street
Rockford, IL 61109-3699 USA
Phone: (815) 874-5556
Fax:(815)874-7853
Tech. Services: (800) 477-8326
Fax: (800) 765-8326
Order Entry: (800) 541-1418
Fax (800) 288-7031
Internet Address:
http://www.powerteam.com
Capacity: 3-5/8" O.D. – 6-1/2" O.D.
Description
Hex Nut (5/8-18)
Extension Spring
Expander
Jaw
3 Way Head
Pin
Handle
Decal (not shown)
BEARING CUP INSTALLATION
MAINTENANCE
Form No. 104916
Parts List &
Operating Instructions
for:
Sheet No.
Issue Date:
7180
1 of 1
Rev. 6-25-01
