Moultrie MFG-13076 Instructions

A

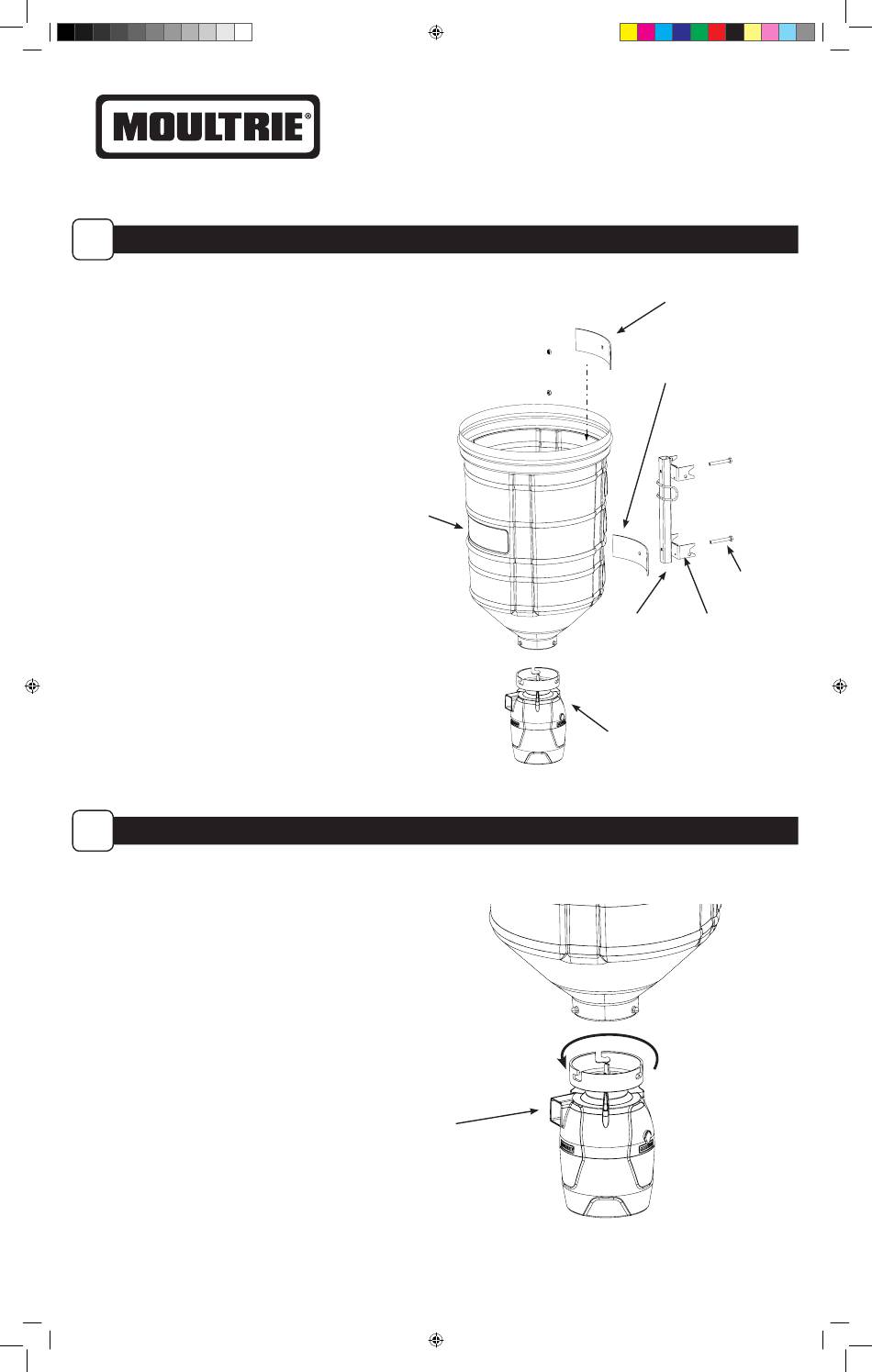

ATTACH TREE BRACKET TO HOPPER
Insert a 5/16" x 2 ½" black oxide bolt through each
standoff bracket and into the square tube, each bolt
should continue through a curved plate and be
secured to inside of hopper with a washer and nut.
Note: The top curved plate should be placed
on the inside of the hopper, and the
bottom curved plate should be placed
on the outside of the hopper.
BOLT PACK x1 MFP80117
FEEDER KIT MFP80104
HOPPER MFP80113
CURVED PLATE x2 MFHP81687
B
MOUNT KIT TO HOPPER
Slide pegs on base of hopper into slots on
feeder kit shroud. Rotate counter-clockwise
to lock into place.
Feed chute should be oriented away from
mounting hardware on hopper.
MFG-13076_15-Gallon QL Directional_Manual-ENGLISH_3-21-18.indd 1
Instructions for 15-Gallon Directional Feeder
THANK YOU for your purchase of the 15-Gallon Directional Feeder. If
you should have any questions about this product or any other Moultrie
product, please contact us using the information on the back of this sheet.
To help us to better serve you, please submit your warranty information
online at http://www.moultriefeeders.com/warranty
Hopper
Feed
Chute
Top (Inside)
Curved Plate
Bottom (Outside)
Curved Plate
Bolt
Square Standoff
Tube
Feeder Kit
Figure 1
