WESTBRASS 793516MOCP-100 Replacement

Tip-Toe Cartridge Replacement
TO CLEAN:
monia, bleach, grease-cutters or other surfactant chemicals. Soft Scrub, Dawn Liquid
Soap, Palmolive or any other combined cleaners contain certain chemical compo-
using any sponge with a scouring pad to clean your product. It is not necessary to rub
hard to remove spots.
WESTBRASS
Fine Decorative Plumbing Since 1935

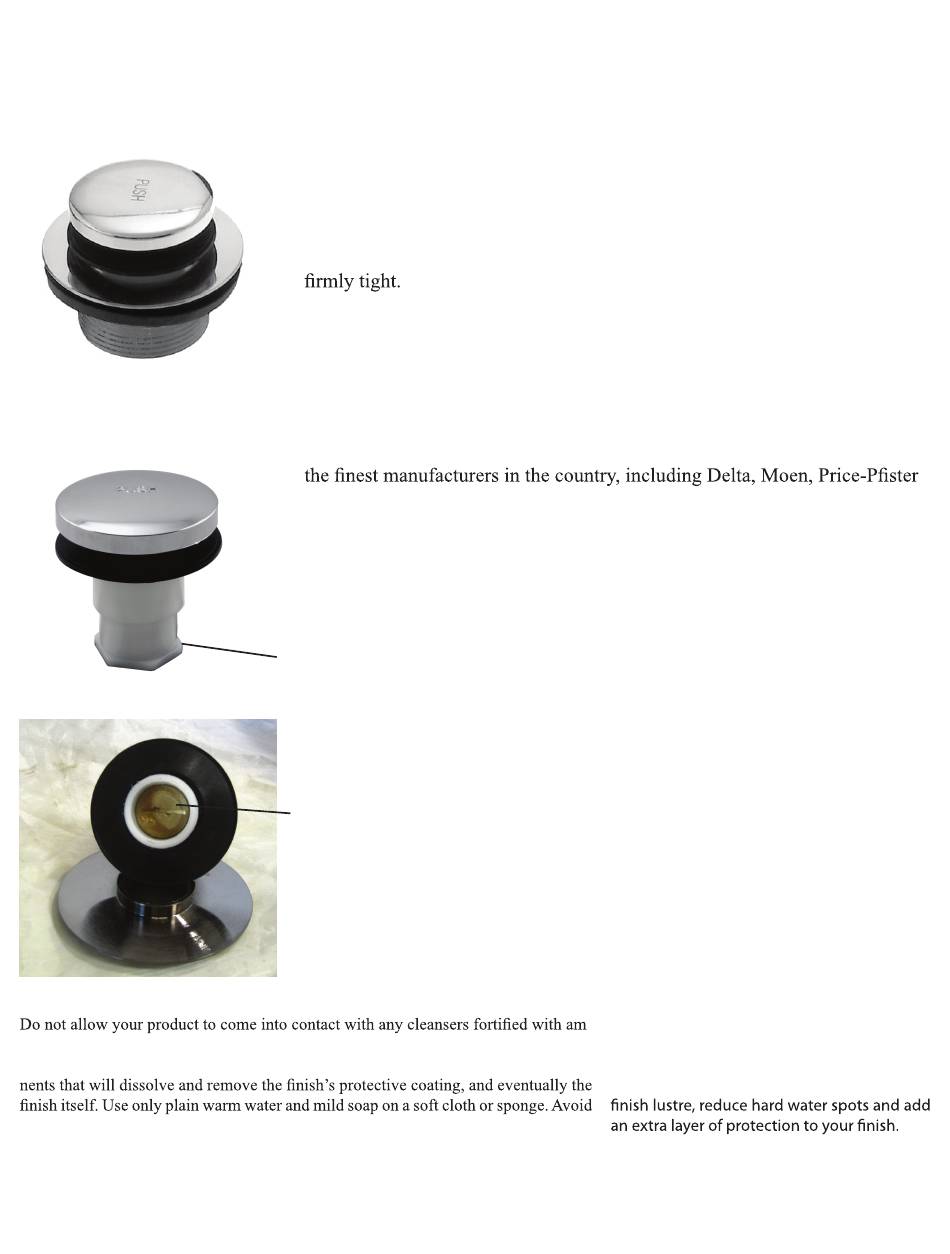

1. Grab the mushroom cap and rotate it counter-clockwise to remove the cap
and tip toe mechanism from the bathtub strainer.
2. Unscrew the white plastic tip toe cartridge from the cover.
3. Turn the large brass screw clockwise, while holding the bottom of the
plastic mechanism until just tight. Use no force. Do not make the screw
4. Thread the mechanism into the shoe in the tub and thread on cover.
Operate the mechanism several times to ensure it is moving freely.
Westbrass warrants all tip toe drains for 1 year. This includes the tip-toe
cartridge, cap, seal washer and strainer body. The cartridge and
washer are common plumbing items with a vast history of use by many of
and Hydro Systems. Westbrass' cartridge attaches with a 3/8" - 16 screw for
the 79338MOCP or a 5/16"- 18 screw for the 793516MOCP. The top plastic
cover is removable if required (1"-20 thread) to attach a different color top.
Hold
Here
Tighten
Here
2429 East Olympic Blvd. Los Angeles, CA 90021
213-627-8441 • FAX 213-627-2844 • www.westbrass.com
TO PROTECT:
-
An occasional application of Carnauba wax
(without cleaners), like that found in Flitz Fau-
cet Wax, Turtle Wax for Clear Coat Car Finishes
or McGuire's Premium Wax, will enhance the
