Vehicle Application: Mustang Convertible 2005-2014
2005-2014 MUSTANG CONVERTIBLE TOP
INSTALLATION TIPS
Tools Required: Flat-nose plier, Torx head driver and socket/ratchet, rivet tool with 1/2" x 5/32" rivets, 3' stiff wire
hook (2.5mm dia.), plier wire cutter, medium size flat-tip screwdriver, drill with 5/32" drill bit, pick hook and fastener
clip removal tool.
TOP REMOVAL

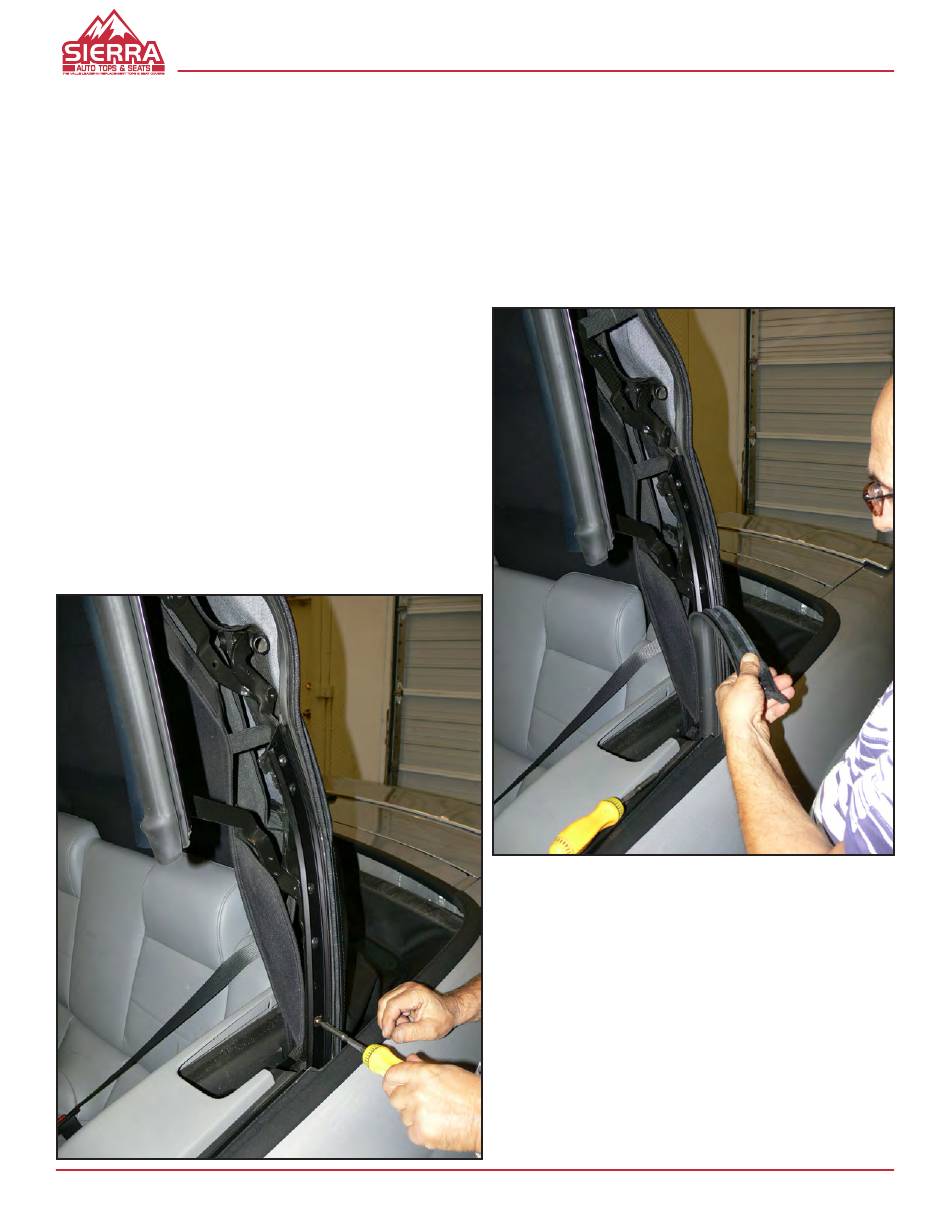

1 Cycle Top to mid-open position and remove
quarter (B-pillar) rubber seals from frame.
2
Remove Torx screws to release quarter
(B-pillar) rubber seals brackets from frame.
Installation Tips: Mustang Convertible 2005-2014
1
© Sierra Auto Tops & Seats
Advertisement
Related Manuals for Sierra 10-11-MUS-024
Summary of Contents for Sierra 10-11-MUS-024
- Page 1 TOP REMOVAL 1 Cycle Top to mid-open position and remove quarter (B-pillar) rubber seals from frame. Remove Torx screws to release quarter (B-pillar) rubber seals brackets from frame. Installation Tips: Mustang Convertible 2005-2014 © Sierra Auto Tops & Seats...
- Page 2 Vehicle Application: Mustang Convertible 2005-2014 3,4 Remove fastener clips to release Top’s quarter retainers from frame. 5 Remove fastener clips to release side front rubber seals from frame. Installation Tips: Mustang Convertible 2005-2014 © Sierra Auto Tops & Seats...
- Page 3 7 Use a flat head screw driver to carefully remove staples to release Top from frame. 8 Remove Torx screws to release the side front rubber seal brackets from frame. Installation Tips: Mustang Convertible 2005-2014 © Sierra Auto Tops & Seats...
- Page 4 Vehicle Application: Mustang Convertible 2005-2014 9,10 Remove Torx screws to release quarter and side support straps from frame. Installation Tips: Mustang Convertible 2005-2014 © Sierra Auto Tops & Seats...
- Page 5 11,12 Use a drill bit or flat-head screw driver to cut the rivet heads to release tension cables from frame. 13 Remove Torx screws to release header panel from frame. Installation Tips: Mustang Convertible 2005-2014 © Sierra Auto Tops & Seats...
- Page 6 14 Through the quarter panels, detach the fastener clips to release support flaps from vehicle. 15,16 Remove Torx screws to release headliner quarter flaps and unclip defroster plug from window. Installation Tips: Mustang Convertible 2005-2014 © Sierra Auto Tops & Seats...
- Page 7 18 Remove Torx screws to release quarter pillar rubber seal brackets from frame. 19 Protecting the vehicle’s paint, carefully force out base bow from Top compartment. Installation Tips: Mustang Convertible 2005-2014 © Sierra Auto Tops & Seats...
- Page 8 Vehicle Application: Mustang Convertible 2005-2014 20 Carefully remove staples to release Top from base bow 21,22 Remove tension cables ends for base bow support springs and unclip cables from support bracket Installation Tips: Mustang Convertible 2005-2014 © Sierra Auto Tops & Seats...
- Page 9 Vehicle Application: Mustang Convertible 2005-2014 23 Completely remove Top from frame TOP INSTALL 24 Transfer webbing strap from old Top and use the 3’ stiff wire hook to insert strap through sleeve Installation Tips: Mustang Convertible 2005-2014 © Sierra Auto Tops & Seats...
- Page 10 25,26 Connect Top’s crossbow plastic retainers to the 2nd, 3rd and 4th crossbows. 27 Carefully use the 3’ stiff wire hook to insert the side tension cables through Top’s sleeves. Installation Tips: Mustang Convertible 2005-2014 © Sierra Auto Tops & Seats...
- Page 11 Vehicle Application: Mustang Convertible 2005-2014 28,29 Guide tension cables into support brackets and connect cable ends to support springs. 30,31 Staple the existing Top lining and frame webbing straps to base bow. Installation Tips: Mustang Convertible 2005-2014 © Sierra Auto Tops & Seats...
- Page 12 33,34 Staple left or right side first, then opposite side and continue to surround ends. Installation Tips: Mustang Convertible 2005-2014 © Sierra Auto Tops & Seats...
- Page 13 Vehicle Application: Mustang Convertible 2005-2014 35 Carefully position the base bow into the Top compartment. 36 Install Torx screws to secure base bow to vehicle. Installation Tips: Mustang Convertible 2005-2014 © Sierra Auto Tops & Seats...
- Page 14 Vehicle Application: Mustang Convertible 2005-2014 37,38 Install Torx screws to secure quarter pillar rubber seal brackets and Top’s quarter support straps to frame Installation Tips: Mustang Convertible 2005-2014 © Sierra Auto Tops & Seats...
- Page 15 Vehicle Application: Mustang Convertible 2005-2014 39 Position Top’s quarter retainers to 40 Install fastener clips through the frame and install fasteners to secure. quarter panels to secure Top’s flaps to vehicle. Installation Tips: Mustang Convertible 2005-2014 © Sierra Auto Tops & Seats...
- Page 16 42 Place side tension cable brackets to side support straps to frame. frame and rivet to secure 43 Install Torx screws to secure Top’s additional side front support straps to frame Installation Tips: Mustang Convertible 2005-2014 © Sierra Auto Tops & Seats...
- Page 17 44 Install quarter pillar rubber seals to frame. 45 Place existing header panel to frame and install Torx screws to secure. 46 Rivet Top’s sewn front side plastic retainers to frame. Installation Tips: Mustang Convertible 2005-2014 © Sierra Auto Tops & Seats...
- Page 18 47 Wrap over Top’s front corner extended edge binding and carefully staple to frame. 48,49 Wrap over Top’s front edge, postition support rail and install Torx screws to secure Installation Tips: Mustang Convertible 2005-2014 © Sierra Auto Tops & Seats...
- Page 19 Vehicle Application: Mustang Convertible 2005-2014 50,51 Secure the front side seal brackets to frame with Torx screws and install rubber seals Installation Tips: Mustang Convertible 2005-2014 © Sierra Auto Tops & Seats...
