Convertible Top Installation Guide

1994‐2004 Ford Mustang

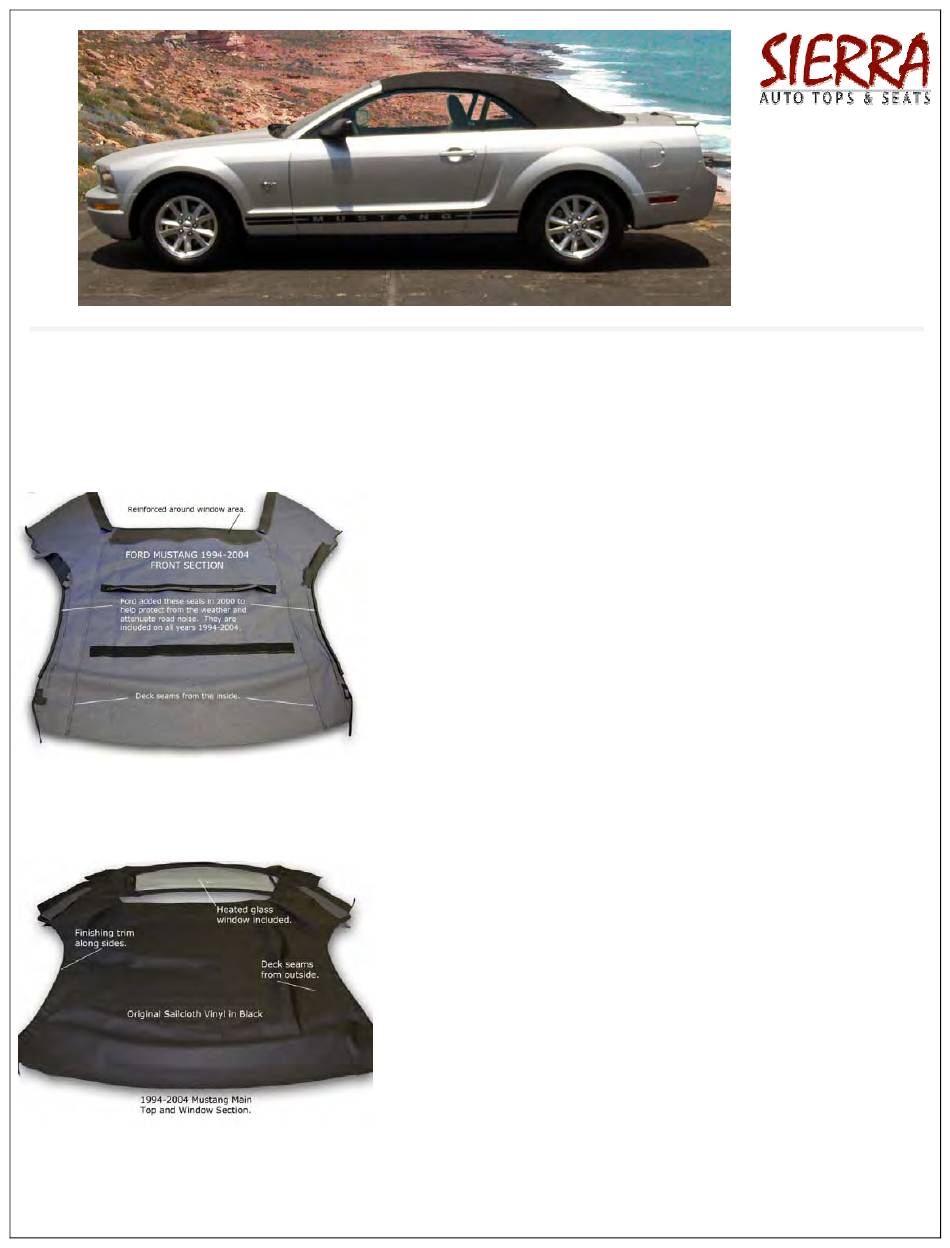

WHAT'S INCLUDED

A new

2005 Mustang is a two piece top with a heated glass window

The glass window includes electrical defroster wiring

connectors to attach to your existing wire harness.

TOOLS REQUIRED

These instructions are provided as a guide to assist the professional install

this product and no representations or warranties are implied as to their

completeness and accuracy. From time to time, modifications to the design

of the product may occur, and this guide may not reflect all such

modifications. If you have any questions about the product or this

installation guide please contact the reseller from whom you purchased this

product.

WE PROVIDE THESE INSTRUCTIONS AS A GUIDE ONLY AND

RECOMMEND YOU USE A PROFESSIONAL INSTALLER. SIERRA NOR

ITS DISTRIBUTORS, AFFILIATES, OR RESELLERS ARE RESPONSIBLE FOR

DAMAGE TO YOUR VEHICLE OR DAMAGE TO THE PRODUCT THAT

MAY OCCUR DURING INSTALLATION.

SIERRA Auto Tops & Seats

Heavy duty stapler + 6mm, 8mm, and 10mm staples.

Various screwdrivers.

12-point, 13mm star socket

3" long stiff wire

Pliers & drill

Contact cement spray adhesive

convertible top for the 1994-

Need help?

Do you have a question about the Convertible Top and is the answer not in the manual?

Questions and answers
