OTC SPX 528853 Parts List & Operating Instructions

This adapter is used with the 1750 or the 1750A (6,000 lb.) engine repair stand
Attach the Adapters to the Engine Repair Stand
1. Align the holes on the 528974 adapter
to the holes on the engine.
2. Use screws provided in the 528853 kit
to attach the 528974 adapter to the
engine. See illustration at right for
placement of screws. Securely tighten.

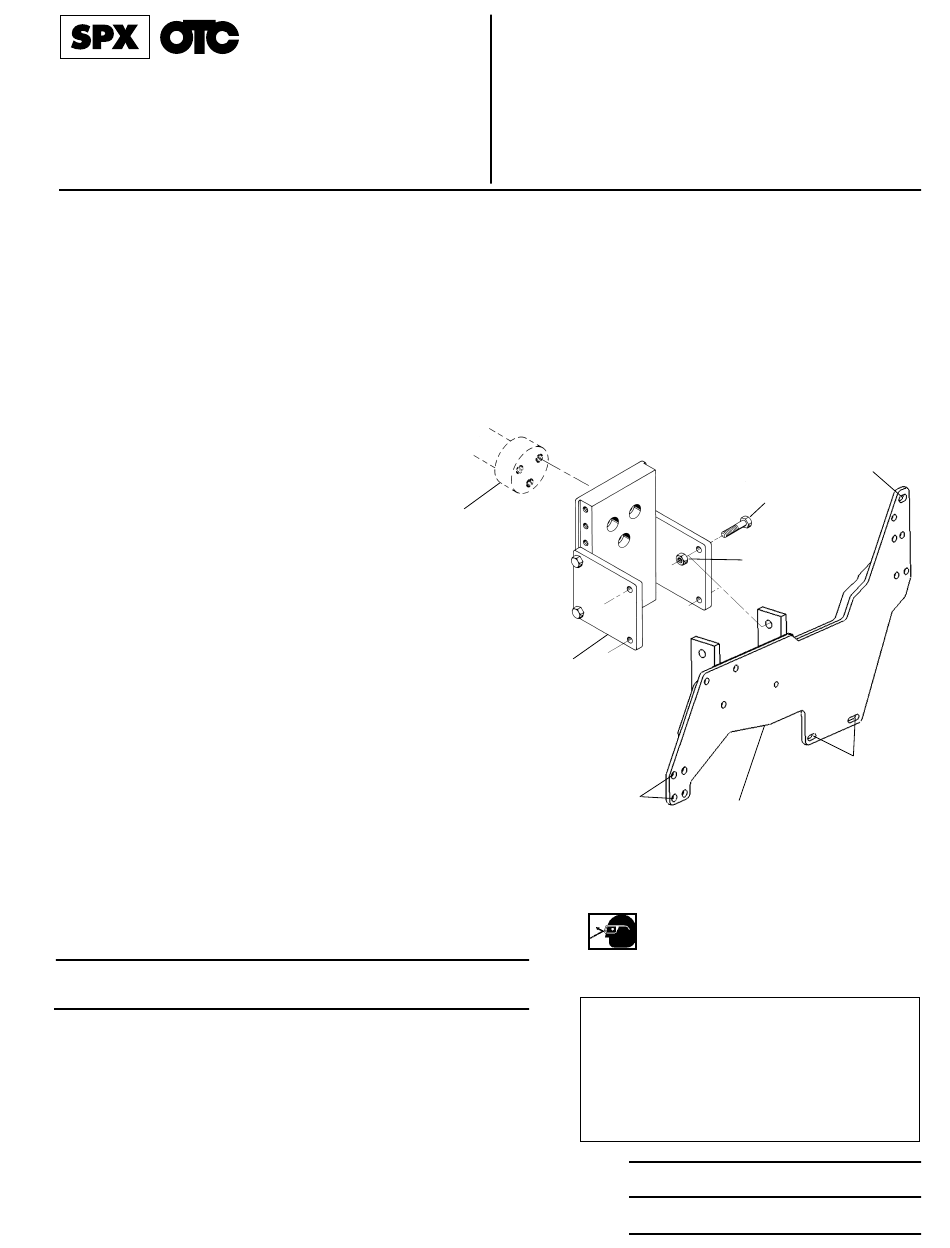

3. Align the 205061 adapter to the 528974
adapter (as shown).
4. Use the four hex head cap screws
(19656) and the four hex nuts (12306)
provided to attach the 528974 adapter
to the 205061 adapter plate.
5. Securely tighten all screws.
Item Part No.
No. No. Req'd.
1 12306 4
2 19656 4
3 218532 3
4 RS-9100-76 2
5 528974 1
© 2004 SPX Corporation
SPX Corporation
655 Eisenhower Drive
Owatonna, MN 55060-0995 USA
Phone: (507) 455-7000
Tech. Serv.: (800) 533-6127
Fax: (800) 955-8329
Order Entry: (800) 533-6127
Fax: (800) 283-8665
International Sales: (507) 455-7223
Fax: (507) 455-7063
Engine Mounting Adapter
Application: TD61 and TD71 Volvo Engines
and the 205061 Universal Adapter Plate Assembly.
Parts List
Description
Hex Nut
Hex Head Cap Screw
5/8-11 x 1-1/2 Lg.
Hex Head Cap Screw
M8 x 1.25 (6g) x 30 mm lg.
Hex Head Cap Screw
Grade 10.9; M12 x 12.75
(6g) x 45 mm lg.
Volvo Engine Mounting Weldment
Parts List &
Operating Instructions
for:
17850 or 1750A
Engine Repair
Stand
205061 Universal
Adapter Plate
Assembly
(not included)
RS-9100-76
Refer to any operating instructions included with the
product for detailed information about operation, testing,
disassembly, reassembly, and preventive maintenance.
Items found in this parts list have been carefully tested
and selected by OTC. Therefore: Use only OTC
replacement parts!
Additional questions can be directed to the OTC Technical
Services Dept. at 1-800-533-6127.
Form No. 528973
19656
12306
528974 Engine
Mounting
Weldment
WARNING: To prevent personal
injury, wear eye protection that
meets ANSI Z87.1 and OSHA
standards.
1 of 1
Sheet No.
Issue Date: November 4, 2004 Rev. A
528853
218532
218532
