Burnaby VERSATILE GAS PLUG VGP-G0101-EXT-38 Installation Instructions

VERSATILE GAS PLUG
TM
INSTALLATION INSTRUCTIONS
1. This device shall be installed in accordance with local codes or, in the absence of local codes, in accordance with the National Fuel Gas
Code ANSI Z223.1/NFPA54, or the Natural Gas & Propane Installation Code, CSA B149.1, as applicable.
2. Test all piping joints inside the gas outlet box as per B149.1 or B149.2
3. This optional ABS enclosure is designed to be able to install a Gas Plug™ connection in exterior walls, such as brick and
surfaces that require the gas supply piping to enter the enclosure from the rear It comes complete with brick ties for use in
those applications. It also comes with three plugs for use in the top inlet, drain outlet and rear sleeve if required.
4. Depending on the surface finish, but in the case of brick, install an ABS sleeve between the rear of the box to a location inside the wall
cavity so the supply piping can be installed inside this sleeve and can be sealed afterwards. It is recommended to seal both areas in the
rough in box where the gas line enters, and on the inside of the wall cavity. Refer to building envelope regulation for any further sealing
requirements. Attach the sleeve to box using Loctite-414 supplied or equivalent.
5. You will need to coordinate the installation of the rough in box with the brick layer, so as to be able to put the hole through the sheating
for the ABS sleeve (gas line sleeve), or make sure the brick layer understands he needs to put a hole in the sheating before finishing the
installation of the rough in box.
Once the rough in box is installed, proceed to install the Gas Plug assembly and pipe to the meter or main gas line. Note - keep
6.
the assembly positioned to allow the connection of the nipple into the coupling - see "top view" picture above
Pressure test all piping including the joints in the Gas Plug rough in box for tightness
7.
Note: Make sure that the regulators in the 2 PSIG outlets are not exposed to more than 2 PSIG by using the shut off valve to isolate it.
If all joints are tight, install the rough in box cover. This will keep debris out of the box until the surface has been completed
8.
9. Remove cover and discard. Install the stainless steel door and frame.
Instruct end user on the operation, never leave the male plug in the coupling without being hooked up to an appliance.
10.
VGP-EXT-0122
2190-580 NICOLA AVE, PORT COQUITLAM, B.C., V3B 0P2 TEL: (604) 877-1599 • FAX: (604) 875-6776
EXTERIOR
BURNABY MANUFACTURING LTD.
EMAIL: info@bbymfg.com • WEB www.bbymfg.com
TM
ANSI Z21.90-2019
CSA 6.24 2019

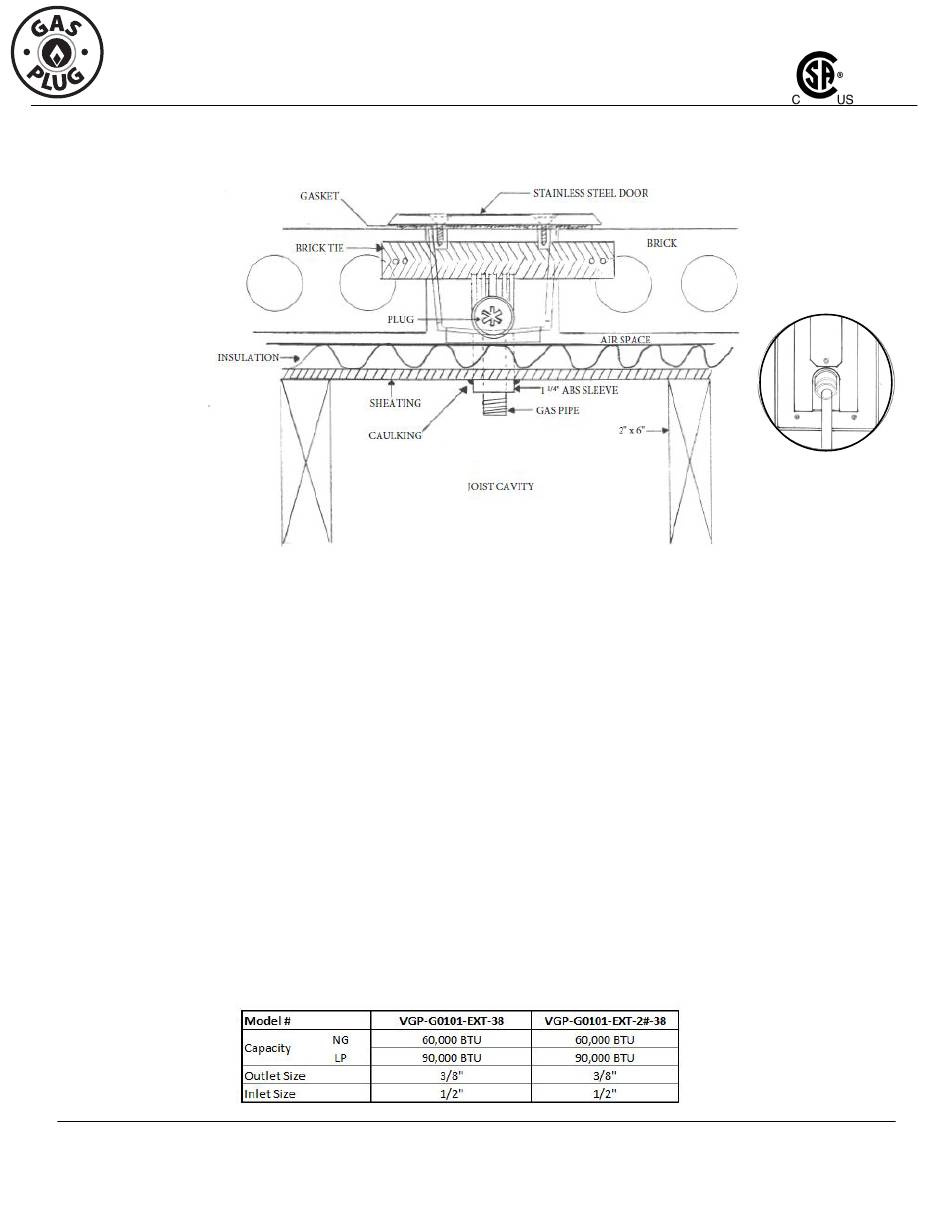

top view
