Burnaby VERSATILE GAS PLUG VGP-G0101-WD-38 Installation Instructions

VERSATILE GAS PLUG
TM
INSTALLATION INSTRUCTIONS
1. This device shall be installed in accordance with local codes or, in the absence of local codes, in accordance with the National Fuel Gas
Code ANSI Z223.1/NFPA54, or the Natural Gas & Propane Installation Code, CSA B149.1, as applicable.
2. Cut a hole in the deck 4 5/8" x 12 1/2" or mount the rough in box on the deck structure, with the top of the box allowing for the
decking, with the screws provided.
Install the Gas Plug c/w piping, keeping in mind to enter the box with the piping on the side with a ridge to sleeve connection (not
3.
the drainage side, flush to box) and the required distance for the hose assembly to come througth the small sliding door panel. The
edge of the coupling should be no closer than 1" and not further away than 1 7/16" from the back side of the rough in box. If
drainage outlet is piped to a drain, use the Loctite-414 supplied (or equivalent) for the first connection.
4. Test all pipe joints inside the rough in box as per CSA B149.1 or B149.2 or National Guel Gas Code.
5. When tightness of pipe joints is acheived, secure the Gas Plug assembly with the pipe clamp and screws provided.
6. If the decking is not finished, install the rough in cap with the four screws provided to keep debris out of the box during the decking
installation.
7. When the decking is complete, remove and discard the cap and install the stainless steel door and cover with the remaining four screws.
8. Caution:
A) Never leave the male plug in the coupling
B) Always leave the manual valve in the closed position when not in use
9. Please Note: This unit is designed to have the small slide access door open completely when hooked up to the appliance. If there is
excessive movement of the appliance (more than once after hookup), we recommend you install your appliance connector to a minimum
4" long steel nipple so that the hose or connector is completely out of the box. This will eliminate excessive wear on the hose.
10. The Versatile Gas Plug is designed for human foot traffic only and should be kept out of walk way areas. If heavy loads such as pallet
jacks and dollies are expected to go over these Gas Plugs, we would recommend a custom door to suite the appliacation.
VGP-WD-0122
3868 COMMERCIAL ST , VANCOUVER, B.C. CANADA V 5N 4G2 TEL: (604) 877-1599 • FAX: (604) 875-6776
2190-580 NICOLA AVE, PORT COQUITLAM, B.C. CANADA V3B 0P2 TEL: (604) 877-1599 • FAX: (604) 875-6776

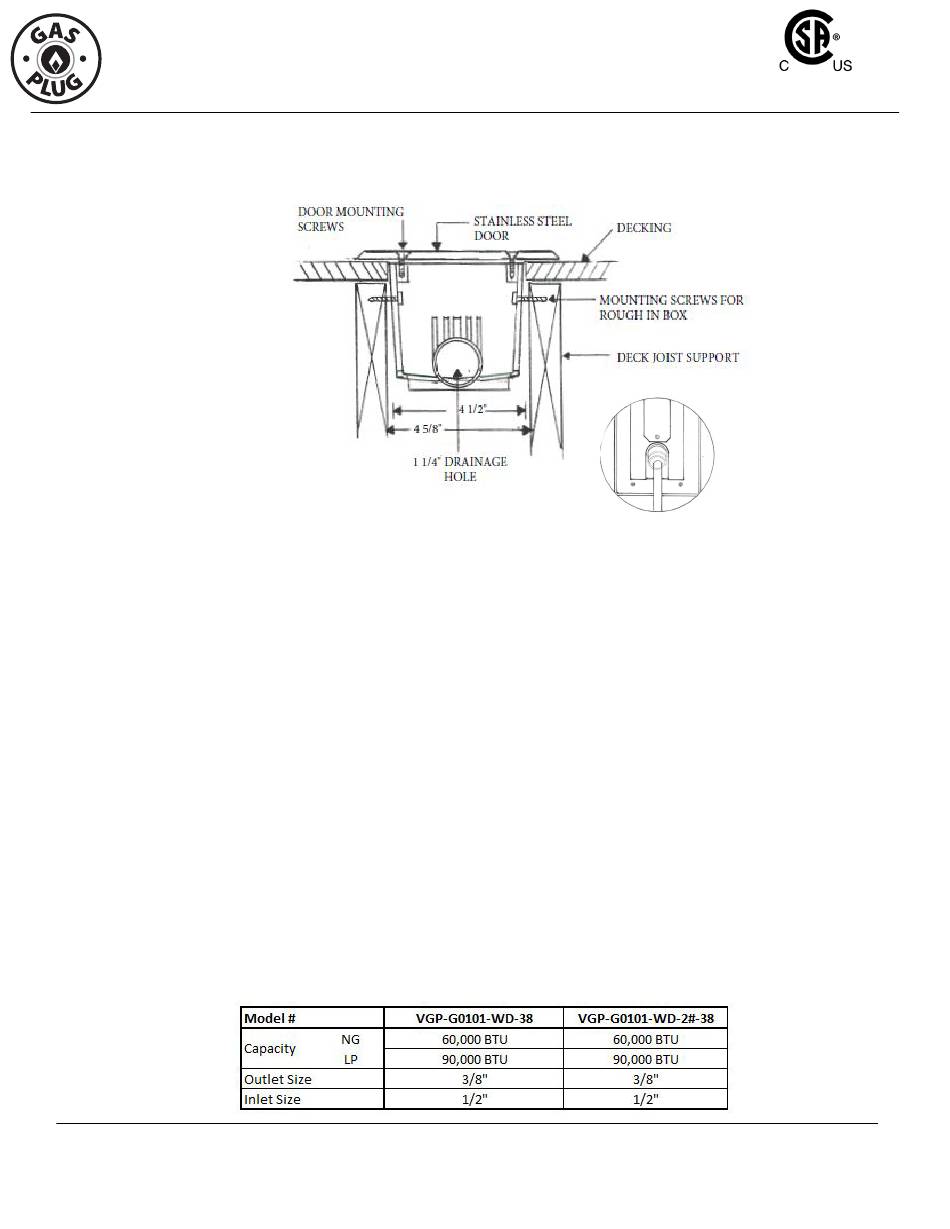

WOOD DECK BOX
BURNABY MANUFACTURING LTD.
EMAIL: info@bbymfg.com • WEB www.bbymfg.com
ANSI Z21.90-2019
CSA 6.24 2019
TM
TOP VIEW
