How to use CableCreation CL0061 and CL0087

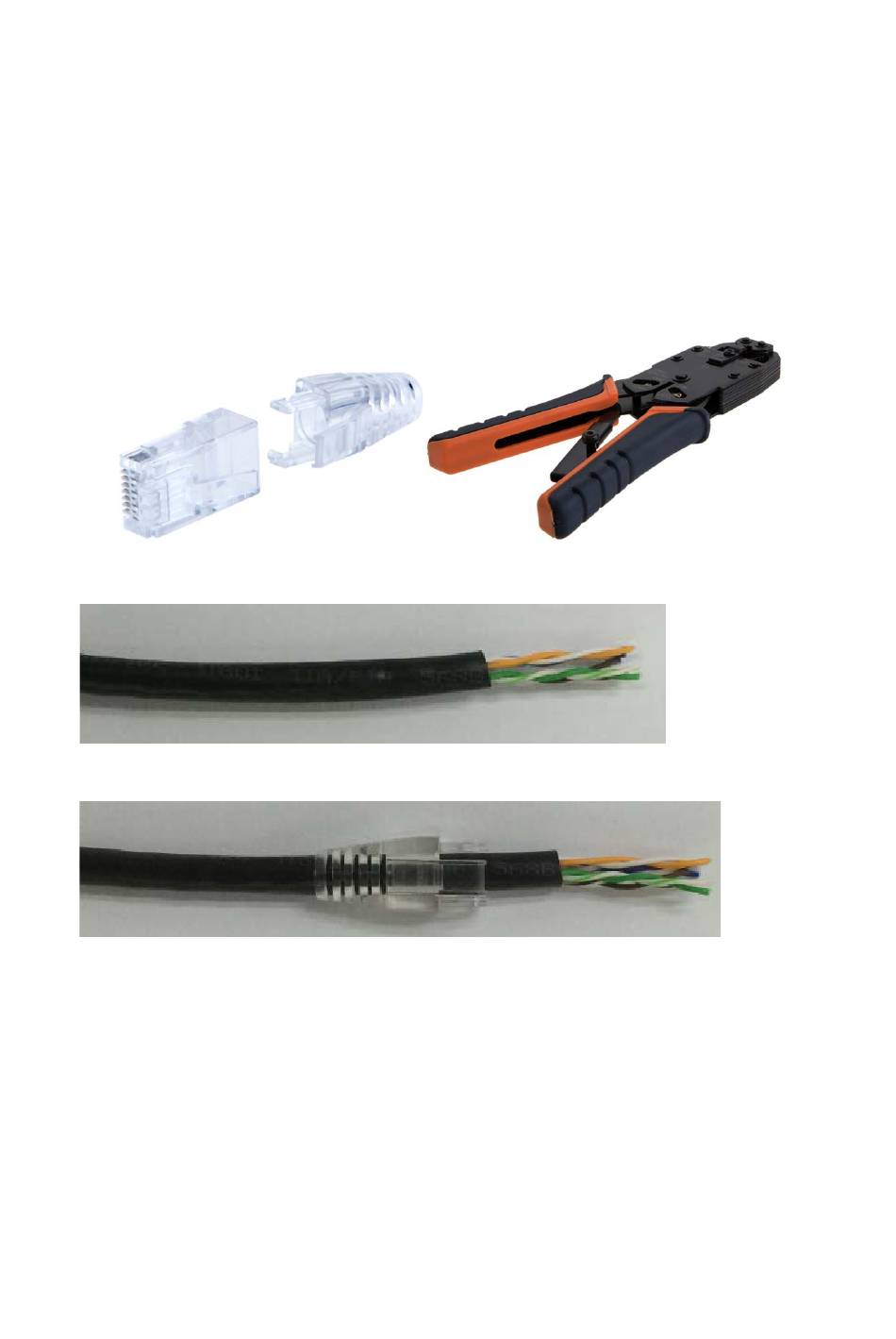

Here you need the following tools. CableCreation CL0061(Cat6a
Plugs and hook connector) and CL0087(crimp tool)
Step 1: Cut the jacket of Cat6a cable
Step 2: Put the hook connector on the cable
Step 3: Array the T568B wiring (You can also choose T568A if
you need)
Advertisement
Related Manuals for CableCreation CL0061
Summary of Contents for CableCreation CL0061
- Page 1 How to use CableCreation CL0061 and CL0087 Here you need the following tools. CableCreation CL0061(Cat6a Plugs and hook connector) and CL0087(crimp tool) Step 1: Cut the jacket of Cat6a cable Step 2: Put the hook connector on the cable Step 3: Array the T568B wiring (You can also choose T568A if...
- Page 2 (refer WIKIPEDIA https://en.wikipedia.org/wiki/Category_5_cable) (refer WIKIPEDIA https://en.wikipedia.org/wiki/Category_5_cable) Step 4: Connect the hook connector and Cat6a plugs together...
- Page 3 Step 5: Use the crimp tool to press the plug and the hook connector Then the job is done. More questions, you can email to support@cablecreation.com...
