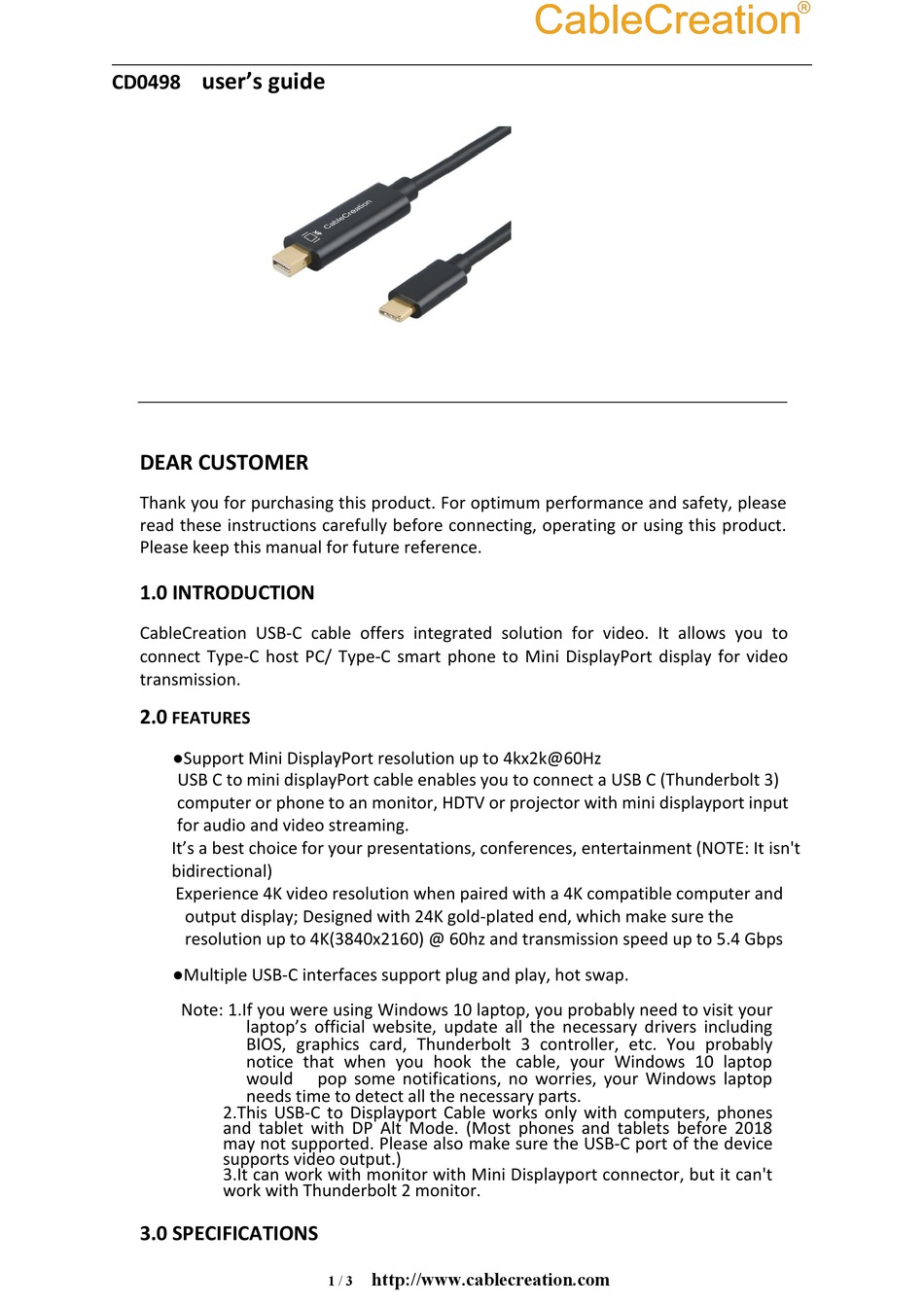

CableCreation CD0498 User Manual

user's guide
CD0498
DEAR CUSTOMER
Thank you for purchasing this product. For optimum performance and safety, please
read these instructions carefully before connecting, operating or using this product.
Please keep this manual for future reference.

1.0 INTRODUCTION

CableCreation USB-C cable offers integrated solution for video. It allows you to
connect Type-C host PC/ Type-C smart phone to Mini DisplayPort display for video
transmission.
2.0
FEATURES
●Support Mini DisplayPort resolution up to 4kx2k@60Hz
USB C to mini displayPort cable enables you to connect a USB C (Thunderbolt 3)

computer or phone to an monitor, HDTV or projector with mini displayport input
for audio and video streaming.
It's a best choice for your presentations, conferences, entertainment (NOTE: It isn't
bidirectional)
Experience 4K video resolution when paired with a 4K compatible computer and
output display; Designed with 24K gold-plated end, which make sure the
resolution up to 4K(3840x2160) @ 60hz and transmission speed up to 5.4 Gbps
●Multiple USB-C interfaces support plug and play, hot swap.
Note: 1.If you were using Windows 10 laptop, you probably need to visit your
laptop's official website, update all the necessary drivers including
BIOS, graphics card, Thunderbolt 3 controller, etc. You probably
notice that when you hook the cable, your Windows 10 laptop
would
needs time to detect all the necessary parts.
2.This USB-C to Displayport Cable works only with computers, phones
and tablet with DP Alt Mode. (Most phones and tablets before 2018
may not supported. Please also make sure the USB-C port of the device
supports video output.)
3.It can work with monitor with Mini Displayport connector, but it can't
work with Thunderbolt 2 monitor.

3.0 SPECIFICATIONS

pop some notifications, no worries, your Windows laptop
http://www.cablecreation.com
1 / 3
