Whitmor 6780-4679 Manual

6780-4679 36 Pair Over the Door Shoe Rack
A
3 ea
Right side frame
B
3 ea
Left side frame

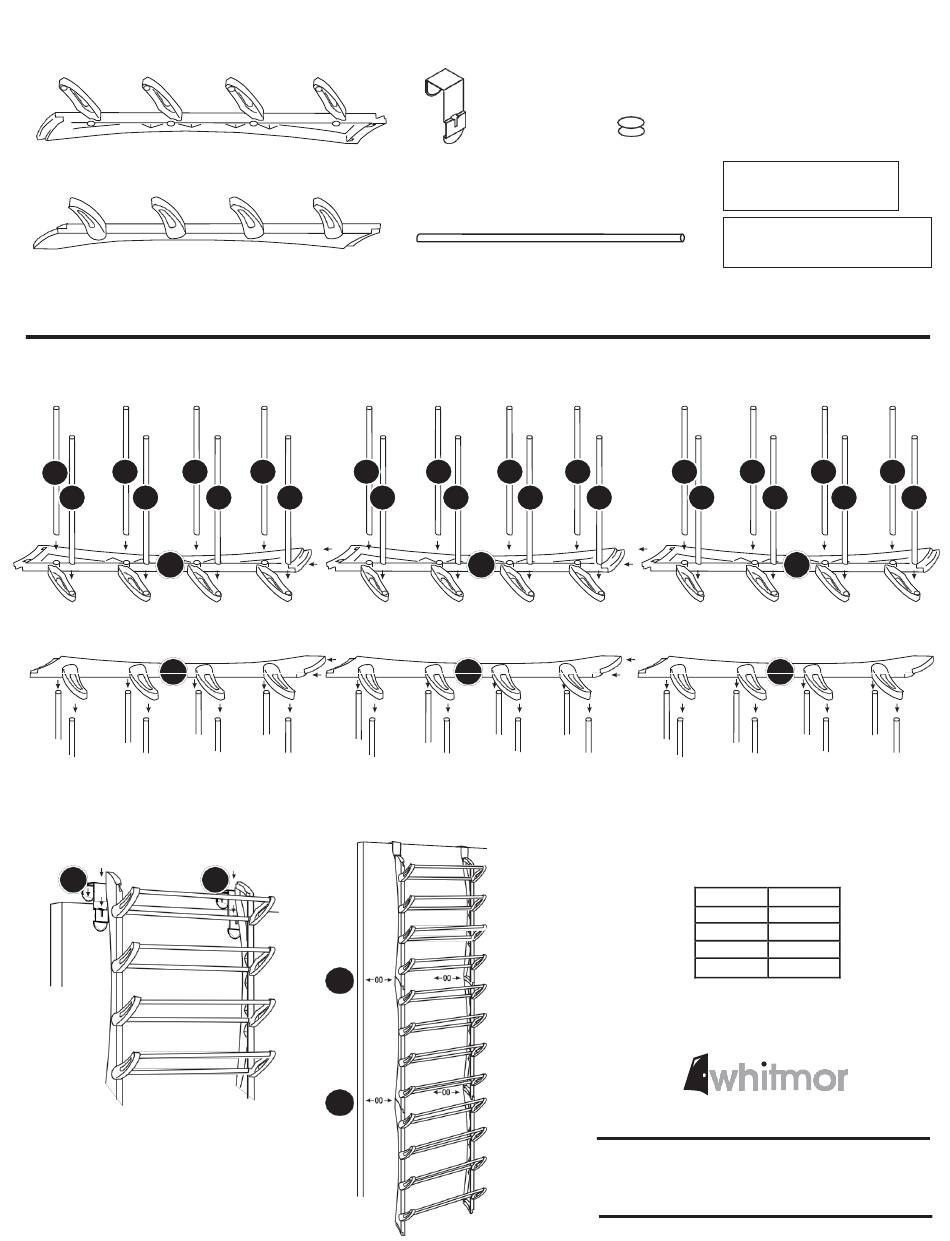

STEP 1.
Place three right side frames (A) on a flat hard surface. Snap each side frame together. Insert 24 horizontal
poles (D) into holes in each side frame.
D D
D
D D
A
STEP 2.
Place three left side frames (B) on a flat hard surface. Snap each side frame together. Place assembled left side
frames onto top of poles aligning poles with the holes in side frame. Tap firmly until poles are seated into holes.
B
STEP 3.
Place the two over the door brackets (C) on the top of the door.
Snap assembled shoe rack onto door brackets as shown below. Peel off
backing and place male & female velcro dots (E) on bottom of rack and
door where the rack rests on the door.
C
D D
D D D
C
C
C
C
2 ea
Over the door bracket
D
24 ea
Horizontal pole
D D D
D D D
A
B
NOTE:
Bars
can be folded up
for optional
hightop shoe or
boot storage.
2010 Whitmor
©
E
4 ea
Assembly Time:
Male & female
velcro dots
Less than 15 minutes.
This product's intended use
is for storing shoes.
Tools Needed: No tools required.
D D
D D
B
Part Reference
A
B
C
D
E
MADE IN CHINA
U.S. Patent No. D598,218 & U.S. Patent No. 7,762,406
8680 Swinnea Road • Suite 103 • Southaven, MS • 38671
NEED HELP? For help with assembly, or if you are missing a part,
please call Whitmor's Customer Service Department, 1-888-944-8667
between 8 a.m. and 4:30 p.m. (Central Standard Time) Monday
through Friday. Or email: customer_service@whitmor.com
