Whitmor 6765-7519-BB Manual

6765-7519-BB Folding Garment Rack
A
1 ea
Hanging chrome tube
B
2 ea
Vertical chrome tube
C
4 ea
Vertical bent tube
D
2 ea
Horizontal tube

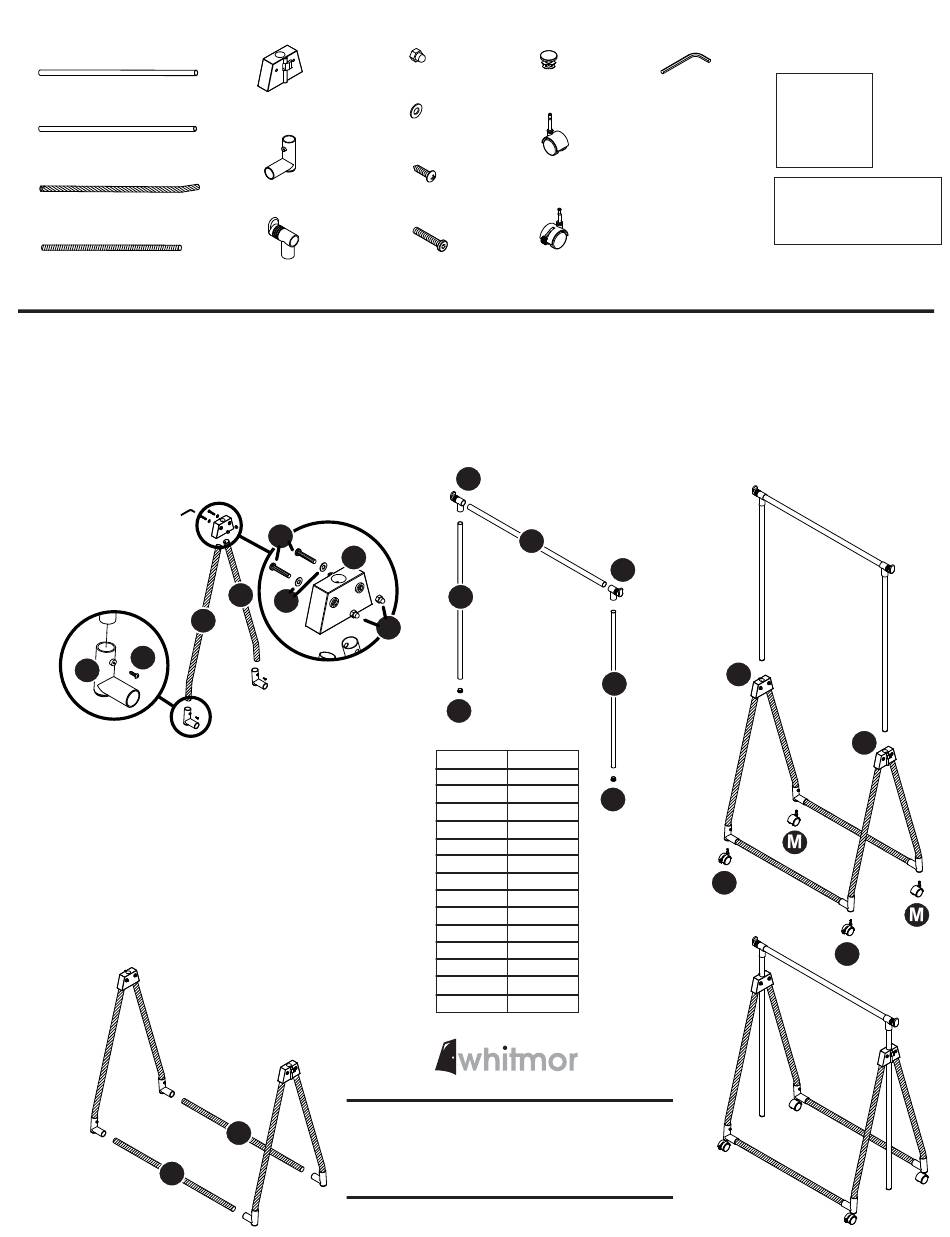

STEP 1.
Leg assembly: Insert two vertical bent
tubes (C) into underside of a locking connector (E).
Line up the tubes to match the drawing below.
Assemble with two washers (I), two hex screws (K),
and two acorn nuts (H). Tighten with hex wrench (O).
Install a base connector (F) to each end of vertical
bent tubes (C) using a small screw (J). Loosely
tighten screw with a Phillips screwdriver (not
included) (See note below). Repeat this step for the
other leg assembly.
C
J
F
NOTE:
Generally position base
connector (F) on the end of vertical
bent tube (C) as this drawing shows.
However, wait to tighten the small
screw (J) until step 2 below.
STEP 2.
Insert two horizontal tubes (D) between
the two leg assemblies and push the leg assemblies
together. Place on a hard even surface and square
all parts up. Now, tighten small screws (J) using a
Phillips screwdriver.
D
H
Acorn nut
E
2 ea
Locking connector
I
Washer
F
4 ea
J
Base connector
Small screw
K
G
2 ea
Hex screw
End cap
K
E
C
I
H
8680 Swinnea Road • Suite 103 • Southaven, MS • 38671
NEED HELP? For help with assembly, or if you are missing a part,
D
please call Whitmor's Consumer Care Department, 1-888-944-8667
between 8 a.m. and 4:30 p.m. (Central Standard Time) Monday
through Friday. Or email: help@whitmor.com. Visit us online at
www.whitmor.com
Rev. 1 | 9.8.17
2017 Whitmor, Inc.
©
4 ea
L
2 ea
End plug
4 ea
M
2 ea
Wheel
4 ea
N
4 ea
2 ea
Wheel with lock
STEP 3.
Hanging bar assembly:
Install two end caps (G) onto each
end of hanging chrome tube (A).
Insert two vertical chrome tubes (B)
into bottom of end caps (G). Insert
two end plugs (L) into bottom of
vertical chrome tubes (B).
G
A
B
L
Part Reference
A F9505
B F9506
C F9507
D F9508
E F9509
F F9510
G F9511
H F9512
I F9513
J F9514
K F9515
L F9516
M F9517
N F9518
O F9519
MADE IN CHINA
Printed in China
O
1 ea
Assembly
Hex wrench
Time:
Less than
30 minutes.
This product's
intended use is for
hanging garments.
Tools Needed:
Phillips screwdriver.
STEP 4.
Unlock the locking
connectors (E) and slide the
hanging bar assembly through
the top of the locking connector
to the desired position. Lock the
locking connector. Assemble
the wheels (M & N) to the
bottom of base connectors (F).
G
E
B
L
N
E
N
