Whitmor 6060-3510 Manual

6060-3510 Chrome Shoe Tower - 50 Pair
A1 A2
1 ea 1 ea
Top left frame Top right frame
(inside view) (inside view)

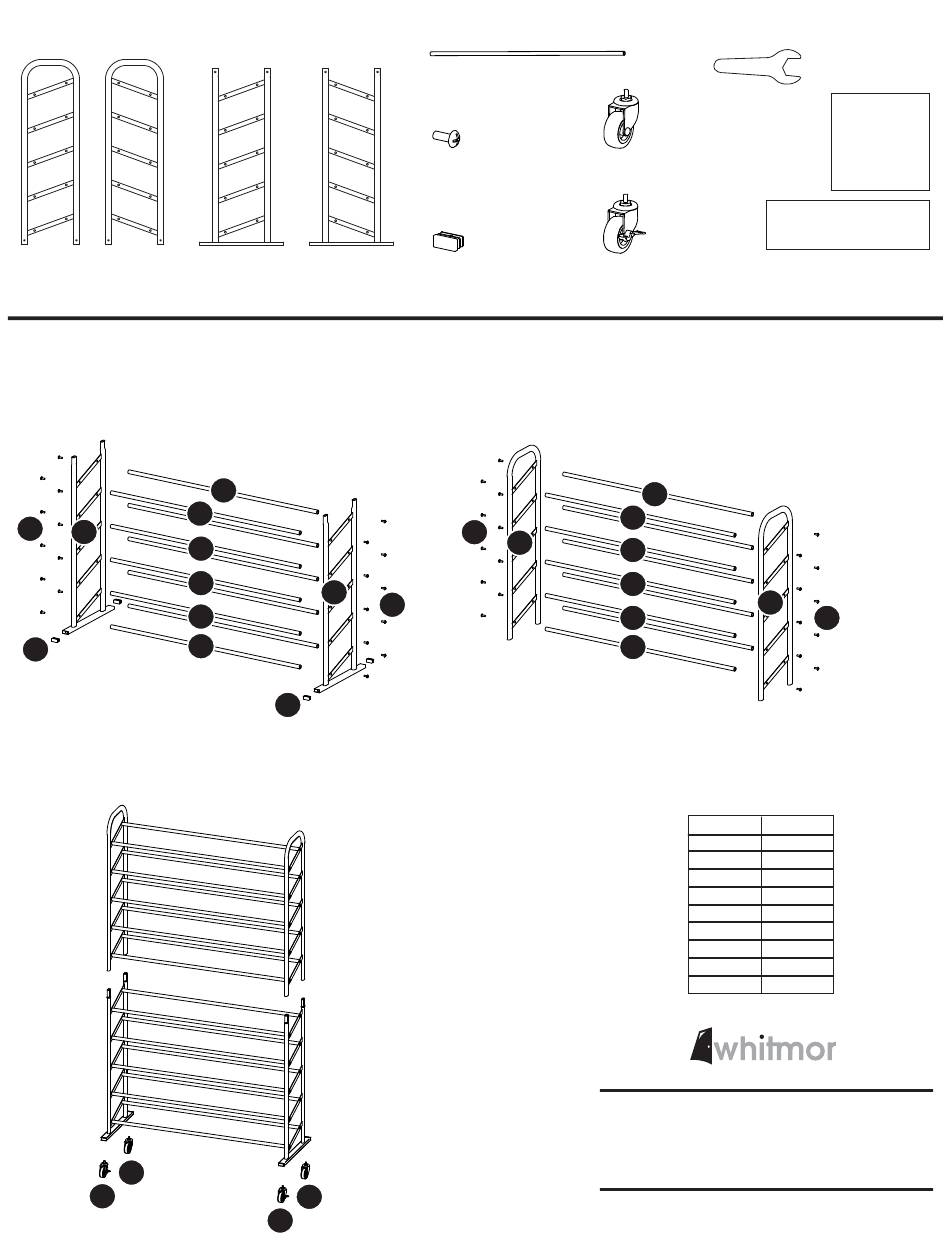

STEP 1.
Assemble the bottom section by
attaching horizontal bars (C) to bottom frames (B1
& B2) using screws (D). Leave screws loose at this
point, they will be tightened later. Press plugs (E)
onto bottom frames if they are not already attached.
C
D
B1
C
C
C
C
E
STEP 3.
Place assembled top section on top of assembled bottom
section and press down until the two sections are firmly attached.
Now tighten all screws with screwdriver (not provided). Attach wheels
(F & G) and tighten with provided wrench (H).
F
G
B1 B2
1 ea 1 ea
Bottom left frame Bottom right frame
(inside view) (inside view)
C
B2
E
F
G
C
20 ea
Horizontal bar
D
40 ea
Screw
E
4 ea
Plug (may be already
attached to parts (B1 & B2)).
STEP 2.
Assemble the top section by attaching the
remaining horizontal bars (C) to the top frames (A1
& A2) using remaining screws (D). Leave screws
loose at this point, they will be tightened later.
D
A1
D
2012 Whitmor
©
H
1 ea
Wrench
F
2 ea
Wheel
This product is for
shoe storage
G
Tools Needed: Phillips
2 ea
screwdriver. Wrench is provided
Wheel with lock
C
C
C
C
A2
C
C
Part Reference
A1 F7322
A2 F7323
B1 F7324
B2 F7325
C F7149
D F7150
E F7151
F F7152
G F7153
H F7154
MADE IN CHINA
8680 Swinnea Road • Suite 103 • Southaven, MS • 38671
NEED HELP? For help with assembly, or if you are missing a part,
please call Whitmor's Customer Service Department, 1-888-944-8667
between 8 a.m. and 4:30 p.m. (Central Standard Time) Monday
through Friday. Or email: customer_service@whitmor.com. Visit us
online at www.whitmor.com
Rev#2 1.12.12
Assembly
Time:
Less than
30 minutes.
D
