!!STOP!!
Before proceeding make sure the top is the correct item for the vehicle you are installing it on.
DO NOT INSTALL THIS ITEM ON ANY VEHICLE OTHER THAN ONE LISTED ABOVE
It is normal for the top to be somewhat wrinkled when you remove it from the box. Additionally the material may have contracted,
depending on at what temperature it has been stored. It is highly recommended that you remove the top from the box; lay it out flat at a
temperature above 72F and let it relax for at least 24 hours. As well the installation should be done only in an environment where the air
temp is above 72F.
To avoid improper installation of this item it is imperative that you read and follow these guidelines completely. Failure to install this top
correctly may result in a dangerous situation for the vehicle occupants as well as other motorists.
SIERRA OFFROAD TAKES NO RESPONSIBILITY FOR THE ACCURACY OR COMPLETENESS OF THESE
INSTALLATION GUIDELINES. THEY ARE PROVIDED ONLY FOR INFORMATION PURPOSES. IT IS
THE SOLE RESPONSIBILITY OF THE INSTALLER TO ENSURE THAT THE INSTALLTION HAS BEEN
PERFORMED CORRECTLY, THERE ARE NO LOOSE OR MISSING PARTS AND THE VEHICLE HAS BEEN
ROAD TESTED AFTER INSTALLATION OF THE REPLACEMENT TOP AND DEEMED SAFE TO OPERATE.
PARTS LIST
Fabric Top
Drivers Quarter Window
Passenger Quarter Window
Rear Window
TOOLS REQUIRED
No Tools are Required
THIS REPLACEMENT TOP IS INTENDED TO BE FIT OVER THE FACTORY ORIGINAL HARDWARE AND FRAME. IF THE FRAME
IS DAMAGED OR MISSING PARTS DO NOT ATTEMPT THIS INSTALLATION BEFORE REPAIRS ARE MADE TO THE VEHICLE.
It is important to read the complete instruction guideline manual BEFORE beginning the installation of your new replacement top. This will
familiarize you with all aspects of the installation and help to avoid mistakes. It will be helpful if you keep this guideline manual for future
reference.

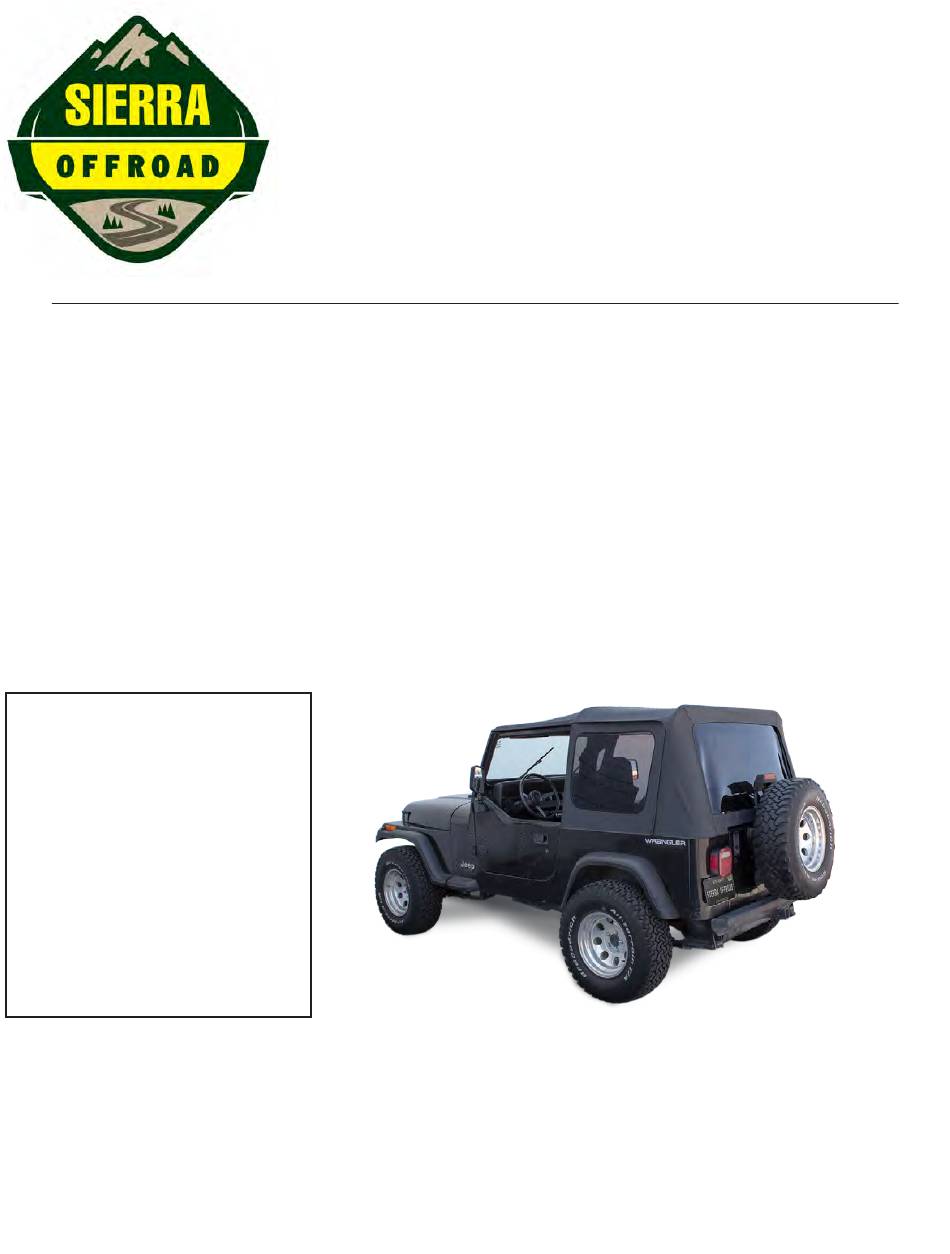

Fabric Replacement Top Without
Upper Doors
Installation Guidelines
For:
1988-1995 Jeep Wrangler YJ w/Factory Frame
PN:
10-40-TJ08895
Qty 1
Qty 1
Qty 1
Qty 1
SIERRA OFFROAD
FACTORY REPLACEMENT JEEP SOFT TOPS
Advertisement
Related Manuals for SIERRA OFFROAD 10-40-TJ08895
Summary of Contents for SIERRA OFFROAD 10-40-TJ08895
- Page 1 To avoid improper installation of this item it is imperative that you read and follow these guidelines completely. Failure to install this top correctly may result in a dangerous situation for the vehicle occupants as well as other motorists. SIERRA OFFROAD TAKES NO RESPONSIBILITY FOR THE ACCURACY OR COMPLETENESS OF THESE INSTALLATION GUIDELINES. THEY ARE PROVIDED ONLY FOR INFORMATION PURPOSES. IT IS...
- Page 2 1988-1995 Jeep Wrangler YJ Soft Top Installation Guide REMOVING EXISTING TOP Remove lock pins and lower the support frame arms. Remove lower support frame arms Detach the plastic extrusions from the metal channels and unzip to remove quarter windows from vehicle. Detach plastic extrusions Sierra Offroad...
- Page 3 1988-1995 Jeep Wrangler YJ Soft Top Installation Guide Unsnap all four snaps to release Top edge from frame. Unsnap top edge from frame Partially unzip rear window, detach the lower edge plastic extrusions from the metal channels and slide out the support rail from window.
- Page 4 1988-1995 Jeep Wrangler YJ Soft Top Installation Guide Completely unzip window and detach the rear quarter edges from the metal channels to release Top from vehicle. Detach rear quarter edges Unsnap the crossbow support flaps to release Top from frame. Unsnap crossbow support flaps Sierra Offroad...
- Page 5 1988-1995 Jeep Wrangler TJ Soft Top Installation Guide Remove the front plastic extrusion from windshield retainer to release Top from vehicle. Remove front plastic extrusion Before Installing Your New Top: It is normal for the top to be somewhat wrinkled when you remove it from the box. Additionally the material may have contracted, depending on at what temperature it has been stored.
- Page 6 1988-1995 Jeep Wrangler YJ Soft Top Installation Guide BEGIN INSTALLING NEW TOP Begin installation of new Top. Center Top and insert the front plastic extrusion into channel. Begin installaton of new Top Carefully stretch and attach all four snaps in order. Attach all four snaps Sierra Offroad...
- Page 7 1988-1995 Jeep Wrangler YJ Soft Top Installation Guide Position Top over the crossbows and snap all the support flaps. Snap support flaps in place Carefully stretch and attach the rear quarter edges into the guided channels. Attach rear quarters into channels Revision a.1...
- Page 8 Completely zip rear window to Top and insert the lower support rail into the window pocket. Zip rear window to Top Attach the window plastic extrusions into the metal channels and insert the support rail into its channel. Attach plastic extrusions Sierra Offroad...
- Page 9 1988-1995 Jeep Wrangler YJ Soft Top Installation Guide Attach the plastic extrusions into the metal channels and completely zip the quarter windows to Top. Attache plastic extrusions Raise the support frame arms and install lock pin to secure position. Install lock pin Revision a.1...
