Rampage Products 86615 Installation Instructions

99-19 Universal
3rd Brake Light
Parts List:
1 x Upper light bracket
2 x Carriage bolt
2 x Flat washer
Installation instructions
1) Remove spare tire from spare tire mount on
vehicle.
2) Attach the upper light bracket to the tire carrier
bracket with the two carriage bolts, flat washers

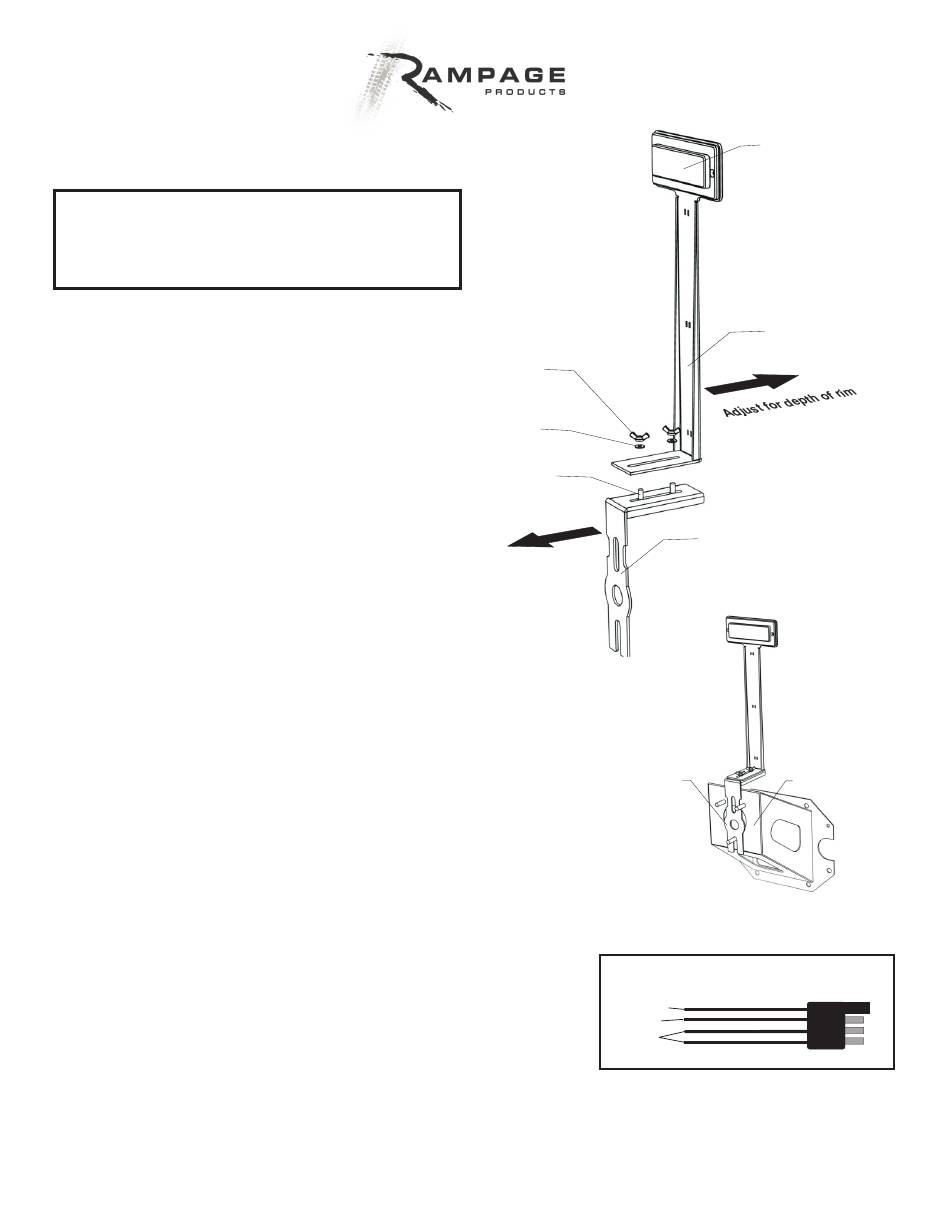

and wing nuts. See the illustration for assembly.
3) Adjust the length of the bracket assembly by
placing the lower bracket into the spare tire on the
inside surface of the rim. With the wing nuts loose,
slide the two parts as needed to get the upper bracket
to fit snugly against the back side of the tire. This tension
on the upper bracket will keep it from moving excessively when
in rough terrain.
4) Peel the backing off of the inside surface of the lower bracket and stick
it to the front surface of the spare tire rack. NOTE: The bracket has
slots in it to allow for height adjustments. It is a good idea before
sticking the bracket on, to test fit the tire in place on the assembly to be
sure the light is high enough to clear the tire.
5) Now install the spare tire as usual and tighten the lug nuts as suggested
by the manufacturer of the mount.
6) Wiring:
Plug the 4 prong trailer plug pre-installed on the light into the plug on
the vehicle if available. If not, splice the wiring into the brake lights on
the vehicle as follows:
Cut the wiring about 1 inch up from the connector. The green and
yellow should be attached together and then spliced to the brake light
circut on the vehicle. The white goes to a ground connection. The
brown is not used.
If installing on a Jeep with a factory 3rd brake light that has been
removed: Simply cut the existing wire to expose the positive and
ground connections then connect the green and yellow wires to the
positive, and the white wire to the ground.
*We recomend professional installation for the wiring as necessary.
Installation Instructions
1 x Lower light bracket
2 x Wing nut
Rampage Products Buford, GA Phone: 800-328-2409
www.rampageproducts.com
Wing nut
Flat washer
Carriage bolt
VHB tape
on rear
Ground
Not used
Brakes
IS-86615
Light
Upper light bracket
Tire carrier bracket
Tire carrier
Wiring Diagram
White
Brown
Yellow
Green
