engineered products

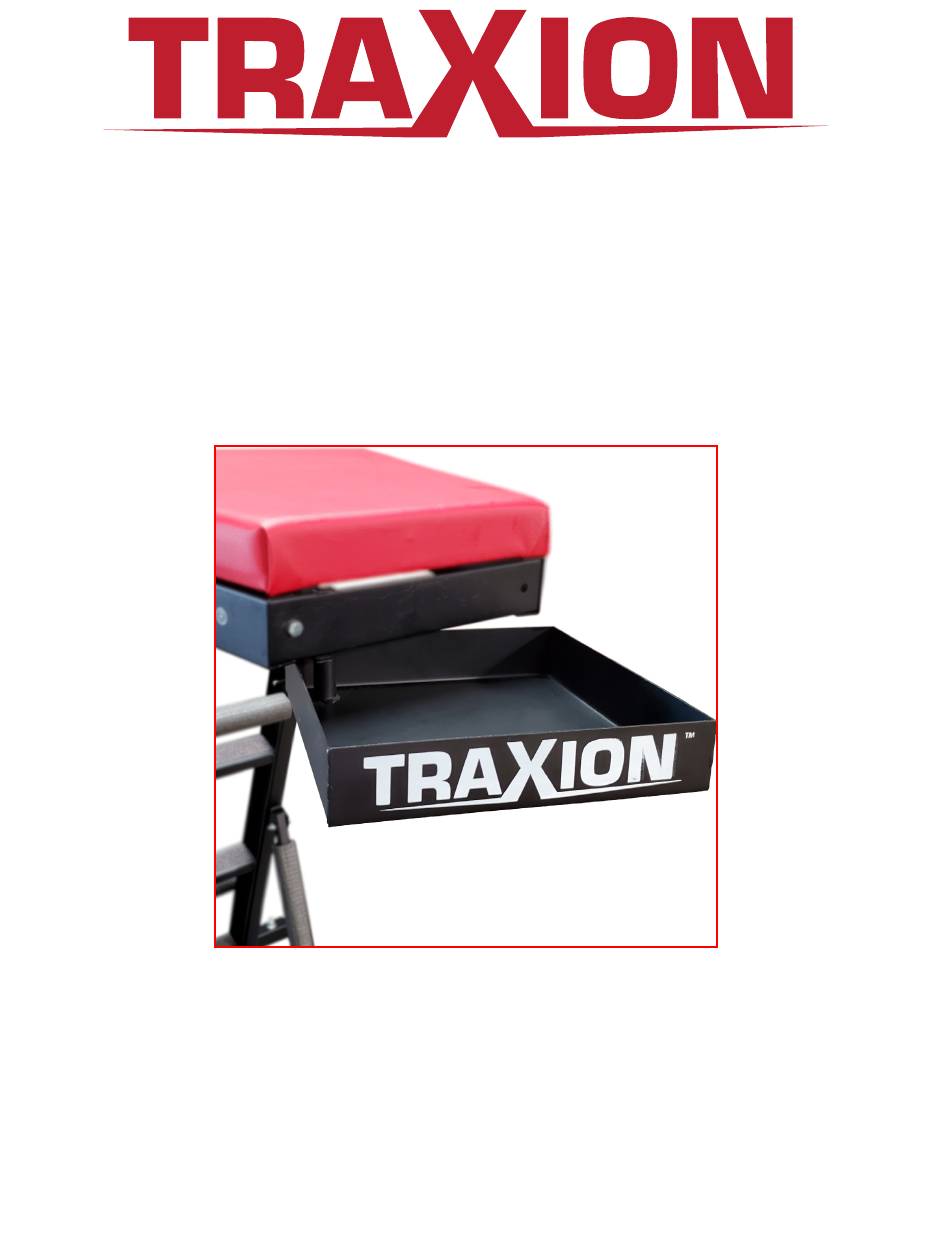

TopSide Bolt-On
Tool Tray
Thank you for purchasing this Tool Tray.
If you have any questions or comments please
visit our website at www.traxionproducts.com
or phone 479-474-3460.
© 2019 All Rights Reserved
Part No. 3-102
Doc: topsidetooltraywebv1
Advertisement
Related Manuals for TRAXION 3-102
Summary of Contents for TRAXION 3-102
- Page 1 TopSide Bolt-On Tool Tray Thank you for purchasing this Tool Tray. If you have any questions or comments please visit our website at www.traxionproducts.com or phone 479-474-3460. © 2019 All Rights Reserved Part No. 3-102 Doc: topsidetooltraywebv1...
- Page 2 TopSide Bolt-On Tool Tray Parts List Allen Bolt x2 Tray x1 Locking Washer x2 Nut x1 Bracket x1 Hex Bolt x1 Tray Shaft x1 Allen Wrench x1...
- Page 3 REQUIRED TOOLS: Allen Wrench (included), 13mm / Adjustable Wrench Attach bracket to Topside Creeper Using a wrench, attach the wider side of the bracket (B) to the inside of the front of your Topside Creeper with the hex bolt (H) and nut (G) in the middle hole, it should be ush with the side of the Topside Creeper.
- Page 4 You can do this easily by holding the tray near the corner and placing one hand under the insert while putting the bolts in with your other hand. (E x2) (Fx2) Don’t forget, your Tool Tray can rotate! See more great products at www.traxionproducts.com Search traxion products on...
