engineered products

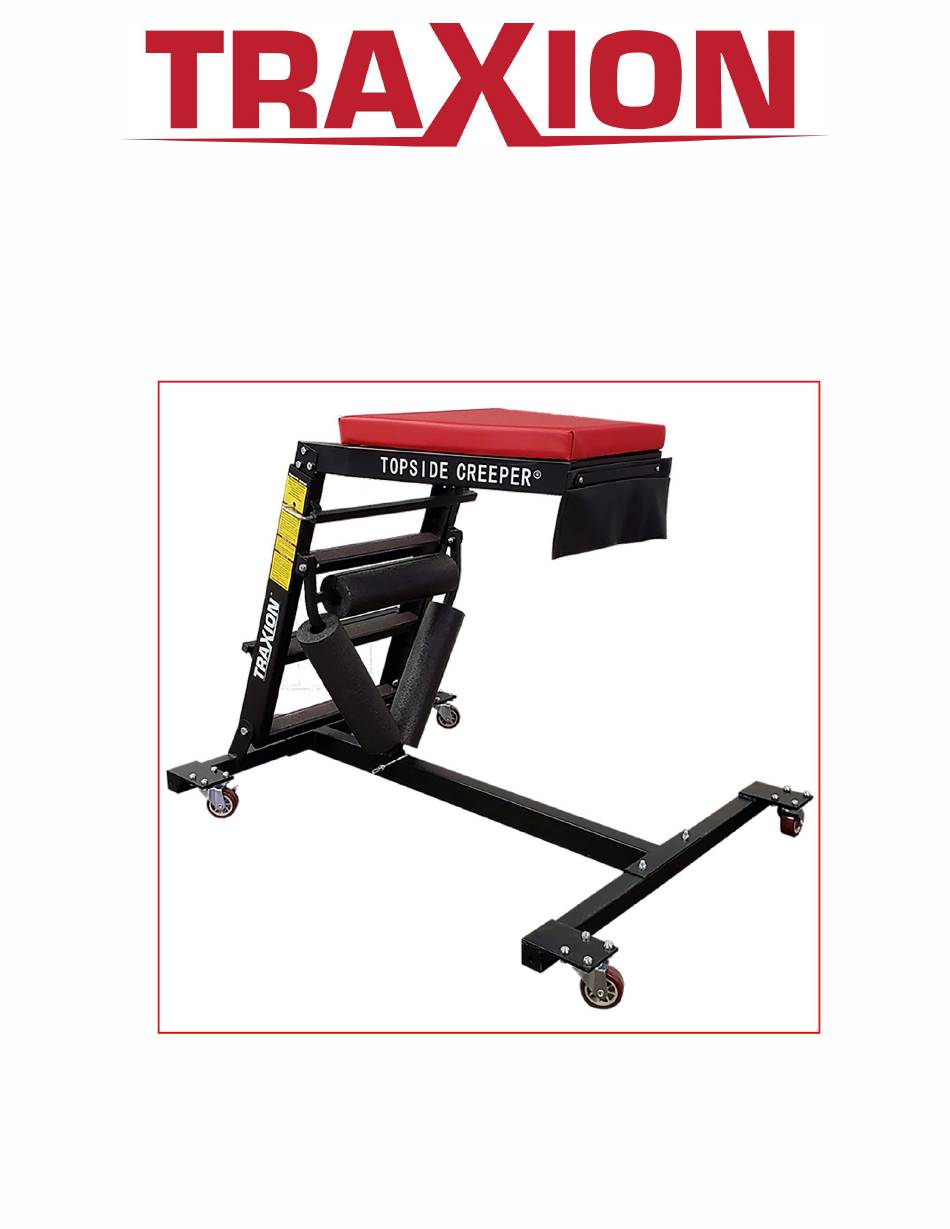

Topside Creeper
Shorty
Thank you for pu rchasing this Topside Creeper Shorty.
If you have any questions or comments please
visit our website at www.traxionproducts.com
or phone 479-474-3460.
© 2019 All Rights Reserved
Part No. 3-104

Advertisement

loading
Need help?

Need help?

Do you have a question about the Topside Creeper Shorty and is the answer not in the manual?

Questions and answers

Summary of Contents for TRAXION Topside Creeper Shorty

  • Page 1 Topside Creeper Shorty Thank you for pu rchasing this Topside Creeper Shorty. If you have any questions or comments please visit our website at www.traxionproducts.com or phone 479-474-3460. © 2019 All Rights Reserved Part No. 3-104...
  • Page 2 TopSide Creeper Required Tools: 13mm Wrench Shorty Parts List 17mm Wrench I-Beam x1 13mm Nut x? Front Beam x1 Short 13mm Bolt x? Back Beam x1 Long 13mm Bolt x4 Ladder Housing x1 Medium 13mm Bolt x? Lock Pin x1 Ladder x1...
  • Page 3 17mm Nutx2 17mm Boltx2 Caster x1 Locking Caster x1 Pouch x1 Pouch Bar x1 Pad Housing x1 Foam Tube x3 6mm Phillips Screw x? Pad x1 6mm Nut x2...
  • Page 4 VERY IMORTANT Before assembly please check to make sure all parts Assemble Base are present. If something is missing, please contact our office on the phone at 479-474-3460 or over email at service@traxionproducts.com First, take the front bar (B) and insert it into the side of the I-beam (A) with the yellow sticker.
  • Page 5 Attach Casters Line up a regular caster (K) with its mount on the back beam (C) and attach it with 4x 13mm medium bolts (I) and 4x 13mm nuts (F), repeat this step for both sides of the back beam (C) Line up a locking caster (L) with its mount on the front beam (B) and attach it with 4x 13mm medium bolts (I) and 4x 13mm...
  • Page 6 Attach Ladder Housing Hold the ladder housing (D) on top of the assembled base so that the housing is on the inside of the front beam's sockets. Rest the bottom of the ladder housing near the front beam with one hand and with the other, extend and line up the support beam and the hole on the i-beam and insert the lock pin (J) as shown.
  • Page 7 Attach Ladder Slide the ladder (E) through the ladder housing, make sure htat the side with the open ends is facing upwards, as idnicated by the red circles . To secure the ladder, move it to your de­ sired height and insert the housing's springbar fasteners into the hole and move the ladder to the nearest setting, when the springbars are in place the...
  • Page 8 Attach Pad Housing Line up the pad housing (M) with the top of the ladder (E), it should sit flush with it. Next, attach the two pieces using 3x 13mm short bolts (G) and 3x 13mm nuts (F) on each side, making for 6 bolts and 6 nuts in total.
  • Page 9 Attach Pad Housing Place the pad (N) on top of the pad houisng (M) and be sure that the screw holes line up underneath. Use 2x phillips screws (T) to fix the pad in place, one one each side. To make this process easier, put the screws in loosely and then tighten them once everything is in place.
