Naomi Home Zoe Futon Sofa Bed Assembly Instructions

N A O M I
H O M E
PART LIST
1 - Futon Assembly x1
2 - Rear Leg x2
3 - Front Leg x2
HARDWARE
A - Hexagon Screw x4
B - Allen Wrench x1
USE AND MAINTENANCE
Zoe Futon Sofa Bed
1
Select and lay Futon
Assembly 1 and turn
over upside down.
Select 2 x2 and
insert leg post into
back hole in futon.
Turn clockwise
3
to hand tighten.
B
3
A
If you need help or have damaged or missing parts, contact customer service at
Use on level surfaces only
Because this product needs assembly, it is prone to working itself
loose from time to time depending on the use. Please take the time to
check that all connections are still tight and working properly
Only clean using a damp cloth and mild detergent, do not use bleach
or abrasive cleaners.

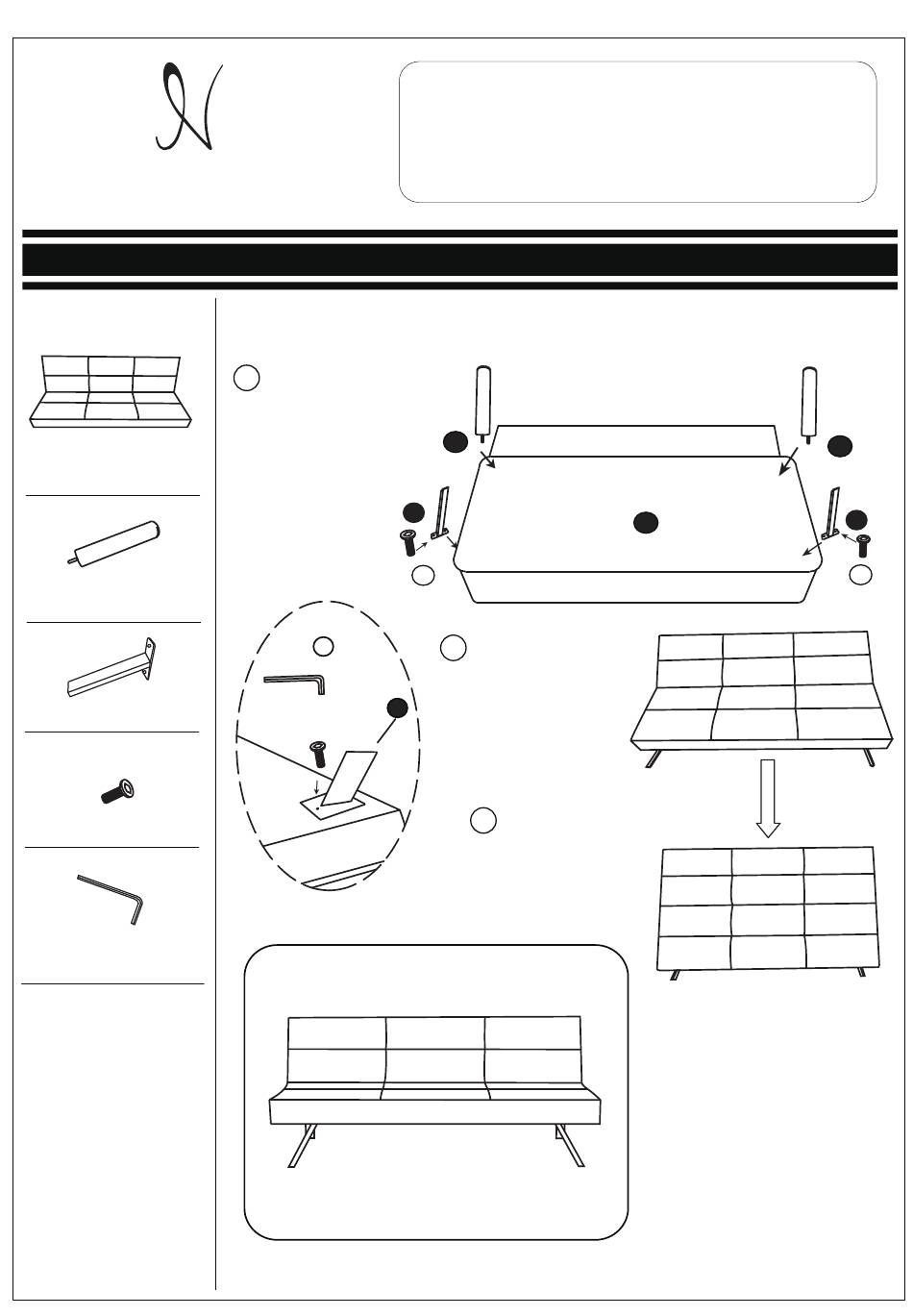

Assembly Instructions
2
A
A
2
Select 3x2, A Screw x2,
Insert A Bolt into 3 Front Leg
with B Allen Wrench, then
through hole in 3 to part 1
Assembly. Ensure
the leg orients to point
outward for proper support.
3
Turn Futon Assembly 1
over, you can sit there to
relax,push the backward
to lay flat,you can sleep.
1
A
Note:
To sleep - pull backrest
forward until it clicks to release
and then push backward to lay flat.
To Recline:
Lay flat to sleep, then pull up into
desired recline position.
Congratulations! Setup of your new
Naomi Home Futon is Complete!
