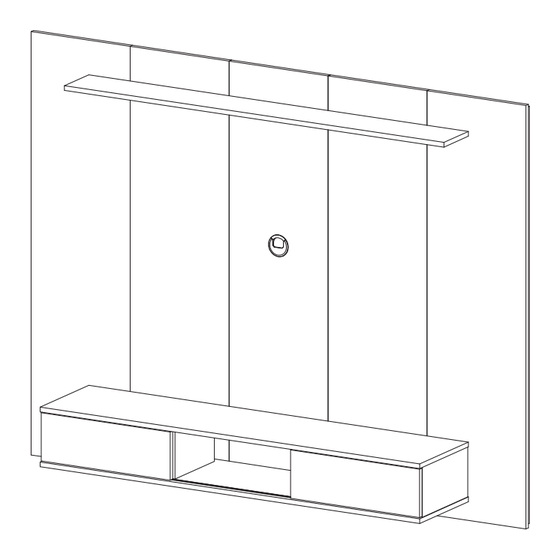

- Page 1 Zola Multi Storage Wall Media Center 69 1/4” L x 13” D x 53 1/8” H 2023 Naomi Home Inc. - All Rights Reserved. Page 1 of 16...
- Page 2 WARNING CAUTION ADULT ASSEMBLY REQUIRED CHOKING HAZARD This product includes small parts, sharp points and sharp edges in its unassembled state. • Keep unassembled parts away from children under 3 years of age, and animals. STRANGULATION HAZARD Never attach or hang items to any part of the Wall Entertainment Center that is not •...
- Page 3 Page 3 of 16...
- Page 4 1.Central Panel x1 2.Intermediary Panel x2 3.Left Panel x1 4.Right Panel x1 5.Panel Ruler x2 6.Wall Ruler x2 7.Side Tray x2 8.Top x1 9.Middle Top x1 10.Left Side x1 11.Door x2 12.Right Side x1 13.Division x2 14.Shelf x1 Wood Dowel Ø6x30mm Cam Bolt Ø7x30mm Cam Lock Ø7x30mm Hole Cover Ø18mm...
- Page 5 (2x) -Put the screw centralized in the oblong hole. -User the Door Mounting template in the last page to attach the sliding door kit. Page 5 of 16...
- Page 6 Page 6 of 16...
- Page 7 -After mounting the cabinet, adjust the door guides to slide properly. Only then fix the K3 screw completely, as in the drawing. Page 7 of 16...
- Page 8 Page 8 of 16...
- Page 9 Page 9 of 16...
- Page 10 Wall drilling Scheme -8 holes with wall 8mm drill. 305mm 384mm 384mm 384mm 305mm -Level the crosspieces on the wall. Floor X = Height from the floor Example: If you want the panel to be 500mm from the floor: Height of the first hole line = 500+45=545mm Height of second hole line = 545+1015=1560mm.
- Page 11 TV Support Kit 35x77mm 48x28mm 100x56mm Screw M6 x 16 Screw M8 x 16 -To make it easier to attach the TV support, we send 2 screw models that match the most commonly used TVs. If neither model fits your TV properly, purchase the compatible screw from any hardware store.
- Page 12 69 1/4" Y = Useful height above the TV. H = Distance from the TV holes to the TV border. X = Distance between the TV holes. Upper Support Use the screw indicated in the TV manual P6 / P7(VESA). Lower Support Use the screw indicated in the TV manual...
- Page 13 Page 13 of 16...
- Page 14 To make it easier to attach the TV support, we send 2 screw models that match the most commonly used Tvs. If neither model fits your TV properly, purchase the compatible screw from any hardware store. To prevent damage to your TV, do not over tighten the screws. Always take out the TV from the panel in the following situations: - You are moving the wall panel;...
- Page 15 CONGRATULATIONS, YOUR NAOMI HOME ZOLA MULTI STORAGE WALL MEDIA CENTER IS COMPLETE Zola Multi Storage Wall Media Center Natural/White - White - Black XXXXXXXXXX xxxx / 2023 MADE IN BRAZIL Page 15 of 16...
