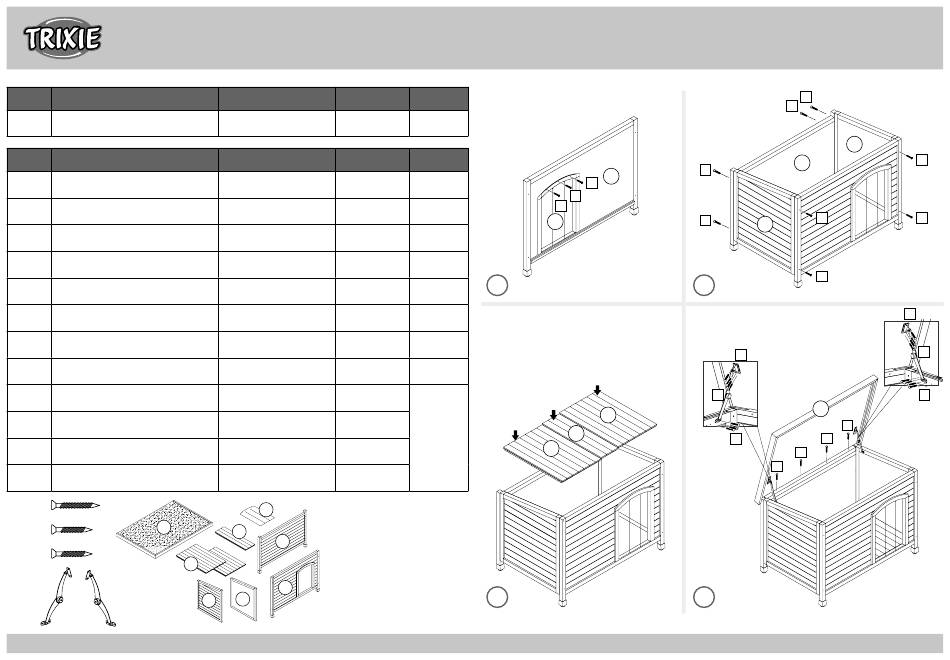

Trixie 39518 Assembling Instruction & Part List

Item No.
39518 Insulated dog house
Pos. No. Description
Pos. 1 Plastic door
Pos. 2 Bottom plate, large
Pos. 3 Bottom plate, small
Pos. 4 Side panel, left
Pos. 5 Side panel, right
Pos. 6 Front panel
Pos. 7 Back panel
Pos. 8 Roof
Pos. a Countersunk screw
Pos. b Countersunk screw
Pos. c Countersunk screw
Pos. d Checkstrap, left/right
Pos. a
8
Pos. b
Pos. c
Pos. d
060520
Measurement
Color
45.75 × 32.5 × 31.25 in.
brown
(116 × 82.5 × 78.5 cm)
Measurement Quantity
13.5 × 20.5 in.
(34 × 52 cm)
24.5 × 16.25 × 0.75 in.
(62.6 × 41.1 × 2.2 cm)
24.5 × 7 × 0.75 in.
(62.6 × 18 × 2.2 cm)
24.75 × 27.75 × 1.25 in.
(63 × 70.6 × 3.5 cm)
24.75 × 27.75 × 1.25 in.
(63 × 70.6 × 3.5 cm)
42.5 × 31 × 1.25 in.
(108 × 79 × 3.5 cm)
42.5 × 27.75 × 1.25 in.
(108 × 70.2 × 3.5 cm)
45.5 × 31 × 2.25 in.
(115.7 × 78.5 × 6 cm)
ø 0.137 × 2.362 in.
12+1
(ø 3.5 × 60 mm)
ø 0.137 × 0.629 in.
3+1
(ø 3.5 × 16 mm)
ø 0.157 × 0.629 in.
16+1
(ø 4 × 16 mm)
11 in.
1+1
(28 cm)
E Advice:
1
Do not sit or stand on this product.
It is intended for pets only.
3
This product should be assembled
7
by an adult.
2
6
5
4
