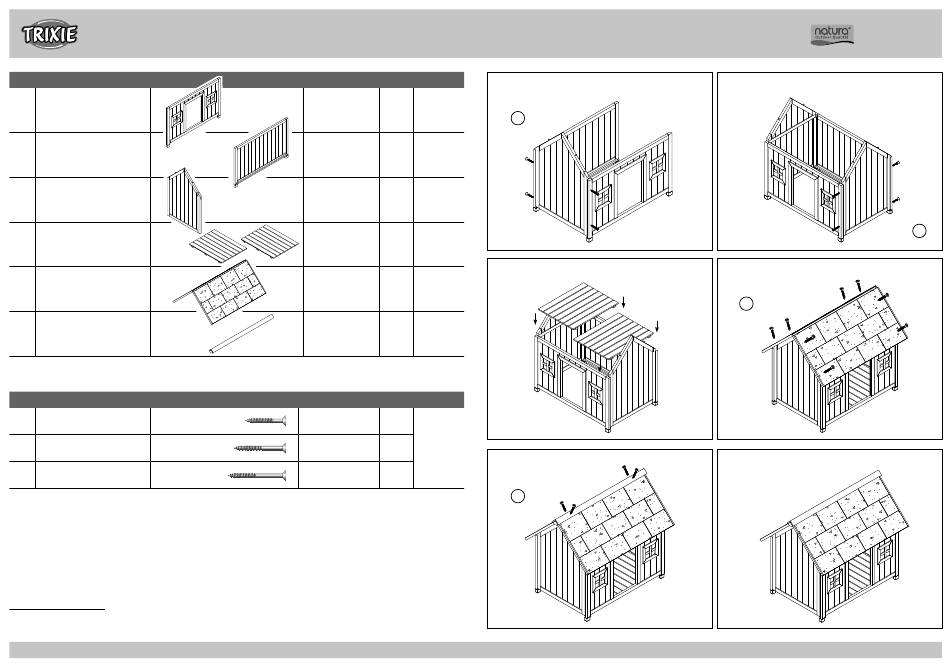

Trixie natura 39502 Assembling Instruction

Pos. Description
1 Front part
2
Back wall
3 Side panel
4 Floor parts
5 Roofs
6 Ridge
Pos. Description
A Countersunk screw
B Countersunk screw
C Countersunk screw

Made in China.
050218
Aufbauanleitung/Assembling Instruction/Instruction de montage
Part List & Assembling Instruction
Measurement Quantity Item
37.5 × 24.75 × 0.75 in.
1 39502-30
(955 × 633 × 22 mm)
.
37.5 × 24.75 × 0.75 in.
1 39502-31
(955 × 633 × 22 mm)
.
36.25 × 25 × 0.75 in.
2 39502-20
(925 × 637 × 22 mm)
.
24.75 × 17.75 × 0.75 in.
2 39502-10
(634 × 453 × 24 mm)
.
41.25 × 21.5 × 0.75 in.
2 39502-40
(1065 × 550 × 20 mm)
.
42.75 × 2.75 × 2.25 in.
1 39502-41
(1090 × 70 × 57 mm)
.
Size Quantity Item
ø 0.118 × 0.75 in.
4+1
(ø 3 × 25 mm)
.
ø 0.137 × 1.25 in.
8+1 39502-50
(ø 3.5 × 35 mm)
.
ø 0.137 × 1.75 in.
8+1
(ø 3.5 × 45 mm)
.
TRIXIE Pet Products, Inc. · P.O. Box 101196 · Ft. Worth, TX 76185 · www.trixiepet.com
Fix the side panel (3) to the front part (1) and back wall (2).
C
4 ×
1.
Insert the floor parts (4).
3.
Fix the ridge (6) to the roofs (5).
A
4 ×
5.
Dog Kennel Barn Style
Item
Fix the side panel (3) to the front part (1) and back wall (2).
4 ×
2.
Fix the roofs (5) to the house.
B
8 ×
4.
Finish.
6.
39502
C
