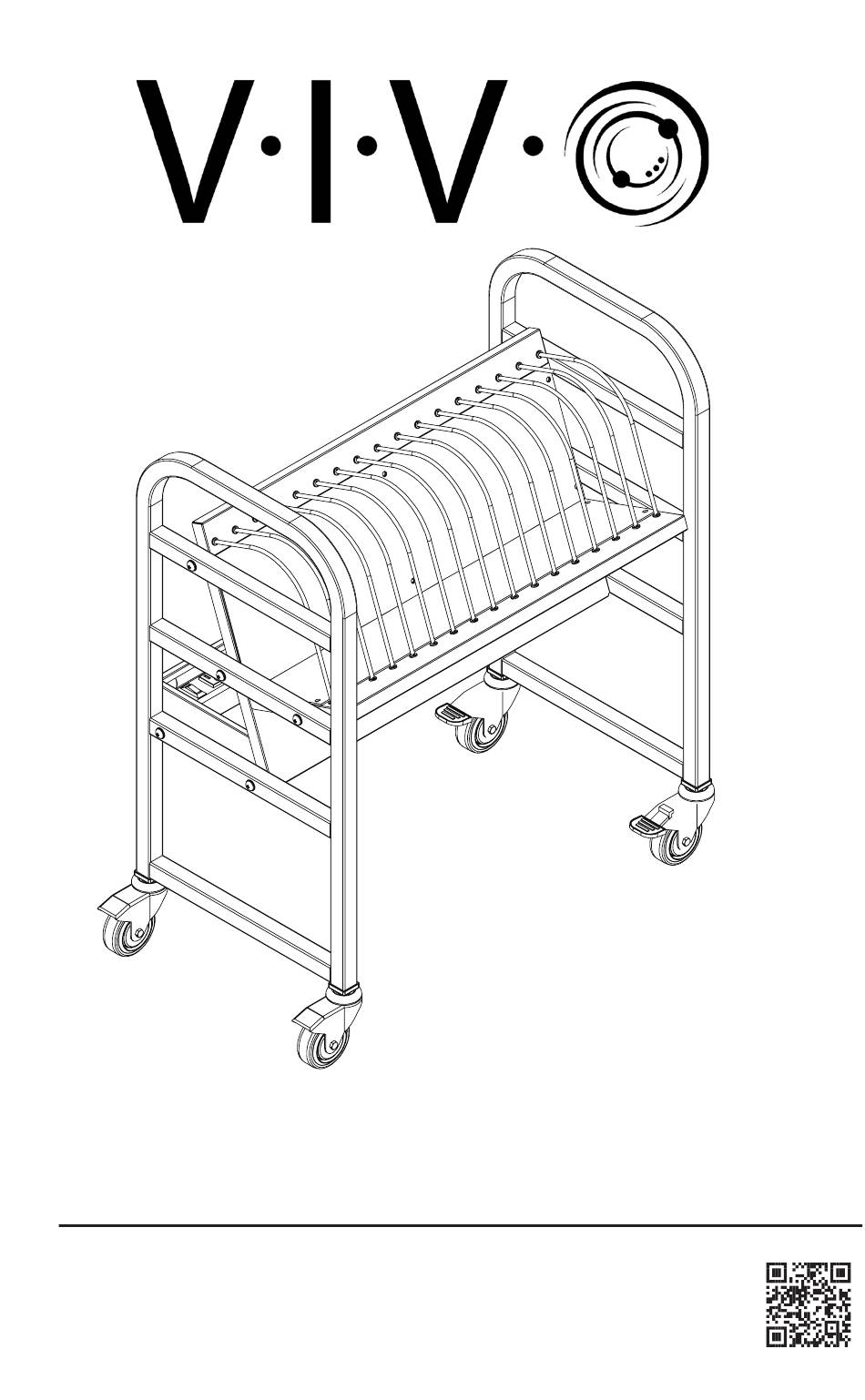

- Page 1 16-Device Open Charging Cart SKU: CART-LAPC3 Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/cart-lapc3...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Package Contents
Package Contents A (x2) B (x1) C (x1) Frame Back Panel Bottom Panel E (x17) F (x1) D (x1) Divider Power Strip Shelf G (x2) H (x2) I (x2) J (x33) Mounting Caster Locking Cable Clip Bracket Caster Included Hardware & Tools S-A (x8) S-B (x37) S-C (x10) -
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Attach Back Panel (B) onto the side of Bottom Panel (C) using the ST4.2x10mm Screws (S-A) and a Phillips screwdriver. Assembly Tip: Bottom Panel (C) will be installed on the top of Back Panel (B), using the rear set holes. When placing, ensure the underside of Bottom Panel is oriented towards the rear portion of Back Panel. - Page 5 STEP 2 Secure Dividers (E) into Back and Bottom Panels (B,C) using M5 Nuts (S-B). Tighten using the 8mm Wrench (T-A).
- Page 6 STEP 3 Slide both Mounting Brackets (G) onto the underside of the Power Strip (F). To install Power Strip (F), line up Posts on Mounting Brackets (G) with the mounting holes on Shelf (D), then secure in place using the M5 Nuts (S-B). Tighten using the 8mm Wrench (T-A).
- Page 7 STEP 4 Slide the Shelf (D) onto the underside of Back Panel (B) and secure using ST4.2x10mm Screws (S-A). Tighten screws using a Phillips screwdriver.
- Page 8 STEP 5 Secure the Frame Pieces (A) onto the sides of assembly using the M6x40mm Screws (S-C), M6 Washers (S-D), and M6 Lock Washers (S-E). Tighten the screws using a Phillips screwdriver. Note: The M6 Lock Washers should sit between the M6x40mm Screw Head and the standard M6 Washers.
- Page 9 STEP 6 Press Casters (H,I) into the underside support of Frame (A).
- Page 10 STEP 7 Press Cable Clips (J) into the slots in the back of Back Panel (B).
- Page 11 [ THIS PAGE INTENTIONALLY LEFT BLANK ]...
-
Page 12: Last Updated
LAST UPDATED: 04/30/24 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
