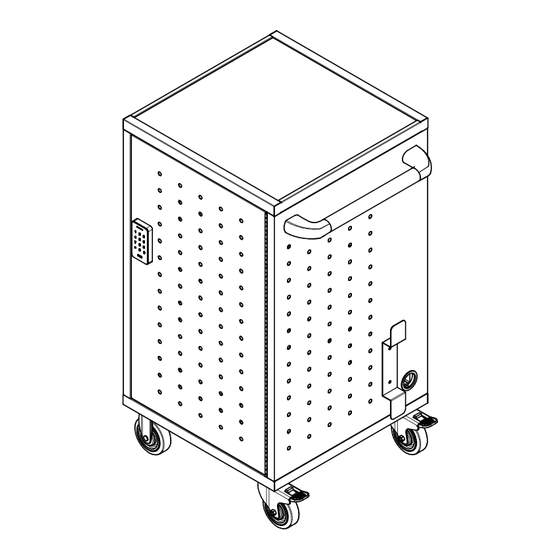

Black Laptop Charging Cart with Keypad Lock
Instruction Manual
SKU: CART-LAPC1
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/cart-lapc1
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo CART-LAPC1
Summary of Contents for Vivo CART-LAPC1
- Page 1 Black Laptop Charging Cart with Keypad Lock Instruction Manual SKU: CART-LAPC1 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/cart-lapc1 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury.
- Page 3 ASSEMBLY STEPS STEP 1 Place Top Panel (A) upside down and assemble Left Side Panel (B) and Right Side Panel (C) by inserting the tabs into the slots on the underside of Top Panel (A), then slide them back to secure them in place. STEP 2 Install Corner Brackets (O) to Left Side Panel (B), Right Side Panel (C), and Top Panel (A) using M6x12mm Screws (S-B) and a Phillips screwdriver.
- Page 4 STEP 3 Assemble Shelves (E) and Baffles (F) to Left Side Panel (B) and Right Side Panel (C) using M6x12mm Screws (S-B) and a Phillips screwdriver. STEP 4 Slide Power Strip Brackets (N) into the top and bottom of Power Strips (J). Mount Power Strip Brackets (N) to Left Side Panel (B) and Right Side Panel (C) using M4x10mm Screws (S-C) and a Phillips screwdriver.
- Page 5 STEP 6 Secure Casters (L) and Locking Casters (M) to Bottom Panel (D) using M8x16mm Screws (S-D) with M8 Lock Washers (S-G) and M8 Washers (S-F). Tighten with a Phillips screwdriver. STEP 7 Install Corner Brackets (O) to Left Side Panel (B), Right Side Panel (C), and Bottom Panel (D) using M6x12mm Screws (S-B) and a Phillips screwdriver.
- Page 6 STEP 8 Secure Rubber Mats (P) to middle and bottom Shelves (E) using Rubber Mat Clips (S-J). Thread M5 Nuts (S-I) onto Laptop Dividers (Q). Secure Laptop Dividers (Q) into bottom Shelves (E) and Baffles (F) using an 8mm socket wrench. STEP 9 Insert Cable Management Clips (R) into the underside of top and middle Shelves (E).
- Page 7 STEP 10 Slide the plastic covers off of Handle (I) and secure to either Right Side Panel (C) or Left Side Panel (B) using M8x40mm Screws (S-E) with Black M8 Washers (S-H) and a 6mm Allen Wrench. Assemble Cable Storage Hooks (K) to Left Side Panel (B) and Right Side Panel (C) using M6x12mm Screws (S-B) and a Phillips screwdriver.
- Page 8 AVG. RESPONSE TIME (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
