Summary of Contents for roomfitters Kayden KD-CRDZ-001-V2

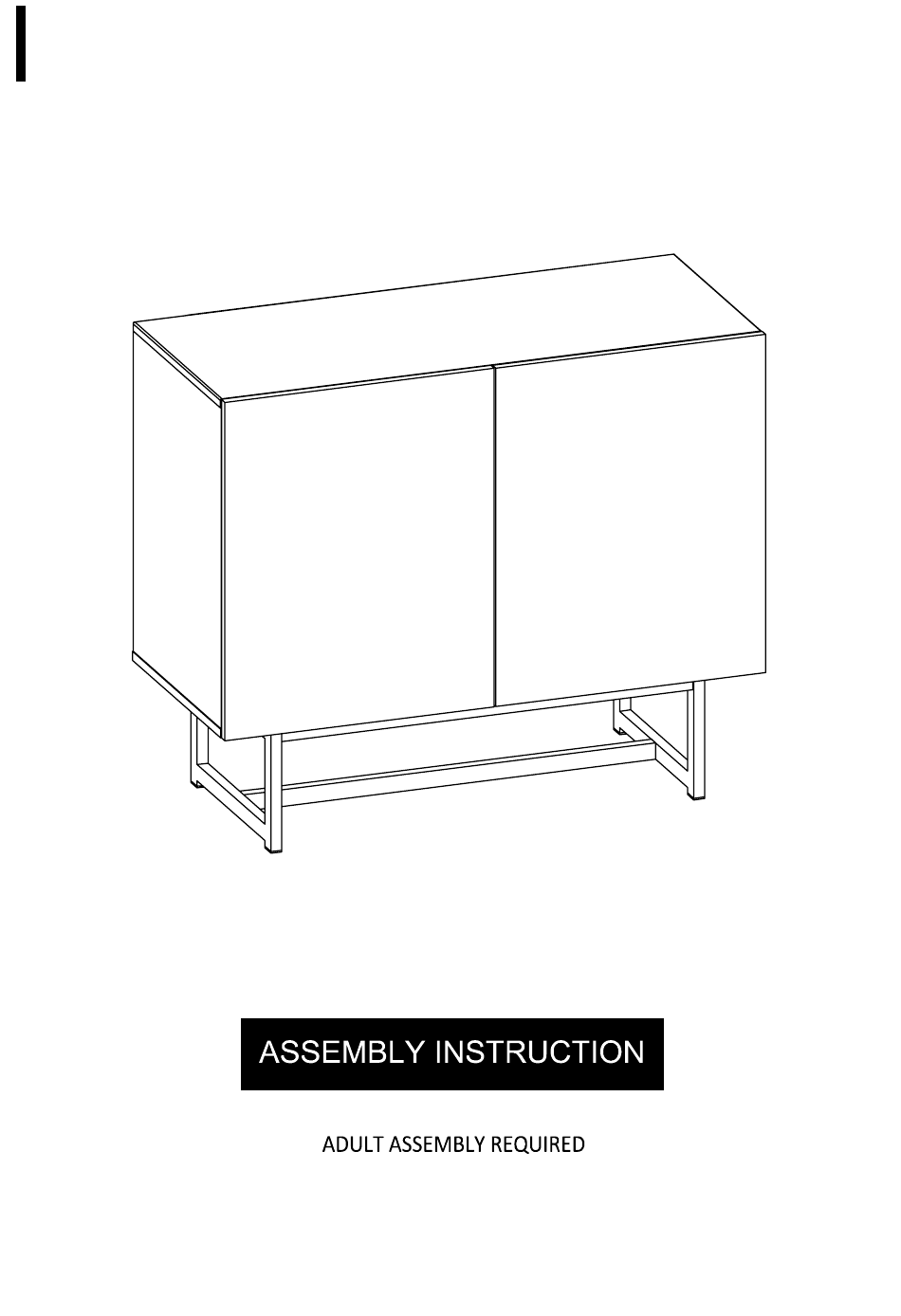

  • Page 1 KD-CRDZ-001-V2 Kayden Credenza/Sideboard/Buffet...
  • Page 2 THE PRODUCT MAY RECOMMENDED ASSEMBLING BY MORE THAN ONE PERSON. PLEASE ASK FOR ASSISTANCE AT YOUR CONVENIENCE BEFORE ASSEMBLING.
  • Page 3: Before You Start

    Before You Start Read through each step carefully and follow the proper order Separate and count all your parts and hardware Give yourself enough room for the assembly process Have the following tools: Flat Head Screwdriver, #2 Phillips Head Screwdriver and Hammer Caution: If using a power drill or power screwdriver for screwing, please be aware to slow down and stop when screw is tight.
  • Page 4: Parts Identification

    Parts Identification...
  • Page 5 Parts Identification SHELF BOTTOM RIGHT BACK LEFT DECOR LEFT BACK RIGHT DECOR BACK PANEL LEFT DOOR...
  • Page 6: Hardware Identification

    Parts Identification RIGHT DOOR RIGHT AND LEFT UPPER RAIL x 2 END x 2 LOWER RAIL Hardware Identification DOUBLE-HEADED SCREWDRIVER: THIS TOOL ALLOWS YOU TO USE DIFFERENT HEAD FOR DIFFERENT TYPE OF SCREWS BY SWITCH THE YELLOW HANDLE...
  • Page 7 DOOR TOUCH LATCH...
  • Page 8 Assem ble sc rews Make sure sc rews a re (pa r t#3) ver ticality lock up evenly on boa rd x 10 x 16...
  • Page 9 Proper orientation of CAM LOCK...
  • Page 10 Proper orientation of CAM LOCK...
  • Page 11 x 16 √ NOTE: THE L-SHAPE BRACKET SHOULD INSERTED INTO THE METAL TUBE...
  • Page 12 √ NOTE: THE L-SHAPE BRACKET SHOULD INSERTED INTO THE METAL TUBE...
  • Page 13 × √ Make sure parts "I" and "O" a re assembled aligning with parts "H" and "T" x 16...
  • Page 17 YOU CAN MAKE GAP ADJUSTMENT WHEN DOORS DOES NOT OPEN CORRECTLY OR SMOOTHLY BY POP OUT THE EJECTOR PIN AND ROATE IT OUT TO THE PROPER LENGTH.
  • Page 18 Follow the instructions printed on the plastic bag containing the tipping restraint hardware to attach thetip-over restraints to the unit and the wall. NOTE:The tipping restraint hardware included is for drywall construction. It will be necessary to drill holes for the wall anchors. Depending upon your wall construction, different anchor hardware mayberequired. Please contact your local hardware store for assistance.
  • Page 19 Safty Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability,product collapse,and/or serious injury. WARNING Please make sure that all objects are removed before moving the assembled unit. The unit must be team lifted, not dragged or pushed. Failure to do so could cause instability, product collapse, and/or serious injury.
