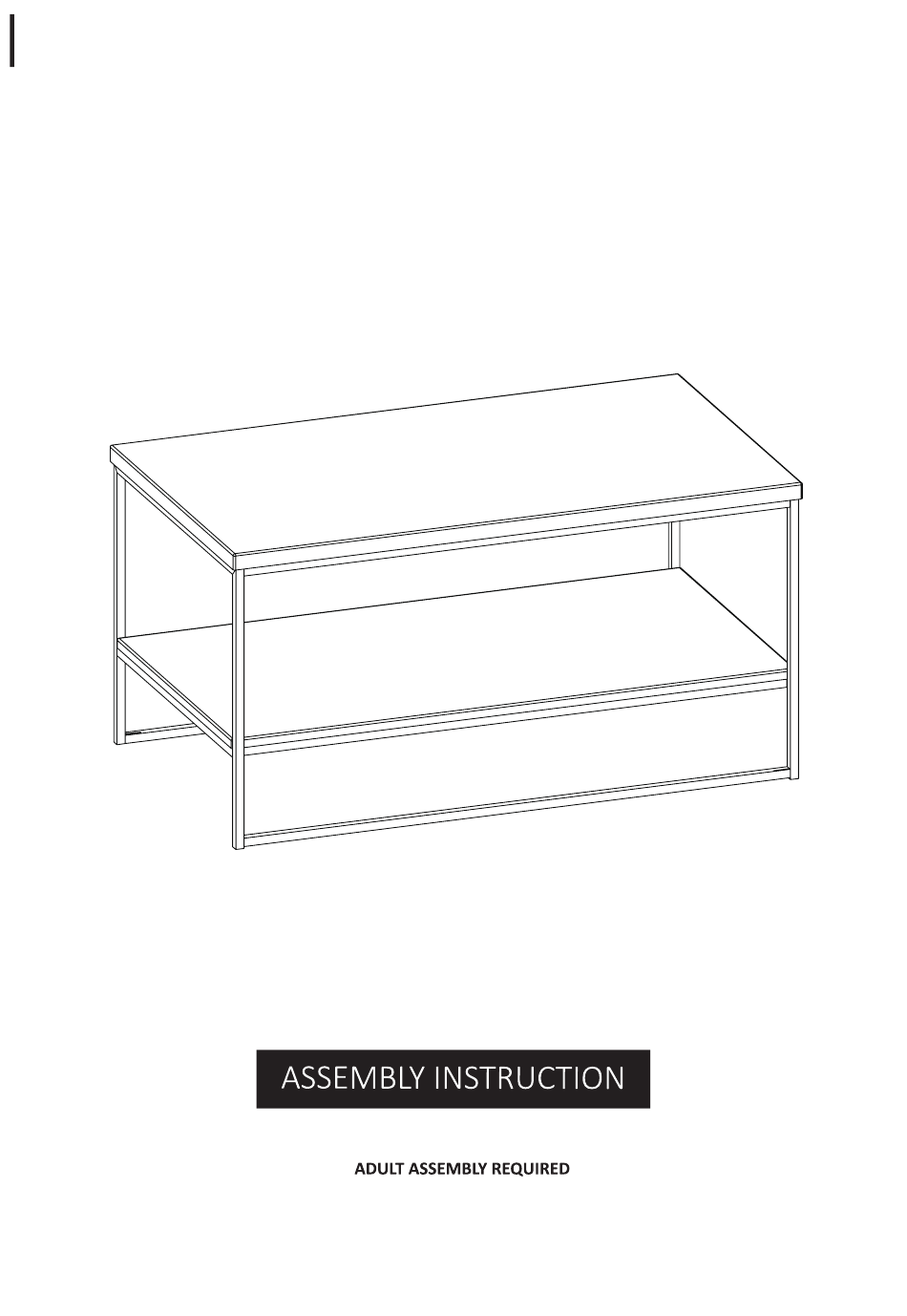

- Page 1 IE-CT-002G-V3 2-Tier White Faux Marble Coffee Table (Gold)
- Page 2 THE PRODUCT MAY RECOMMENDED ASSEMBLING BY MORE THAN ONE PERSON. PLEASE ASK FOR ASSISTANCE AT YOUR CONVENIENCE BEFORE ASSEMBLING.
- Page 3 Parts Identification Page 1...
- Page 4 Parts Identification TOP PANEL SHELF PANEL SIDE END x 2 SUPPORT ROD x 4 LOWER SUPPORT ROD x 2 Hard are Identification 1/4"x 9 mm 1/4"x22mm BOLT WRENCH BOLT QTY: 12+1 SPARE QTY: 20+1 SPARE QTY: 1 Page 2...
- Page 5 Step √ NOTE: THE L-SHAPE BRACKET SHOULD INSERTED INTO THE METAL TUBE Step ATTENTION: ALL THE L-SHAPE BRACKETS ON THIS FRAME NEED TO INSERT INTO THE METAL TUBE SIMULTANEOUSLY √ NOTE: THE L-SHAPE BRACKET SHOULD INSERTED INTO THE METAL TUBE...
- Page 6 Step 3 Step Step 4 Step 1/4"x22mm x 10 Page 4...
- Page 7 Step 5 Step 1/4"x22mm x 10 Safty Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging，instability，product collapse，and/or serious injury.
