Aries Offroad 4077 Installation Instructions

QTY.
1
2

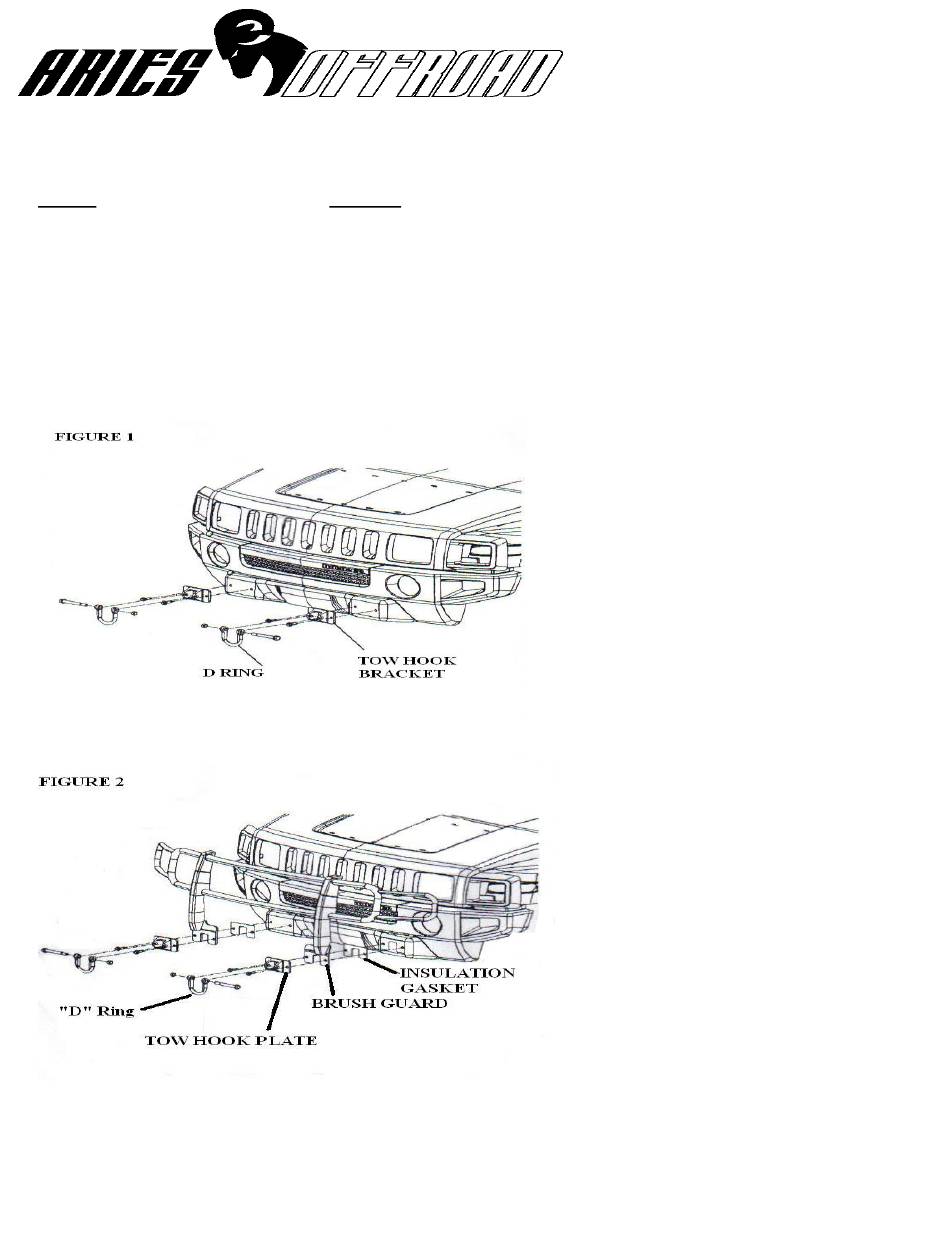

STEP 1 REMOVE TOW HOOKS (FIGURE 1). USING 24MM SOCKET AND WRENCH, REMOVE BOLTS THROUGH "D" RING. USING 18MM SOCKET
AND WRENCH, REMOVE BOLTS FASTENING TOW HOOK BRACKET.
STEP 2 LOCATE FUR TOW HOOK BRACKET HOLES. INSTALL INSULATING GASKET, BRUSH GUARD, AND TOW HOOK BRACKETS USING
EXISTING BOLTS. TIGHTEN TO 85Nm +/-15Nm (63 FT. LBS +/-11FT. LBS). SEE FIGURE 2.
STEP 3 INSTALL "D" RING USING EXISTING NUTS AND BOLTS. TIGHTEN TO 15NM (11FT LBS).
PLEASE ENSURE TO FOLLOW TORQUE VALUES. SPECIFIED FAILURE TO DO SO MAY
RESULT IN DAMAGE TO THE PART AND/OR VEHICLE.
FINISH PROTECTION- ARIES PRODUCTS HAVE A HIGH FINISH THAT MUST BE MAINTAINED SUCH AS ANY OTHER HIGH FINISH PRODUCT
ON THE VEHICLE. PROTECT THE FINISH WITH A NON-ABRASIVE AUTOMOTIVE WAX. THE USE OF SOAP, POLISH, OR WAX THAT CONTAINS
ABRASIVES IS DETRIMENTAL, AS THE COMPOUNDS SCRATCH THE FINISH AND OPEN IT TO CORROSION.
DISCLAIMER- BUYER ASSUMES ALL RISK AND LIABILITY WHATSOEVER FROM THE INSTALLATION AND USE OF ARIES PRODUCTS. ARIES
PRODUCTS ARE SOLD AS DECORATIVE ACCESSORIES AND SHOULD NOT BE RELIED UPON AS PROTECTION FOR THE VEHICLE OR
OCCUPANTS IN THE EVENT OF A COLLISION OR ROLL OVER. ARIES AUTOMOTIVE ASSUMES NO LIABILITY FOR INJURY, LOSS, INCIDENTAL
OR CONSEQUENTIAL DAMAGES IN THE EVENT OF A COLLISION OR ROLLOVER
INSTALLATION INSTRUCTIONS
FRONT BAR PART #4077
2006 GM HUMMER H3 BRUSH GUARD
CONTENT
ONE PIECE GRILL/BRUSH GUARD
INSULATOR GASKETS
(888) 800-ARIES
.
