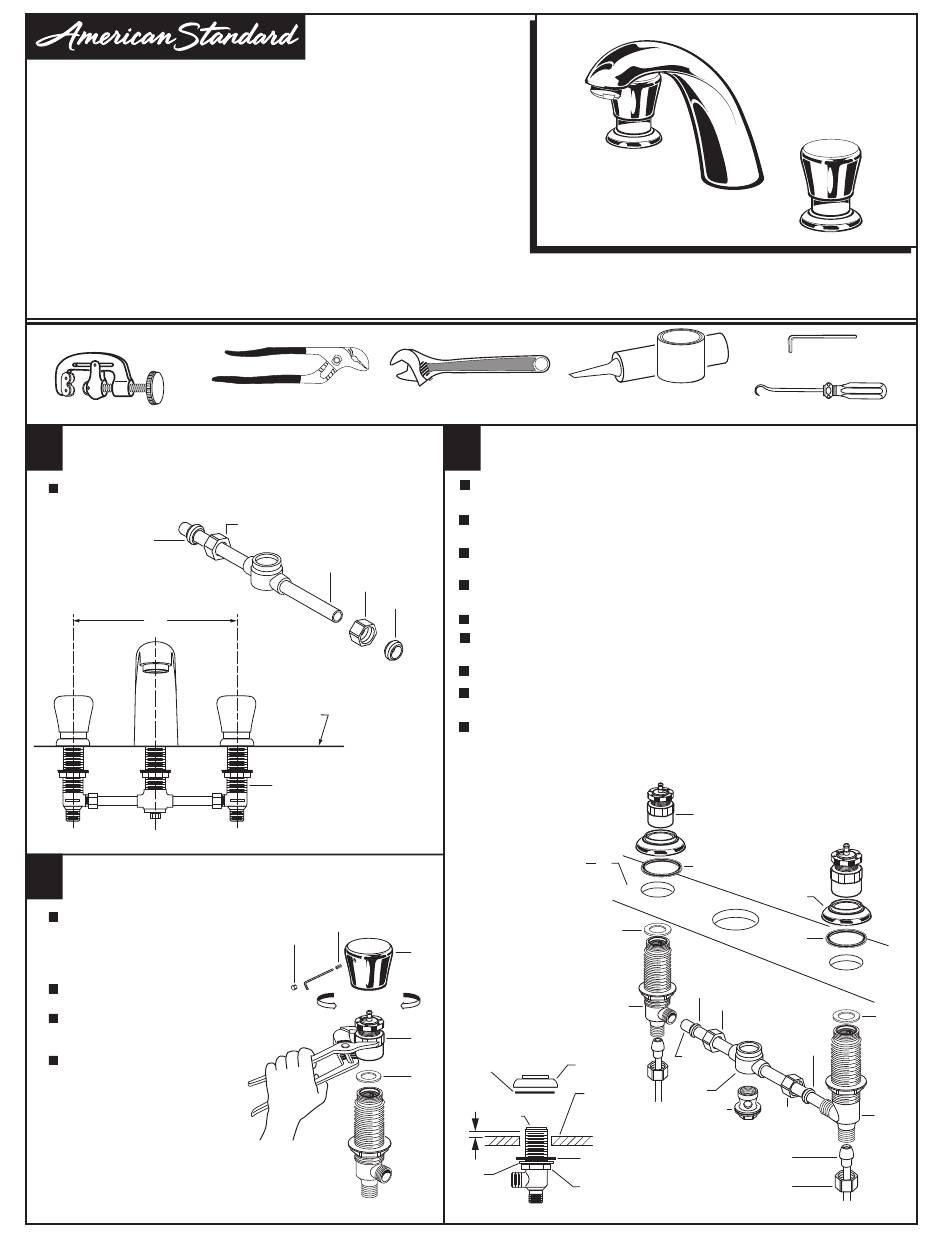

American Standard METERING 1340.825 Installation Instructions

METERING
LAVATORY
FAUCETS
Thank you for selecting American-Standard...the
benchmark of fine quality for over 140 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
Recommended tools
Tubing Cutter
1
PREPARE TUBE AND TEE ASSEMBLY
Remove COUPLING NUT (1) and FERRULE (2) from each
VALVE (3) and slide onto TUBING (4).
2
8"
2
REMOVE HANDLE AND
ACTUATOR ASSEMBLY
Remove HANDLE (1) by
removing INDEX BUTTON (2)
and SET SCREW (3) with a
2.5mm hex wrench.
Pull off HANDLE (1).
Remove ACTUATOR
.
ASSEMBLY (4)
Replace WASHER (5) with
new Washer (5) that is
provided in separate bag.
Installation
Instructions
Channel Locks
1
4
1
2
MOUNTING
SURFACE
3
3
2
1
REMOVE REPLACE
4
5
1340.825
1340.827
Adjustable Wrench Plumbers' Putty or Caulking
3
VALVE ASSEMBLY
Install LOCKNUTS (1), METAL WASHERS (3) and RUBBER
WASHERS (2) onto valve shanks.
Push TUBING (12) ends into VALVE (4) side outlets. Insert
VALVES (4) into mounting holes from underside of ledge.
Thread of VALVE BODY (4) should extend at least 5/16 inch above
MOUNTING SURFACE (9). If necessary, adjust LOCKNUT (1).
Place RUBBER RING (8) into ESCUTCHEONS (7) and thread onto
valves until snug against internal stop.
Tighten LOCKNUT (1) to secure VALVE (4) position.
Slide FERRULE (10) and COUPLING NUT (11) to outlet of VALVE (4)
and tighten COUPLING NUT (11) firmly.
Place WASHER on top of VALVE ASSEMBLY
(14)
Thread VALVE ACTUATORS (13) onto VALVES (4) and torque VALVE
ACTUATOR 12-15 ft. lbs, (12-20Nm).
Connect water supply to VALVES (4) with 1/2" IPS FLEXIBLE
SUPPLIES or 3/8" O.D. BULL-NOSE RISERS. Use adjustable wrench
to tighten connections. Do not over tighten. Be careful not to kink
copper supply when bending. Use tubing cutter to cut to proper length.
9
MOUNTING
SURFACE
14
7
8
9
5/16''
MIN.
4
MOUNTING
SURFACE
2
3
1
Certified to comply with ANSI A112.18.1M
M968492 Rev.1.8 (8/19)
2.5mm Hex Wrench
(4)
13
8
7
8
10
11
4
HOT
12
5
6
11
1/2" IPS FLEXIBLE
SUPPLIES or 3/8" O.D.
BULL-NOSE RISERS
COUPLING NUT
Hook
.
14
10
4
COLD
