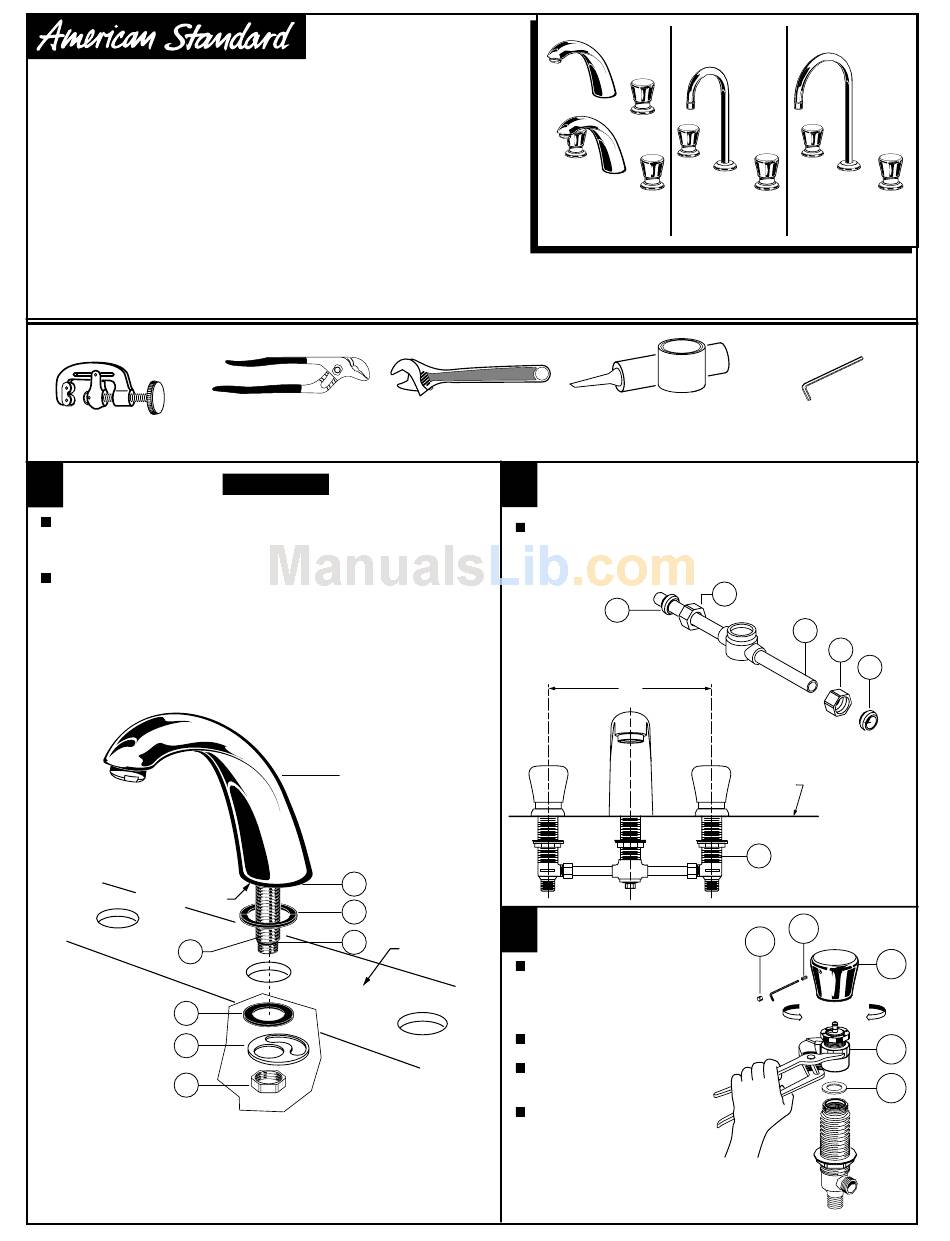

American Standard 1340 Installation Instructions

METERING
SPREAD LAVATORY
FAUCETS
Thank you for selecting American-Standard...the
benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.

TOOLS REQUIRED

Tubing Cutter

SPOUT ASSEMBLY

Install RING WASHER (1) into SPOUT (2) recess. Check
that O-RING (3) on end of SPOUT SHANK (4) is in place. Insert
SPOUT SHANK (4) into center hole on mounting surface.
Assemble RUBBER WASHER (5) and BRASS WASHER (6) and
LOCKNUT (7) onto SPOUT SHANK (4). Align SPOUT ASSEMBLY.
From underside of ledge, tighten LOCKNUT (7) to secure SPOUT
ASSEMBLY to mounting surface.
SPOUT RECESS
4
5
6
7
Installation
Instructions
1340.725
1340.825
1340.855
1340.865
Channel Locks
Turn off hot and cold water
CAUTION
supplies before beginning.
SPOUT
ASSEMBLY
2
1
3
MOUNTING
SURFACE
1340.725
1340.825
Adjustable Wrench Plumbers' Putty or Caulking

PREPARE TUBE AND TEE ASSEMBLY

Remove COUPLING NUT (1) and FERRULE (2) from each
VALVE (3) and slide onto TUBING (4).
!
REMOVE HANDLE AND
ACTUATOR ASSEMBLY
Remove HANDLE (1) by
removing INDEX BUTTON (2)
and SET SCREW (3) with a
2.5mm hex wrench.
Pull off HANDLE (1).
Remove ACTUATOR
ASSEMBLY (4).
Remove WASHER (5).
NOTE; Washer (5) may remain
inside of Actuator Assembly.
1340.855
Certified to comply with ANSI A112.18.1M
2.5mm Hex Wrench
1
2
8"
MOUNTING
SURFACE
3
2
REMOVE
1340.865
968492
4
1
2
3
1
REPLACE
4
5
