Geevon W238270 User Manual

GEEVON Wireless Weather Station
Item No.W238270
User Manual
User Manual
Thank you for purchasing W238270 Weather Station
Please take a moment to read this guide and store it for
future reference.
2 3 4 5 6
1
19
20
18 17 16 15
21
22
23
24
25
26
27
28
29
31
30
32
33

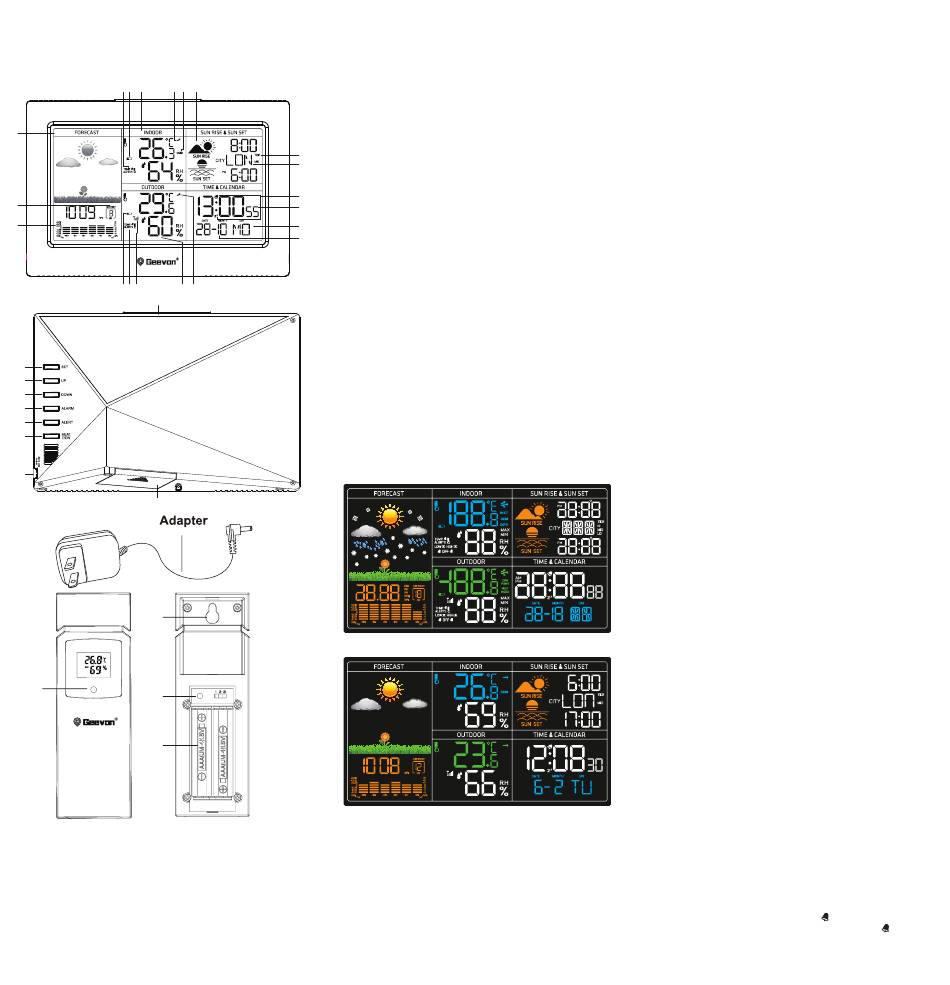

Description of control
1. Icons weather forecast 19. Historical barometric pressure
2. Indoor temperature alert
20. Trend of barometer display
3. Display low battery indicator 21. SNOOZE/LIGHT button
4. Indoor temperature / humidity 22. SET button
5. Tendency indoor temperature 23. UP button
6. Comfortable level 24. DOWN button
7. Sunrise and sunset time display 25. ALARM button
8. Tide level 26. ALERT button
9. Select city 27. HEAT/DEW button
10. Alarm and snooze icons 28. External power supply socket
11. Time display 29. Battery Compartment 3xAAA
12. Weekday (batteries not included)
13. Calendar
14. Tendency outdoor temperature
15. Outdoor temperature / humidity
external sensor
16. Outdoor sensor signal strength
17. Outdoor temperature alert
18. Sensor low battery indicator
7
Features:
1. Calendar (month/date, 2000-2099 default year 2017)
2. Time (hour/minute/second)
3. Indoor temperature/humidity and temperature trend
4. Wireless outdoor temperaturehumidity and outdoor temperature trend
5. C/F selectable
8
9
6. Alarm and snooze function
7. Weather forecast: Sunny, Partly sunny, Cloudy, Rainy and Snowy
8. Low battery indicator for outdoor sensor and station
10
9. Color display
11
10. Heat index and dew point for outdoor
11. High/low daily records
12
12. High/low temperature alert for indoor and outdoor
13
13. Sensor signal strength
14. Sunrise and sunset time display
15. Eight weeks of language (English, Germany, France, Spain, Italy, Netherlands,
Denmark, Russia)
14
Batteries:
Receiver: 3XAAA (12 months)
Transmitter: 2XAAA ( 24 months)
Extended periods of cold temperature(below-20°F/-28.8°C)can cause alkaline
batteries to function improperly. This will cause the outdoor wireless sensor to stop
transmitting temperature readings. Use lithium batteries in these low temperature
conditions to ensure continued operation for wireless sensors placed outdoors.
NOTE: Rechargeable batteries are not recommended due to higher operating
voltages.
Alkaline Batteries: -28.8°C to 60°C (-20°F to 140°F)
Lithium Batteries: -40°C to 60°C (-40°F to 140°F)
Temperatures below -28.8°C (- 20°F)
require Lithium batteries in the outdoor transmitter
LCD Display:
Indoor temperature:
a. Operating temperature range = 0 °C to 50 °C (32 °F to122 °F)
b. Accuracy ± 1 degrees Celsius 0 °C to 50 °C (32 °F to122 °F)
c. Resolution = 0.1 degree Celsius
d. When above 50 °C (122 °F) the temperature sensor should continue to read the
correct temperature as long as the LCD display continues to function
e. When below 0 °C (32 °F) the temperature sensor should continue to read
correctly as long as the LCD display continues to function
Indoor Humidity:
a. Operating humidity range =1% RH to 99%
30. Wireless signal indicator
(Flashes when data is being sent to
the display unit)
31. Integrated hang hole
32. RESET button
33. Compartment 2xAAA batteries
(batteries not included)
Full-display
Normal display
b. Accuracy +/- 5% RH (@25oC, 30%RH to 80%RH)
c. Accuracy +/- 8% RH (@25oC, 20%RH to29%RH8; 0%RH to 95%RH)
d. Accuracy +/-12% RH (@25oC, 1%RH to 19%RH; 96%RH to 99%RH)
e. Resolution = 1 % RH
Outdoor temperature:
a. Operating temperature range = -40 °C to 60 °C (-40 °F to 140 °F)
b. Accuracy ± 1 degrees Celsius from 0 °C to 50 °C (32 °F to122 °F)
c. Accuracy ± 2 degrees Celsius from -20 °C to 0 °C (-4 °F to 32 °F) and
50 °C to 60 °C(122 °F to 140 °F)
d. Accuracy ± 4 degrees Celsius from -40 °C to -20 °C (-40 °F to -4 °F)
e. Resolution = 0.1 degree Celsius
f. When above 60 °C (140 °F) the temperature sensor should continue to read the
correct temperature as long as the LCD display continues to function
g. When below-40 °C (-40 °F) the temperature sensor should display continue to
read correctly as long as the LCD display continues to function
Outdoor Humidity:
a. Operating humidity range =1% RH to99%
b. Accuracy +/- 5% RH (@25oC, 20%RH to 90%RH)
c. Accuracy +/- 8% RH (@25oC, 20%RH to 30%RH; 80%RH to 95%RH)
d. Accuracy +/-12% RH (@25oC, 1%RH to 19%RH; 96%RH to 99%RH)
e. Resolution = 1 % RH
Indoor Comfort Display:
Indoor Comfort Display as blow:
a. Dry: when the temperature at any value less than 45% humidity
b. Comfort: When the temperature at 24-27.9 °C, humidity of 45-75%
c. Wet: Value at any temperature, humidity greater than 75%
No show: When the temperature is not 24-27.9 °C, humidity of 45-75%
Barometric Pressure:
a. Measure range=800mb to 1100mb
b. Resolution=1mb
c. Measuring time interval: every 12 minutes
Default setting:
a. Time:00:00
b. Date/Day: Jan 1st, 2017, SO
c. Temperature: ºC
d. Weather forecast icons: Partly sunny
Operations:
Power On:
1. Display full segment for 2 seconds.
2. The RF turn on and searching other wireless sensor via RF433
3. If the outdoor temperature is not displayed after 3 minutes, hold the
"DOWN" button on the main unit to search for outdoor sensor. Then press
the TX button on the sensor to send signal. If it still does not receive the outdoor
temperature, remove AC power and batteries from the receiver, remove the
batteries from the transmitter and go back to step 1 of the set up
Display / Keys Details:
There are totally 7 keys for the alarm clock, they are included: SET, UP, DOWN,
ALARM, ALERT, HEAT/DEW, SNZ/LIGHT
1. SET buttons:
Press and hold for 3 seconds during normal mode to enter setting mode.
Press SET button during normal mode to open DST function, press it again to
close DST function.
2. UP buttons:
a. Press to increase the setting value during setting.
b. Press and hold 2 seconds button for fast adjust during setting mode.
c. In normal display mode, press this button to display maximin
temperature/humidity.
d. Press and hold 2 seconds to clear max or min temperature/humidity memory.
3. DOWN button:
a. Press to decrease the setting value during setting.
b. Press and hold 2 seconds button for fast adjust during setting mode.
c. In normal display mode, press and hold to search RF.
d. In normal display mode , Press and Release this button to check barometer
history for 12H ago.
4. ALARM button
a. Press and release the ALARM button once to show alarm time.
b. Press and release the ALARM button once to open or close time alarm when
the alarm time is displaying.
c. Press and hold for 2 seconds enter alarm setting mode
5. ALERT button
In normal mode, press the ALERT button to toggle between the alerts of outdoor
temperature "High" and "Low" and indoor temperature "High" and "Low".
Press UP to activated the alert and a bell icon
or "Low", press DOWN to deactivate the alert and the bell icon
If user hold this button for 2 seconds to enter outdoor temperature value for
high alert. The temperature will blink, the user uses the UP and DOWN buttons
to adjust the desired value. Once is set to the right value the user must press
the ALERT to confirm.
will be display under to "High"
will disappear.
